Journal Operation pane components

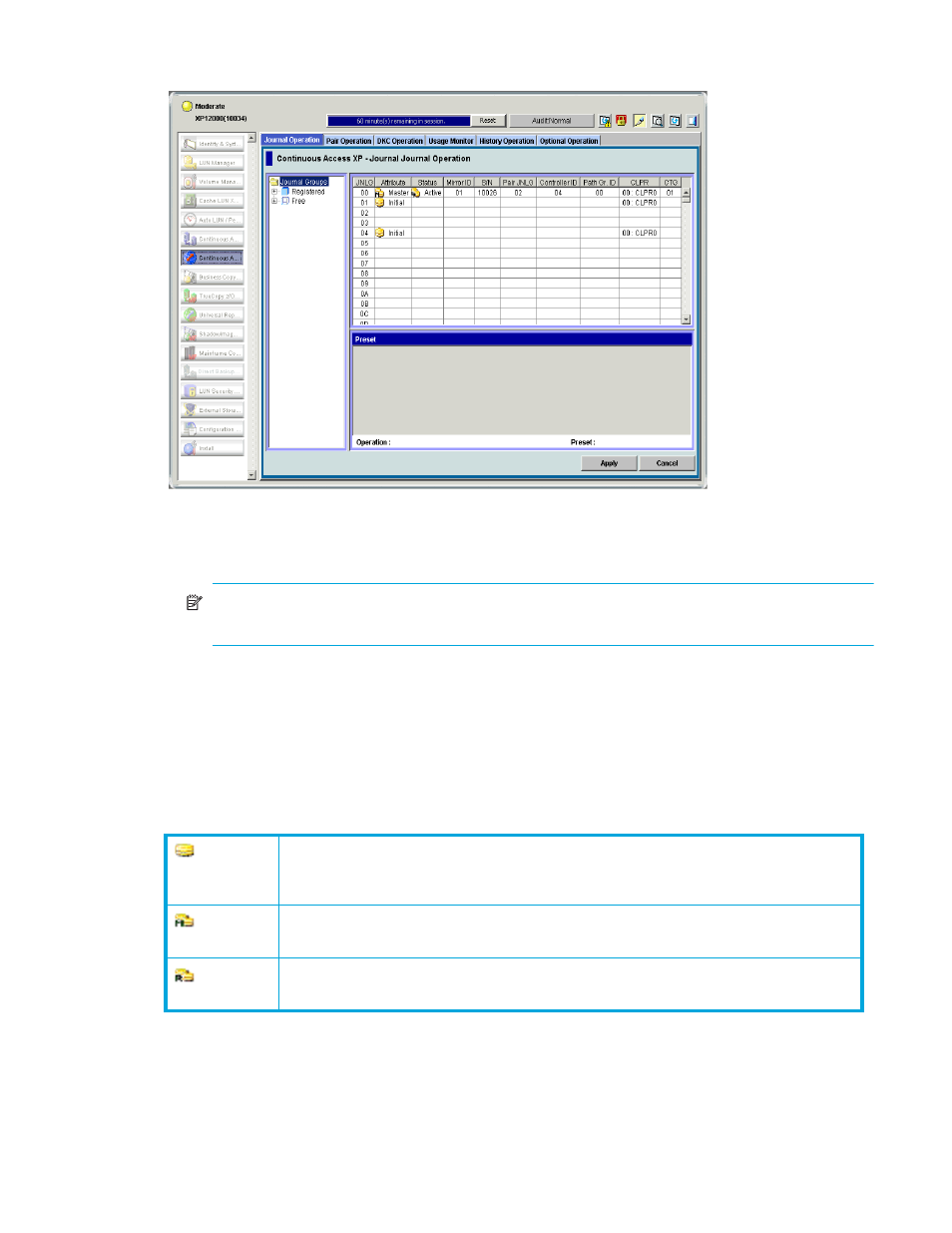

Figure 44 Journal Operation pane
The Journal Operation pane displays the following:
• Tree: Lists journal groups in the local disk array you are logged into.
NOTE: The tree displays journal groups used with Continuous Access XP Journal, and does not
display journal groups used with UR390 (Universal Replicator for z/OS).
• Journal Groups: Located at the top of the tree. When selected, the upper-right list displays journal
groups in the local disk array.
• Registered: When selected, the upper-right list displays the journal groups in which journal volumes
are registered.
When you double-click this item, the tree displays journal groups in which journal volumes are
registered. When you select a journal group in the tree, information about the journal group
appears in the upper-right list.
The journal group icons are:
• Free: When selected, the upper-right list displays the journal groups in which no journal volumes are
registered.
When you double-click this item, the tree displays the journal groups in which no journal volumes
are registered.
For more information, see ”
Registering journal volumes in journal groups ” on page 92.
Initial A journal group in initial status.
Journal volumes are registered in this journal group, but no data volumes (primary or secondary
volumes) are registered in this journal group.
Master A master journal group.
Journal groups and primary volumes are registered in this journal group.
Restore A restore journal group.
Journal groups and secondary volumes are registered in this journal group.
