Continuous Access XP Journal user guide 81
• Remote disk array’s serial number.
• Remote disk array’s controller ID.
NOTE: The controller ID for an XP10000/XP12000 disk array is 4.
• Path group ID. The path group ID is within the range of 1-FF (hexadecimal). Up to 64 path group
IDs can be registered per disk array.
NOTE: In the current version, the path group IDs always take the default values and cannot be
changed.
8. In the Add DKC pane, select a primary and remote disk array port to configure a logical path.
9. Click Option.
10. In the DKC Option pane, configure logical path and disk array options. For more information about the
options, see ” Changing options for logical paths and disk arrays ” on page 82.
11. Click Set to close the DKC Option pane.
12. In the Preset list, check the settings you made.
• To modify a setting, select and right-click the setting from the Preset list, and select Modify. A pane
appears where you can modify the setting.
• To cancel a setting, select and right-click the setting in the Preset list, and select Cancel.
13. Click Apply to apply the settings.
NOTE: If an error occurs, the right-most column of the Preset list displays the error code. To view
detailed information about the error, right-click the error code, and select Error Detail. An error
message appears providing detailed information about the error.

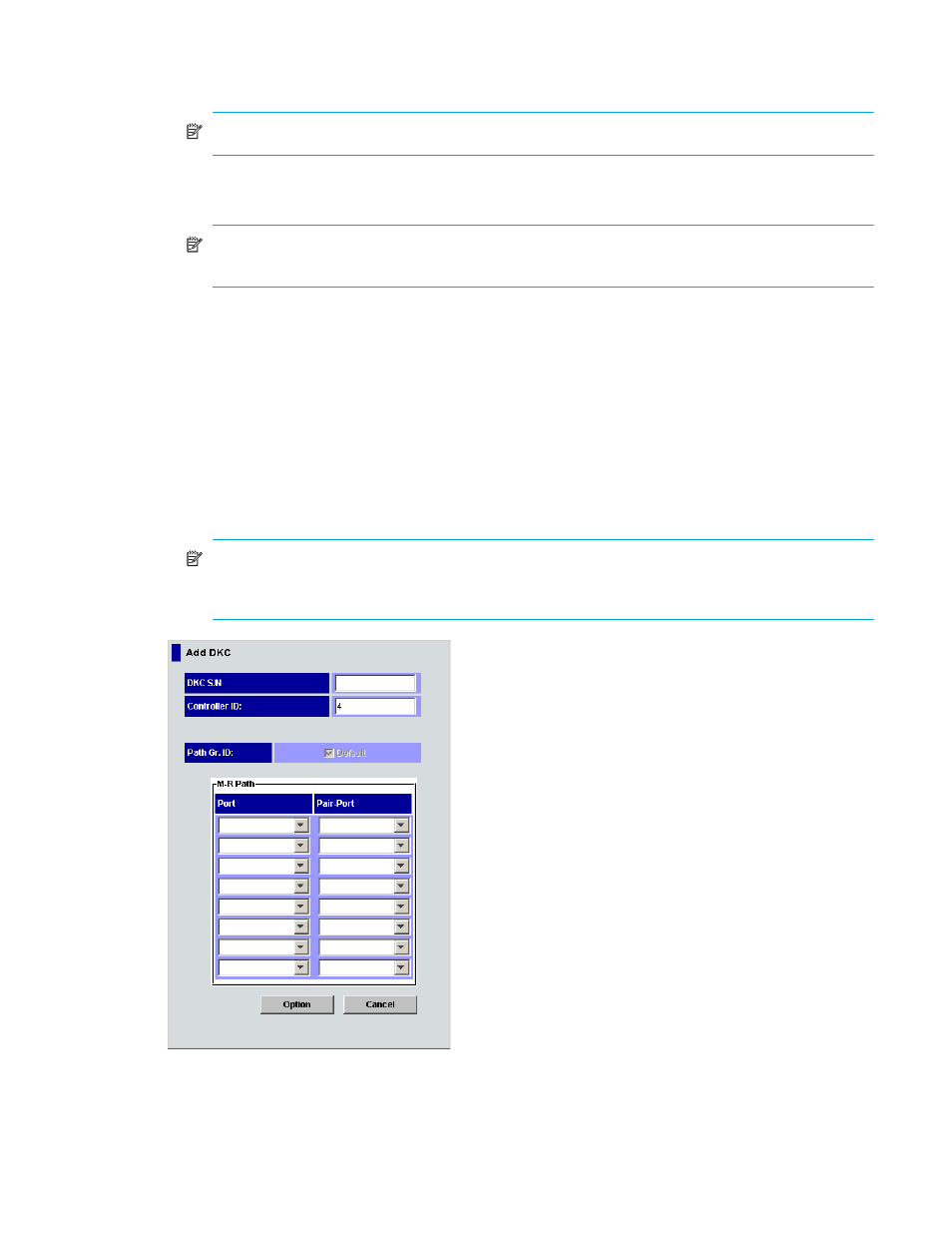

Figure 39 Add DKC pane
The Add DKC pane displays the following:
• DKC S/N: Enter the remote disk array’s five-digit serial number.
• Controller ID: Enter the remote disk array’s controller ID (that is, disk array family ID).
