146 Continuous Access XP Journal
3. Format the journal volume using the LDEV format function of Volume Management. For instructions on
formatting the volume, see the HP StorageWorks LUN Configuration and Security Manager XP User
Guide for the XP10000/XP12000.
4. Register the formatted volume (or another volume that can be used instead of the formatted volume) in
the journal group (see ” Registering journal volumes in journal groups ” on page 92).
• If you do not need to resume copying, the procedure is finished.
• To resume copying, continue to restore the mirror to which the journal group belongs (see ”
Restoring
mirrors (Pairresync: resuming copy operations) ” on page 104).
SIM reporting
The local disk array generates service information messages (SIMs) to notify you of possible disk array
service requirements. SIMs can be generated by the disk array’s channel and storage path
microprocessors and service processor (SVP). The SVP reports all SIMs related to Continuous Access XP
Journal processing. Each time a SIM is generated, the amber Message LED on the disk array’s control
panel (under the Ready and Alarm LEDs) turns on as an additional alert.
SIMs are classified according to severity for reporting and logging purposes: service, moderate, serious, or
acute. All SIMs are recorded on the disk array’s SVP and displayed on Command View XP computers or
XP Remote Control. You can find SIMs in the Command View XP or XP Remote Web Console Status pane.
SIMs the primary disk array generates include the primary data volume’s device ID (byte 13). SIMs the
secondary disk array generates include the secondary data volume’s device ID (byte 13).
NOTE: For more information about SIM reporting, contact your HP account support representative.
If SNMP is installed and operational for the local disk array, each SIM results in an SNMP trap being sent
to the appropriate hosts. For more information about SNMP operations, see the HP StorageWorks
Command View XP User Guide for XP Disk Arrays or the HP StorageWorks XP Remote Web Console User
Guide, or contact your HP account support representative for assistance.

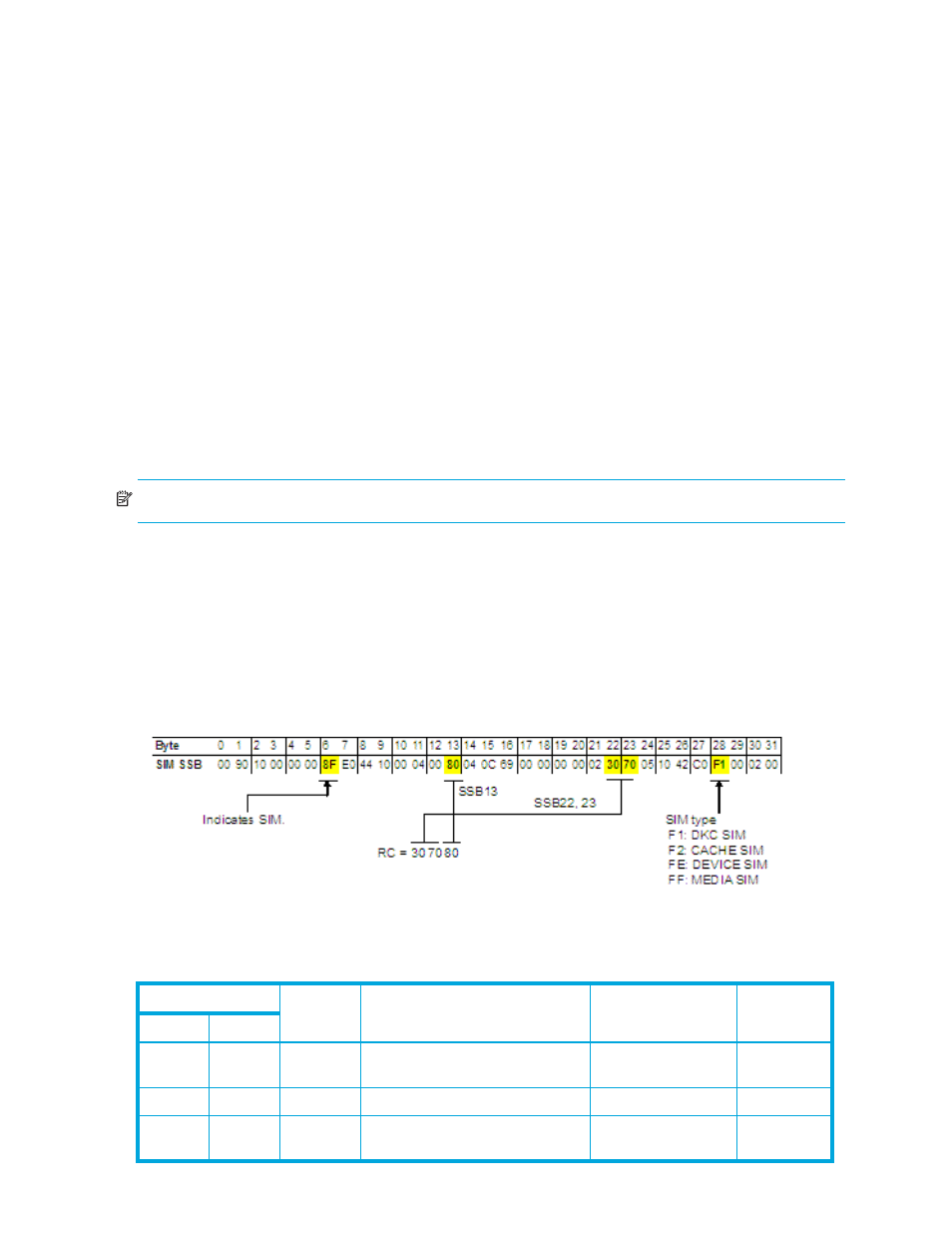

Figure 64 shows a typical 32-byte SIM from the local disk array. The six-digit reference code (RC) consists
of bytes 22, 23, and 13. The RC identifies the possible error and determines the severity. The SIM type
(byte 28) indicates the component that experienced the error. When the value of byte 22 is 21, the SIM is
a control unit SIM. When the value of byte 22 is Dx (where x is an arbitrary character), the SIM is a device
SIM.
Figure 64 Typical SIM showing reference code and SIM type
Table 32 illustrates the severity of SIMs. The table also shows SVP log files.
Table 32 Typical SIM showing reference code and SIM type
Reference code Severity Description SIM generated by SVP log file
Byte 22 Byte 23
21 80 Moderate Logical path is blocked due to a
failure.
Secondary disk array SIM Log
21 81 Service Logical path is restored. Secondary disk array SSB Log
21 82 Moderate Line failure reported by the
extender.
Secondary disk array SIM Log
