9.WAVEFORM DISPLAY
70
9. WAVEFORM DISPLAY

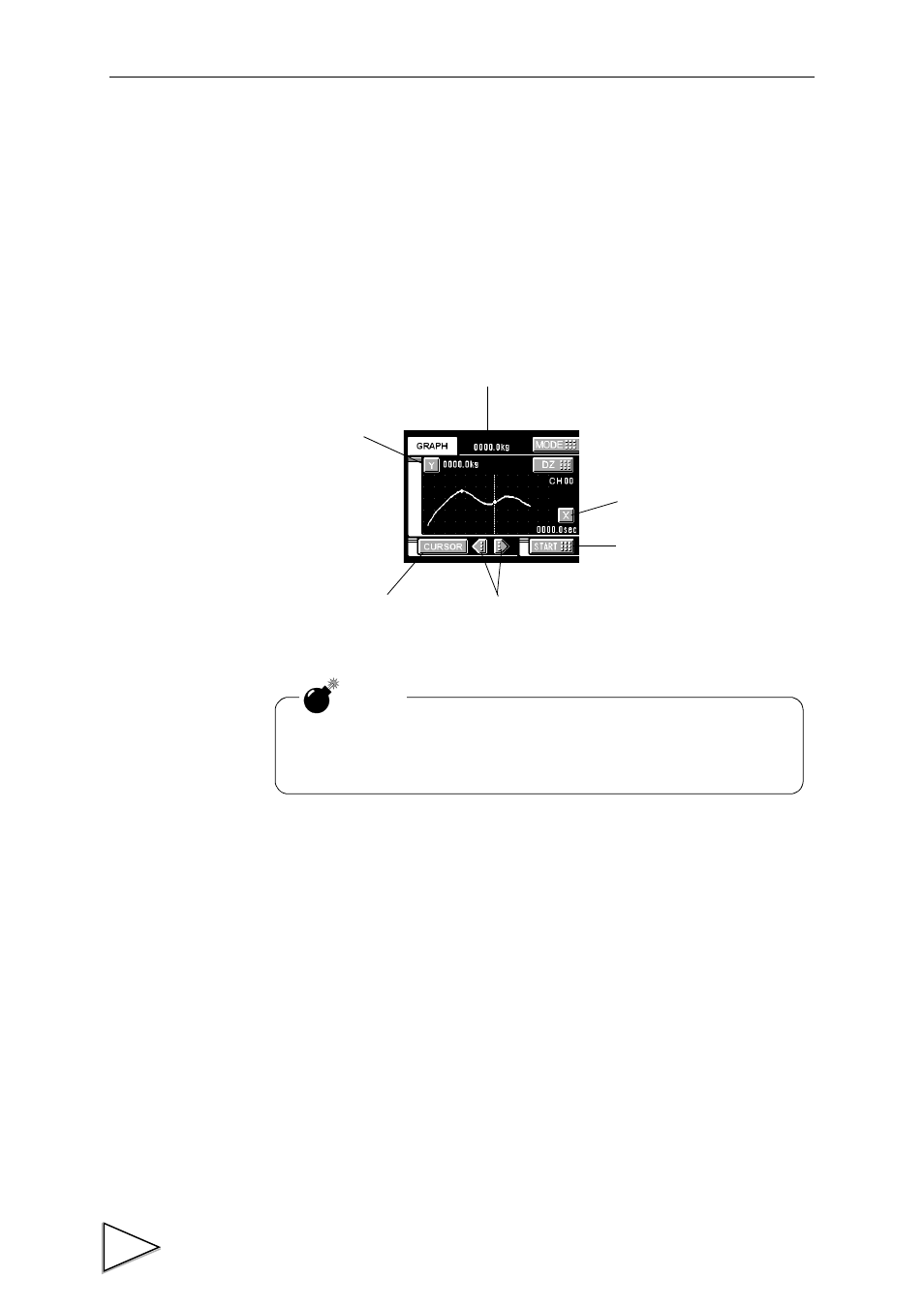

9-1. Graphic Display Screen
Graph is updated while usually operating on the display screen (a comparison ,a hold
,graph ).
X-axis (time axis)
Graphic display START/STOP
Cursor move keys (The cursor moves on the X-axis.) Cursor ON/OFF key
Y-axis (load axis)
Caution
When the cursor display is on and when the setting screen is
open, the graph is not upgraded.
Indicated value display (At cursor ON time, the cursor
point (green) value is displayed.)
