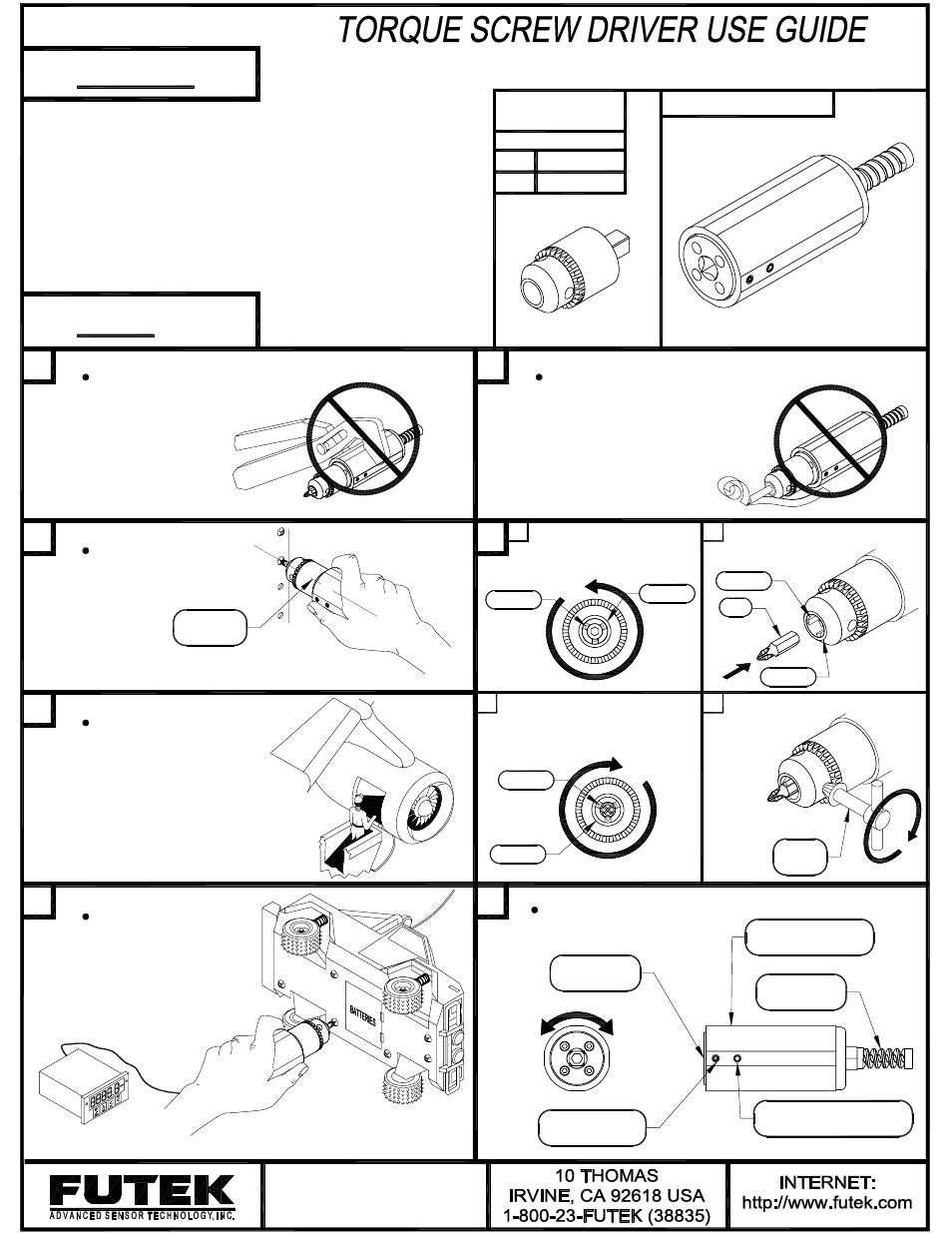

FUTEK TAT430 Series - Manual

TORQUE SCREWDRIVER
IS USED ANYWHERE
YOU NEED OR DESIRE
PRECISION IN ASSEMBLY
OR MAINTENANCE
This drawing is submitted solely for the information and
exclusive use of the original addressee. It is not to be divulged
in whole or in part, by any firm or individual without written
permission from FUTEK
DO NOT USE
WRENCH OR
OTHER DEVICES
TO BOOST
LEVERAGE.
Drawing Number: F3189
CAUTIONS
IN USE
1) DO NOT PULL ON OR CARRY TORQUE SENSOR BY CABLE.
2) ANY TAMPERING OR REMOVAL OF COVER, CABLE,
CONNECTOR AND/ OR OVERLOAD STOP WILL VOID
WARRANTY.
3) ALWAYS HAVE SENSOR PLUGGED IN DURING
USE TO MONITOR OUTPUT TO AVOID PERMANENT
ZERO SHIFT AND OVER LOAD.
TORQUE SHOULD
BE IN LINE
TORQUE SCREWDRIVER
STANDARD FEATURES
HOLD SCREWDRIVER AND
ROTATE HEAD UNTIL TEETH OPEN
SCREW DRIVER IS FOR
TORQUE PURPOSES ONLY.
DO NOT USE AS A CHISEL,
PRY BAR SCRAPER OR
ANY OTHER USES THAT IT
IS NOT DESIGNED FOR
INSERT DESIRED BIT
HOLD SCREWDRIVER AND
ROTATE HEAD UNTIL TEETH CLOSE
ON BIT
HOLD SCREWDRIVER
AND HAND
TIGHTEN
BIT
WITH
CHUCK
KEY
TEETH
TEETH
BIT
CHUCK
KEY
TEETH
FRONT
FRONT
FRONT
KNURLED SURFACE
FOR SURE GRIP
3/8" SQUARE
DRIVE
SET SCREW TO
SECURE CHUCK
SCREW DRIVER ASSEMBLY FUTEK OPTIONAL
CHUCK ASSEMBLY
ACCESSORY NO.
F1416
1 2
3 5
4
6 7
F2995
1/16 to 3/8" Dia. BIT
5/64 to 1/2" Dia. BIT
A
C
B
D
TORQUE
SCREWDRIVER
COMES IN LOW
CAPACITIES FOR
PLASTIC OR LIGHT
APPLICATIONS
OVERLOAD PROTECTION
ON LOWER CAPACITIES
FLEX RELIEF
FOR CABLE
AXIS OF
ROTATION
