16.D/A CONVERTER(OPTION)

104

How to output adjust

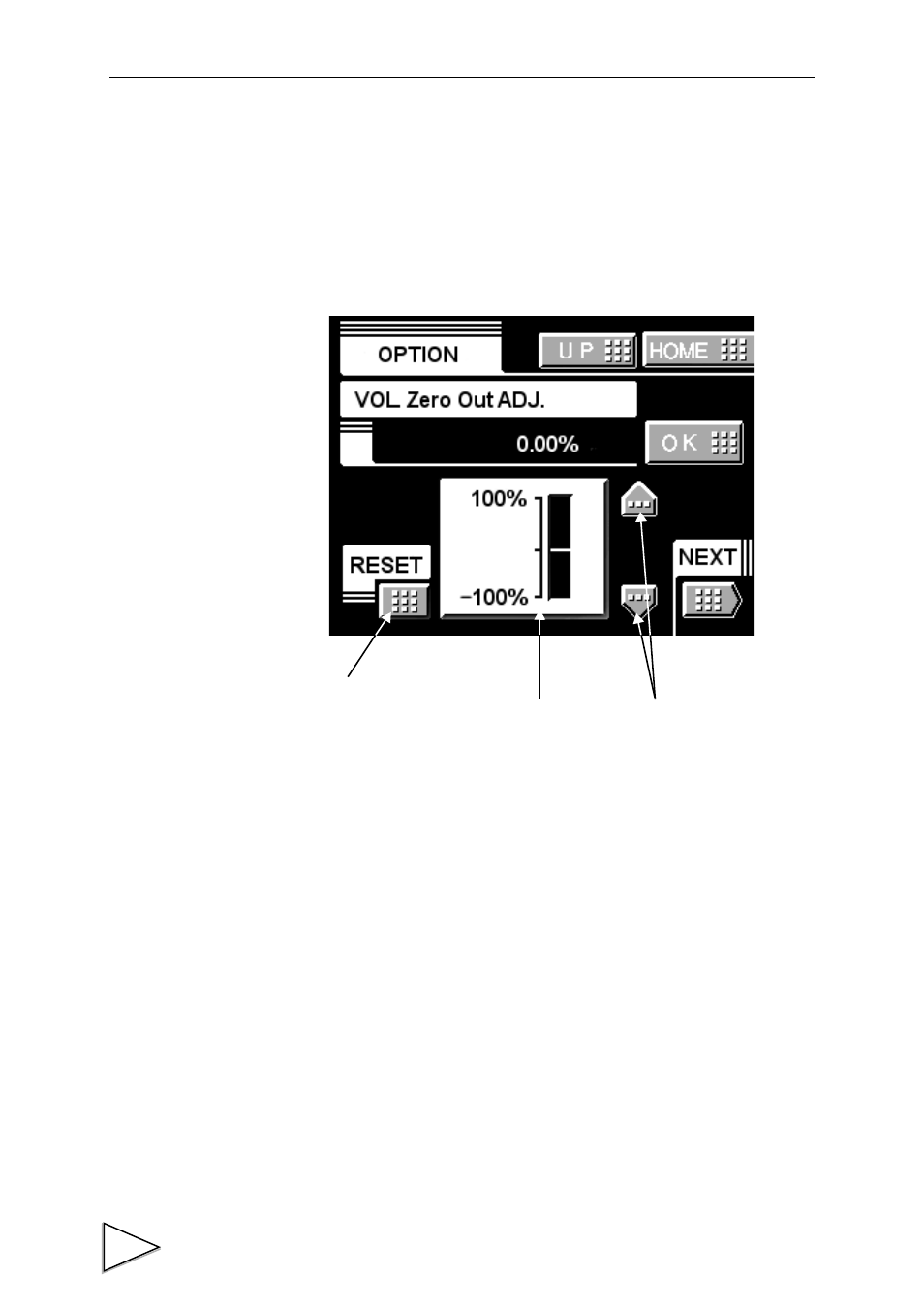

Adjust the output with the dummy trimmer that appears on the adjustment screen after

selecting each fixed output in the D/A output mode setting and pressing the [OK] key.

While monitoring the output value, finely adjust the output with the dummy trimmer UP/

DOWN keys, and press the [OK] key to confirm, so that the trimmer position is entered.

*Pressing the dummy trimmer UP/DOWN keys continuously performs continuous

operation.

*The trimmer adjusting ranges are as follows: voltage output; about ±2.0V, and current

output; about ± 1.6mA.

*The reset key resets the dummy trimmer position to the trimmer center point (0%).

Reset key

Dummy trimmer
position indicator

Dummy trimmer adjustment
UP/DOWN keys
