16.D/A CONVERTER(OPTION)

102

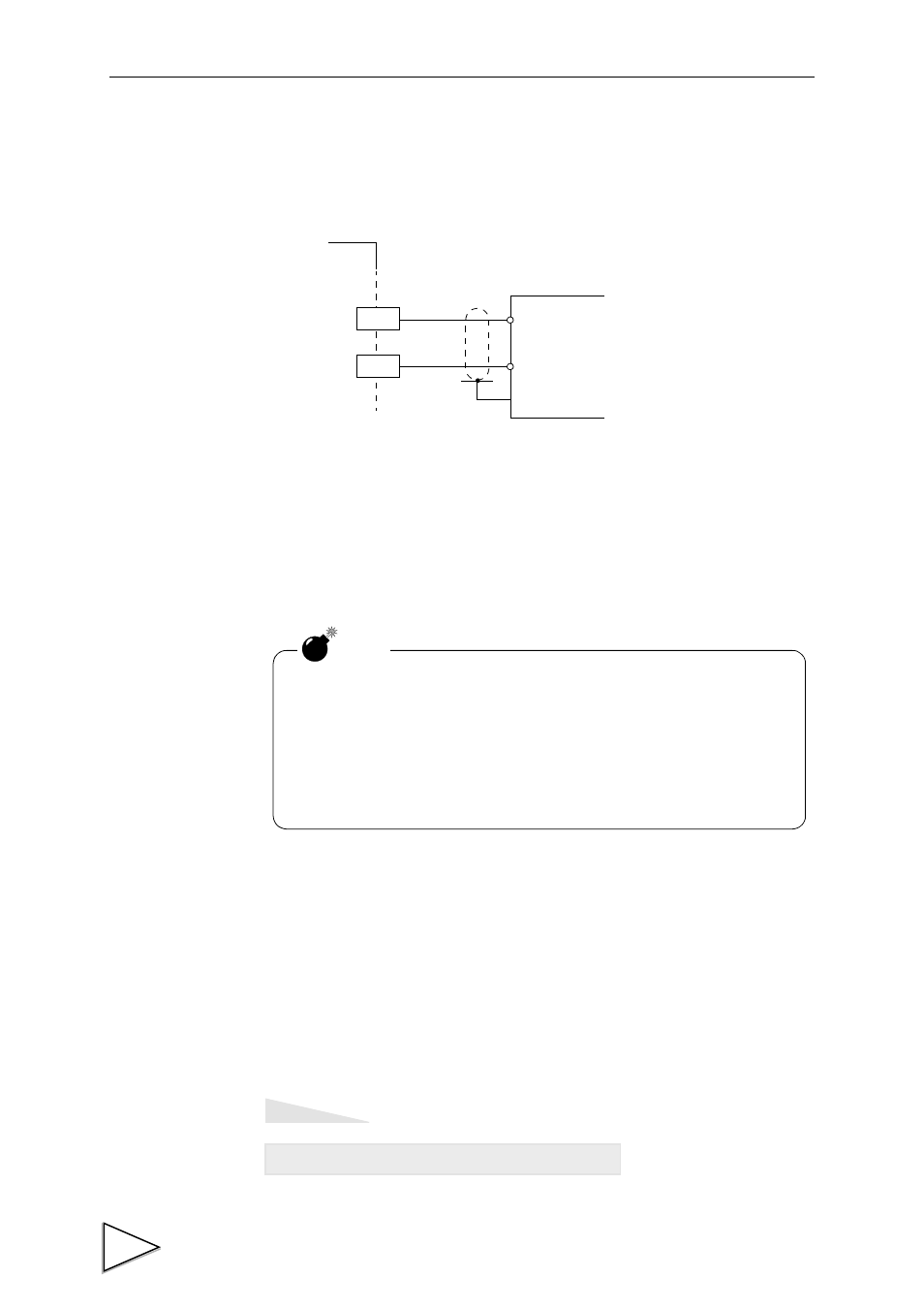

- Taking current output signals

Connect external equipment (350

or less load resistance) to CUR and G of the F371.

- Resolution

The D/A converter has a resolution of 1/10000 to -10 - 10V (4 - 20mA).

16-1. Voltage Zero and Full Scale, Current Zero and Full Scale

Setting range: -99999 - 99999 (where zero set value < full scale set value)

Voltage zero: Set the indicated value for the time of output of 0V.

Voltage full scale: Set the indicated value for the time of output of 10V.

Current zero: Set the indicated value for the time of output of 4mA.

Current full scale: Set the indicated value for the time of output of 20mA.

How to set

External equipment

Load resistance
350

or more

SIG

GND

Inside Outside

CUR

G

F371

NOTE

* The D/A converter is optional.

* Do not apply external voltage because it will break.

* Do not short-circuit the voltage output because a failure will

occur.

Also, connecting a capacitive load may cause oscillation.

Setting call

Page 1

Option
