6.COMPARISON FUNCTIONS
43

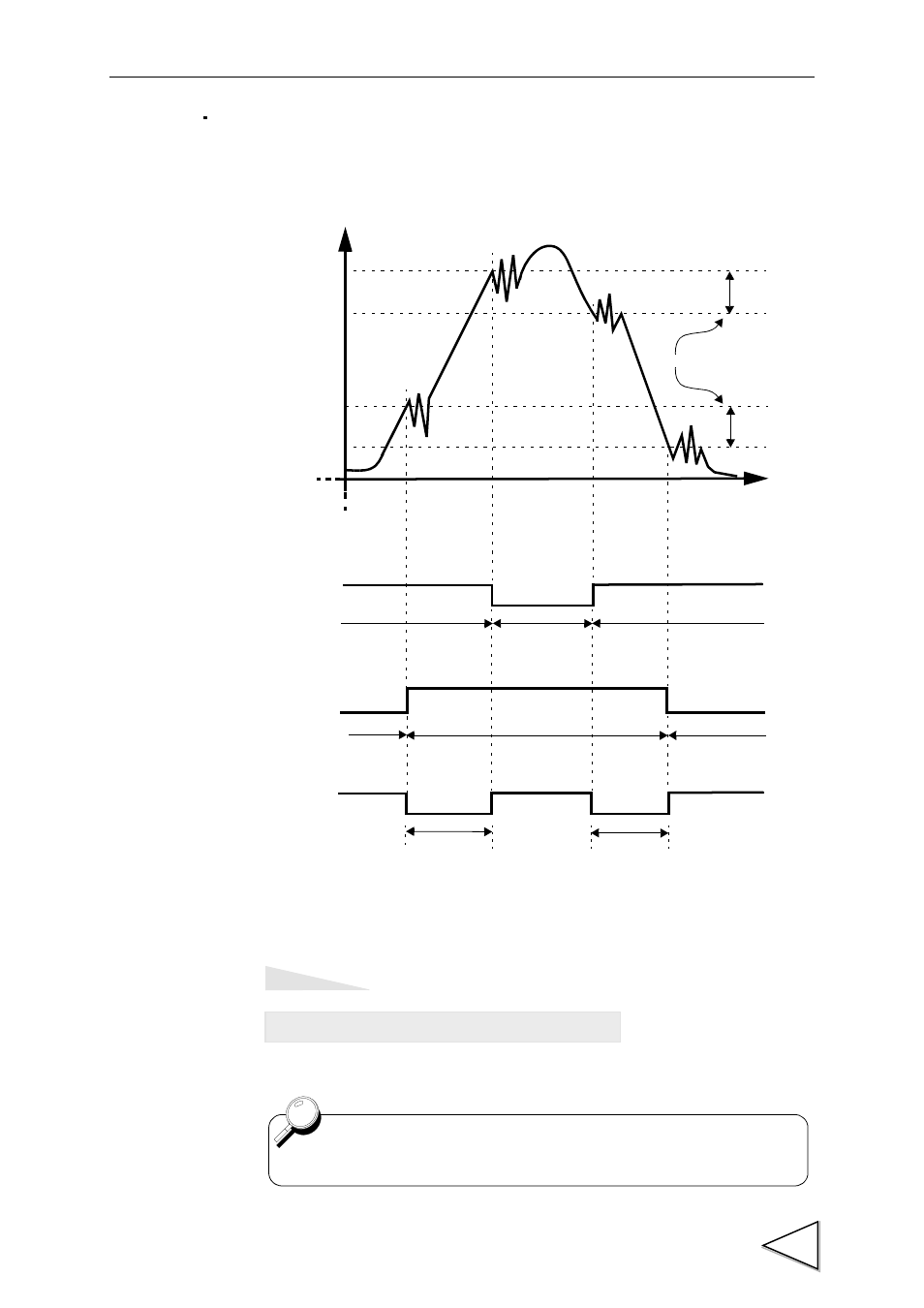

Hysteresis operation
How to set
HI Limit
LO Limit
0
Hysteresis Range
Time
HI Output
HI Status Display
LO Output
LO Status Display
OK Status Display
Output ON
Status ON
Output OFF
Status OFF
Status ON Status ON
Output ON
Status ON Output ON
Status ON
Output OFF
Status OFF Output OFF
Status OFF
Indicated Value
OK Output
(Exsample HI Output and LO Output and OK output)
Value
Value
Setting call Page 1 Comparison setting
Hysteresis setting value is common to all HI limit value.
