3.CONNECTION
14

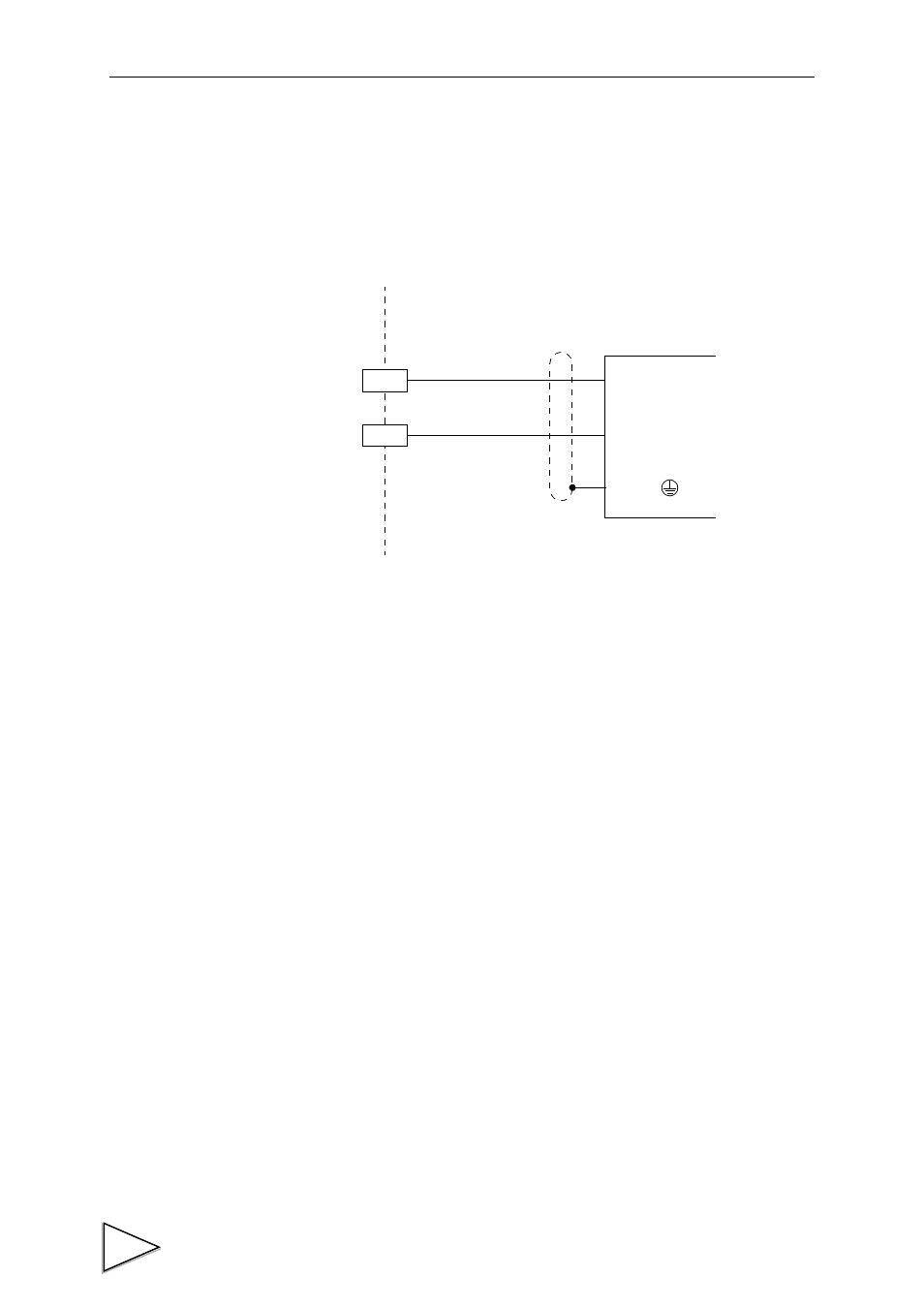

3-6. Voltage Output Connection
The voltage output terminal is an interface to extract analog voltage proportional to
sensor signal inputs.
Since the VOL OUT terminal is not insulated from the internal circuit, use a shielded
cable for connection with the external equipment and wire within 2 - 3m.
Do not short-circuit. Doing so will cause a failure.
Do not apply voltage from the outside. Doing so will cause breakage.
+
-
F.G or
External
2
1
SIG
COM
VOL OUT
GND
F371 inside
outside
equipment
