15.RS-485 COMMUNICATION INTERFACE(OPTION)

96

15.

RS-485 COMMUNICATION INTERFACE(OPTION)

15-1. Communication Specifications

- Specifications

Signal level

Based on RS-485

Transmitting distance

Approx 1km

Transmitting method

Asynchronous

Full duplex

Transmitting speed

1200

2400

4800

9600 or 19200bps Selectable

Bit configuration

Start

1bit

Character length

7 or 8bits Selectable

Stop

1 or 2bits Selectable

Parity

None,Odd or Even Selectable

Terminator

CR+LF/CR Selectable

Code

ASCII

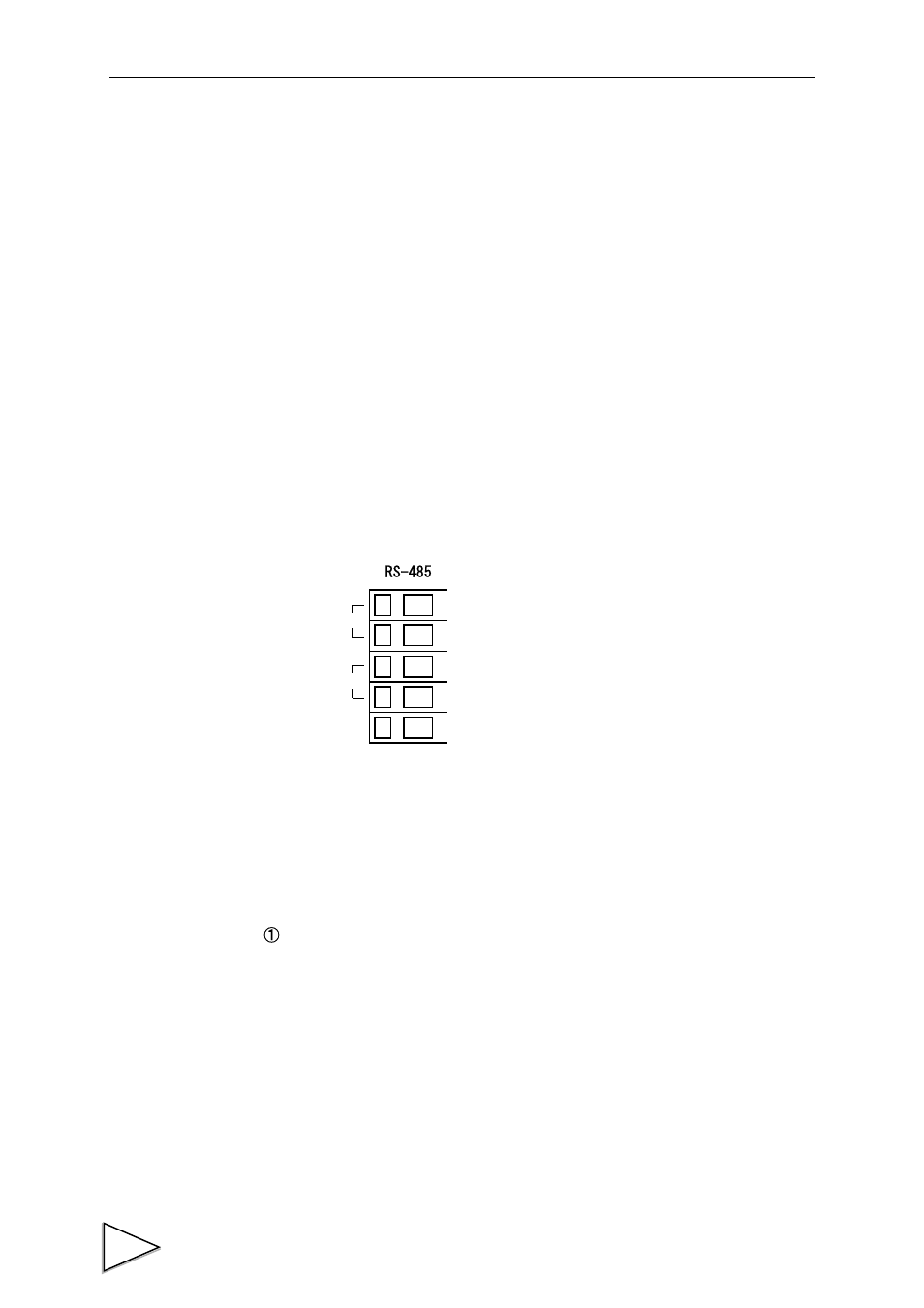

- Connector Pin Assignment

15-2. RS-485 connection

1.Connection of transmitting and receiving lines

4-wire connection

Set the communications mode of the F371 to “4-wire.”

Connect the “SD” (sending side) of the equipment on the other end (master), such as a

programmable controller, to “RD” (receiving side) of the F371 (slave), and “RD” of the

master to “SD” of the F371.

MARK OFF

V

A

-V

B

< -0.2V

SPACE ON

V

A

-V

B

> 0.2V

A

B

A

B

SD

RD

SG
