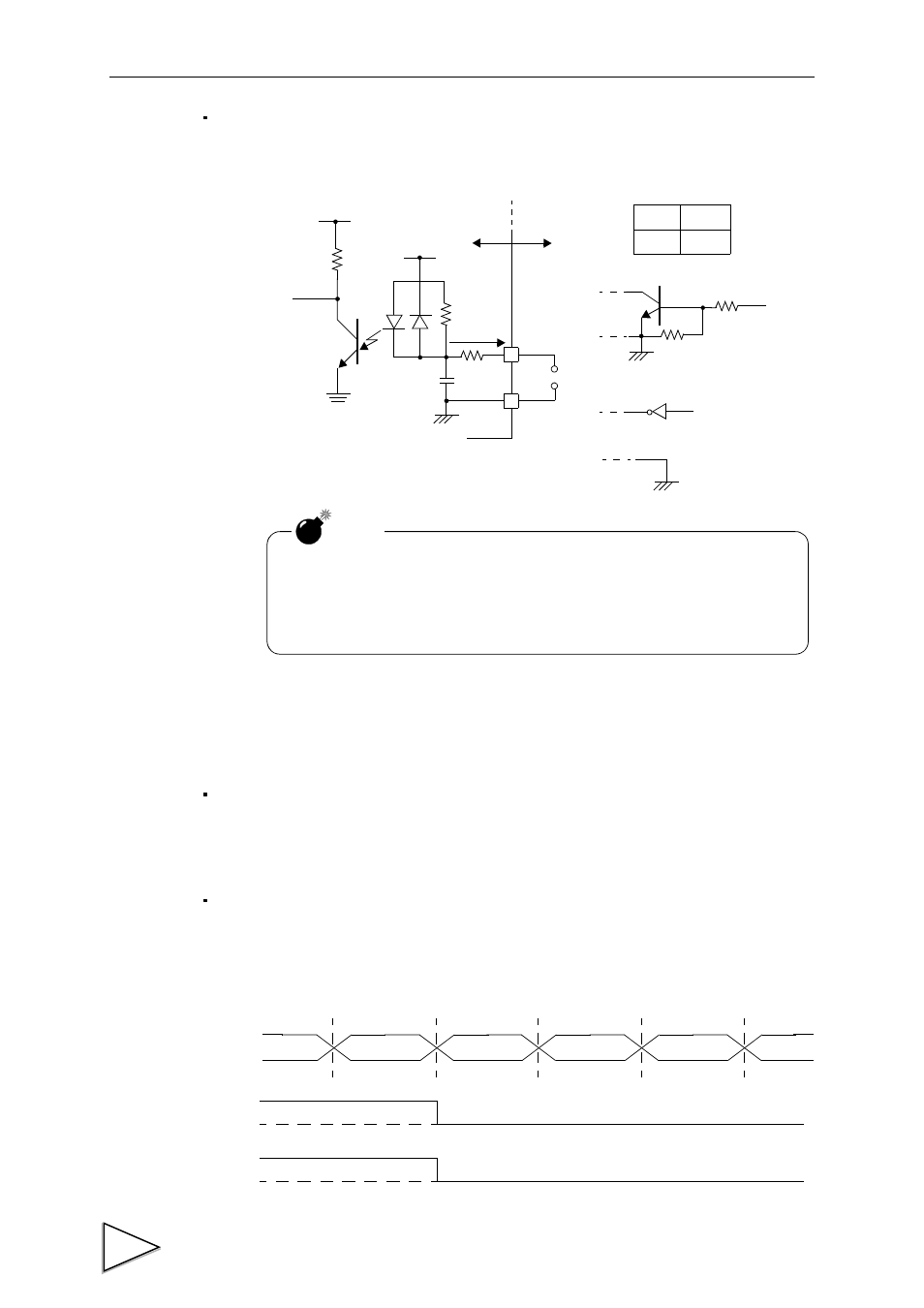

14.BCD DATA OUTPUT(OPTION)

94

Input

14-5. Signal Timing

PC

This signal turns on at the same time as BCD data when stable.

OVER

This signal is outputted at the time of -ADC OVER, +ADC OVER, +overflow or -

overflow.

Vcc

F371

Inside

IC=Approx.6mA

COM

Switch

Transistor

+5V

TTL open collector output

Open OFF

Short ON

NOTE

- Do not apply external voltage to the signal input circuit.

- The external element is required to withstand Ic=10mA.

- Leakage from the external element is required to be 30

A or below.

Outside

0

1

BCDdata

P.C

0

1

OVER
