14.BCD DATA OUTPUT(OPTION)

93

14-2. Logic Change

Select the logic of output signals with pin No. 28.

When COM and pin No. 28 are open: negative logic

When they are short-circuited: positive logic

14-3. BCD Data Hold

The BCD data output signal is held. Switching is carried out by pin No. 27.

When COM and pin No. 27 are open: hold cancel

When they are short-circuited: hold on

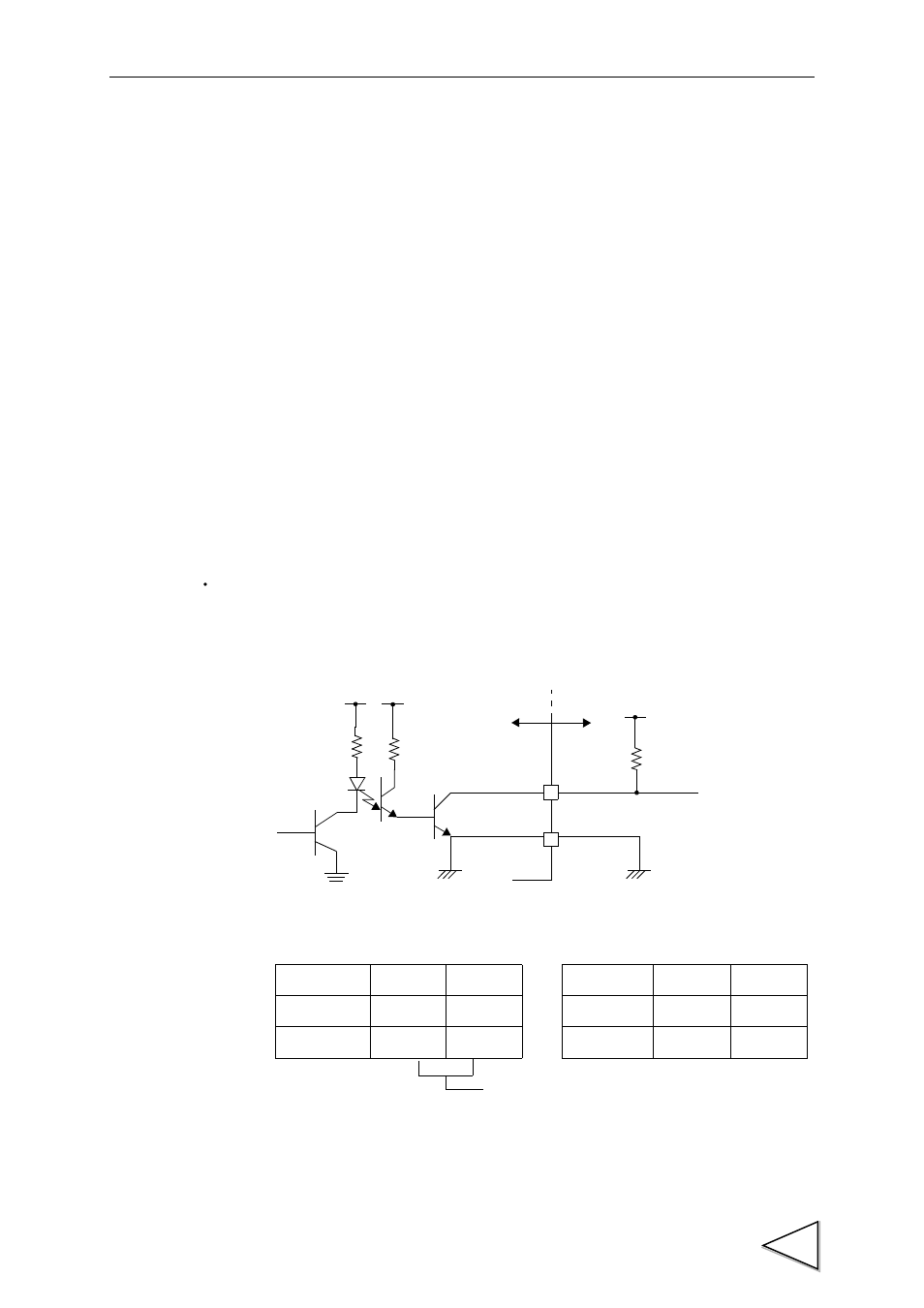

14-4. Equivalent Circuit

Output

The signal output circuit is operated through a TTL open collector.

F371

Inside

Vcc

+5V

COM

Vext

Vceo=30V(max)
Ic =30mA (max)

Internal transistor status

Output data

Negative

Positive

0

OFF

ON

1

ON

OFF

Output pin level

Output data

Negative

Positive

0

1

Through logic switching pin28

Outside
