Select thermocouple type
Background The GDM-8200A series assumes that a certain type of
thermocouple, which reads voltage fluctuation induced
by temperature changes, is used to measure the
temperature.
Parameter Type Range Resolution
K 0 ~ +300°C 0.01°C
T 0 ~ +300°C 0.01°C
J 0 ~ +300°C 0.01°C

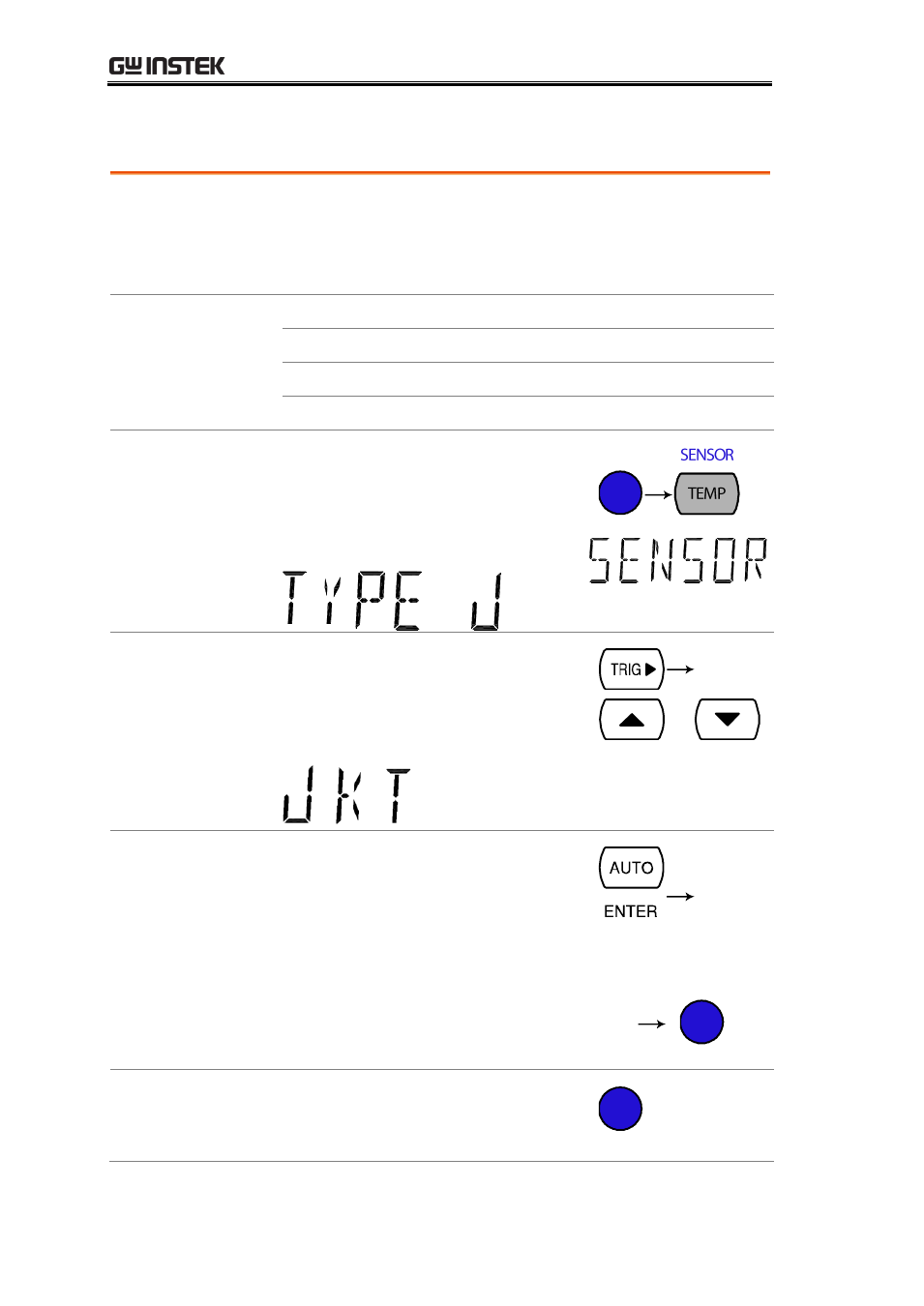

1. Open sensor
selection menu Press the Shift key, then the TEMP
(Sensor) key. The sensor selection
menu appears on the display.
2. Select sensor
type Press the Right key to highlight the
thermocouple type. Press the
Up/Down key. The thermocouple
type switches to the next one.
 
3. Confirm and
go back to the
default display Press the Enter key to confirm the
sensor type. The display will then
automatically switch to the reference
junction temperature setting. Please
refer to Page 39 for related
information. If you don’t need to set
the reference junction temperature,
just press the Exit key to go back to
the default display.
Set Reference
Junction Setting
Or
Cancel setting
the sensor type Press the Exit key to abort setting
the sensor type and go back to the
default display.
(cancel)
