GDM-8200A Series User Manual
32

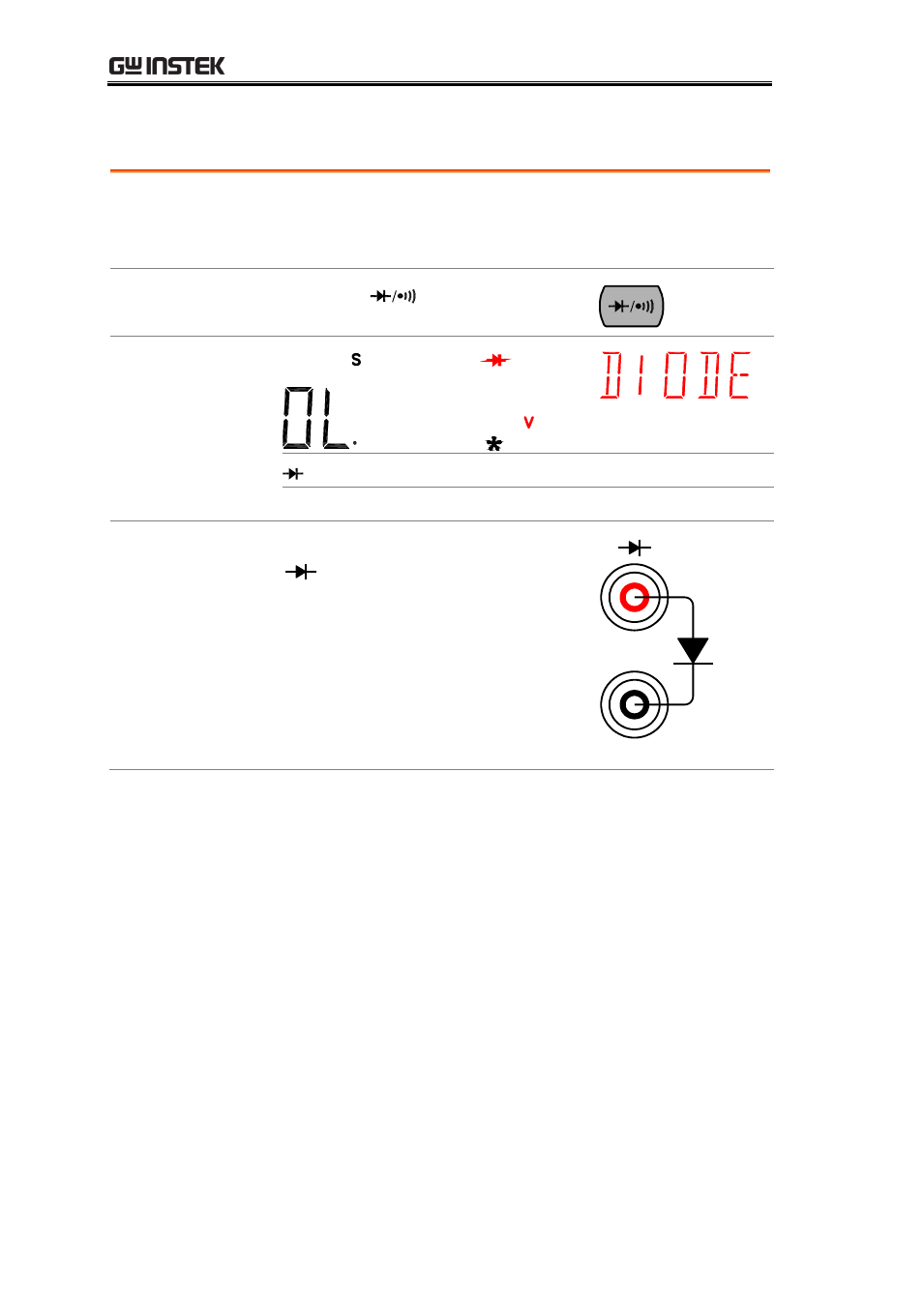

Diode Test
Background Diode test checks the forward bias characteristics of a
diode by running a constant forward bias current, approx.
0.5mA, through the DUT.
1. Activate diode
test Press the key once.
2. Diode mode
display appears
+ V Indicates Diode test
DIODE 2nd display shows the title
3. Connect the
test lead and
measure Connect the test lead between the
and COM port; Anode-V,
Cathode-COM. The display updates
the reading.
COM
