APS-1102A Control Software User Manual

42

7.1

Overview

This chapter uses some examples of creating arbitrary waveforms shown in the Figure 7-1 to help you

understand the basic operations and functions of the "Arbitrary waveform editing tool."

We recommend you to operate the tool while reading this chapter to understand how it works more

easily.

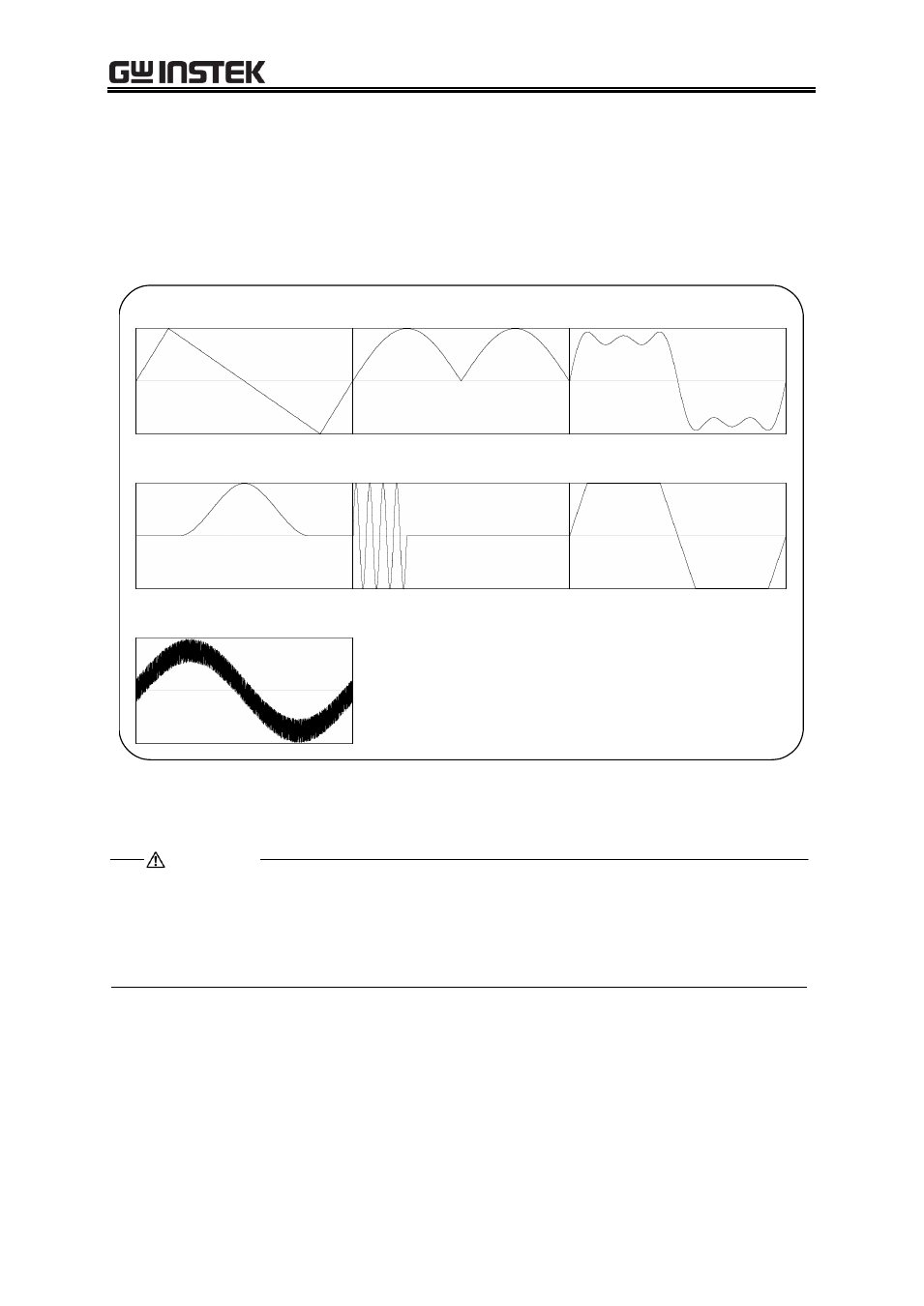

Figure 7-1 Created Arbitrary Waveforms Examples

This software processes wave data with 16 bit (-32768 to +32767) while APS power source with 15

bit (-16384 to +16383). Therefore this software transfers wave data to APS power source after

compressing it into a 15 bit compatible format.

CAUTION
