4.2.5 Output Setting

Set the output-related items. A grayed item is not available in this output mode.

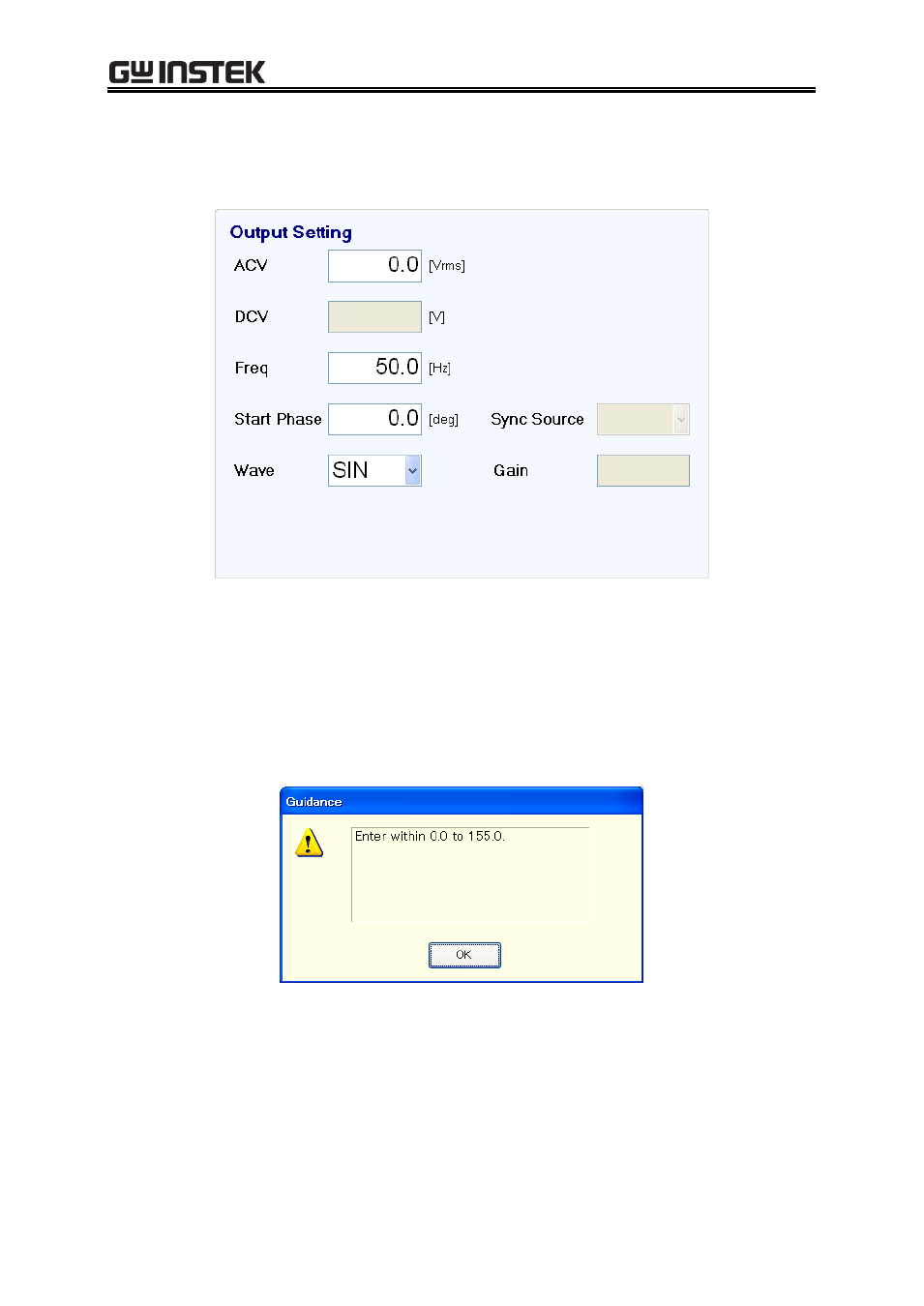

Figure 4-7 Output Setting

In a numerical entry box, if the entered value is out of the setting range, the error dialog opens as shown

in Figure 4-8. Enter a value within the setting range shown in the dialog. The setting range differs by

models. For details of the setting range, see the instruction manual of the APS Power Source. Figure 4-8

is an example of error dialogues on APS-1102A.

Figure 4-8 Example of Setting Range Error Dialog
