5.2.6 Step-execution Parameter Setting
Enter a setting value
Select a cell and then enter a value. If the entered value is out of the setting range, the error dialog
appears. Enter a value according to the dialog.
Enter operation type
When a cell of the setting value in which you can set a operation type is selected, radio buttons for the
operation type (Const, Keep, and Sweep) are enabled. A operation type can be set by selecting the radio
buttons (Figure 5-10). In the cell, the icon corresponding to the setting operation type is displayed.
The Icon coordinates with the setting Change the operation type

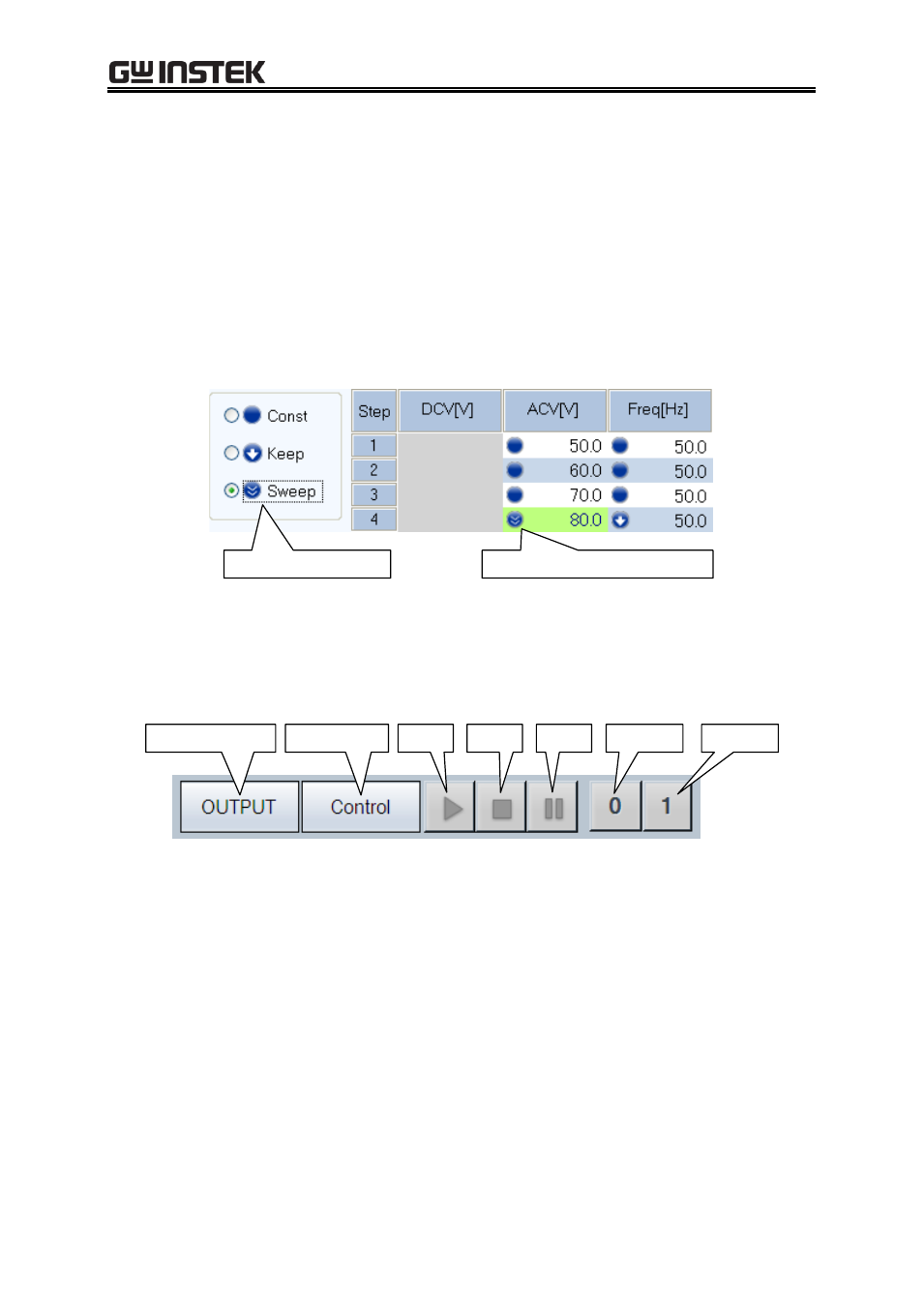

Figure 5-10 Set Behavior Type
5.2.7 Operation Bar
OUTPUT On/Off Control/Edit Start Stop Hold
Branch 0 Branch 1
Figure 5-11 Operation Bar of Sequence
In the Operation Bar of the sequence, you can perform Start, Stop, Hold, Branch 0, and Branch 1 of the
sequence in addition to switching the on/off of the output.
