6 Measurements Logging
39
6.3.3 Start, Stop, and Clear
Start
Following two methods are available.
 From the Menu Bar, select [Logging] - [Start].
 From the Tool Bar, select [Start Logging] icon.
Stop
Following two methods are available.
 From the Menu Bar, select [Logging] - [Stop].
 From the Tool Bar, select Stop Logging icon.
Clear Log
From the Menu Bar, select [Logging] - [Clear Log] to clear logs in the [Measurements Logging]
window. The logged data in the logging file are not cleared.
6.3.4 Logging Conditions
Sets the measurements log file and a logging interval. From the Menu Bar, select [Set] - [Logging
Condition] to display the [Logging Setting] dialog.

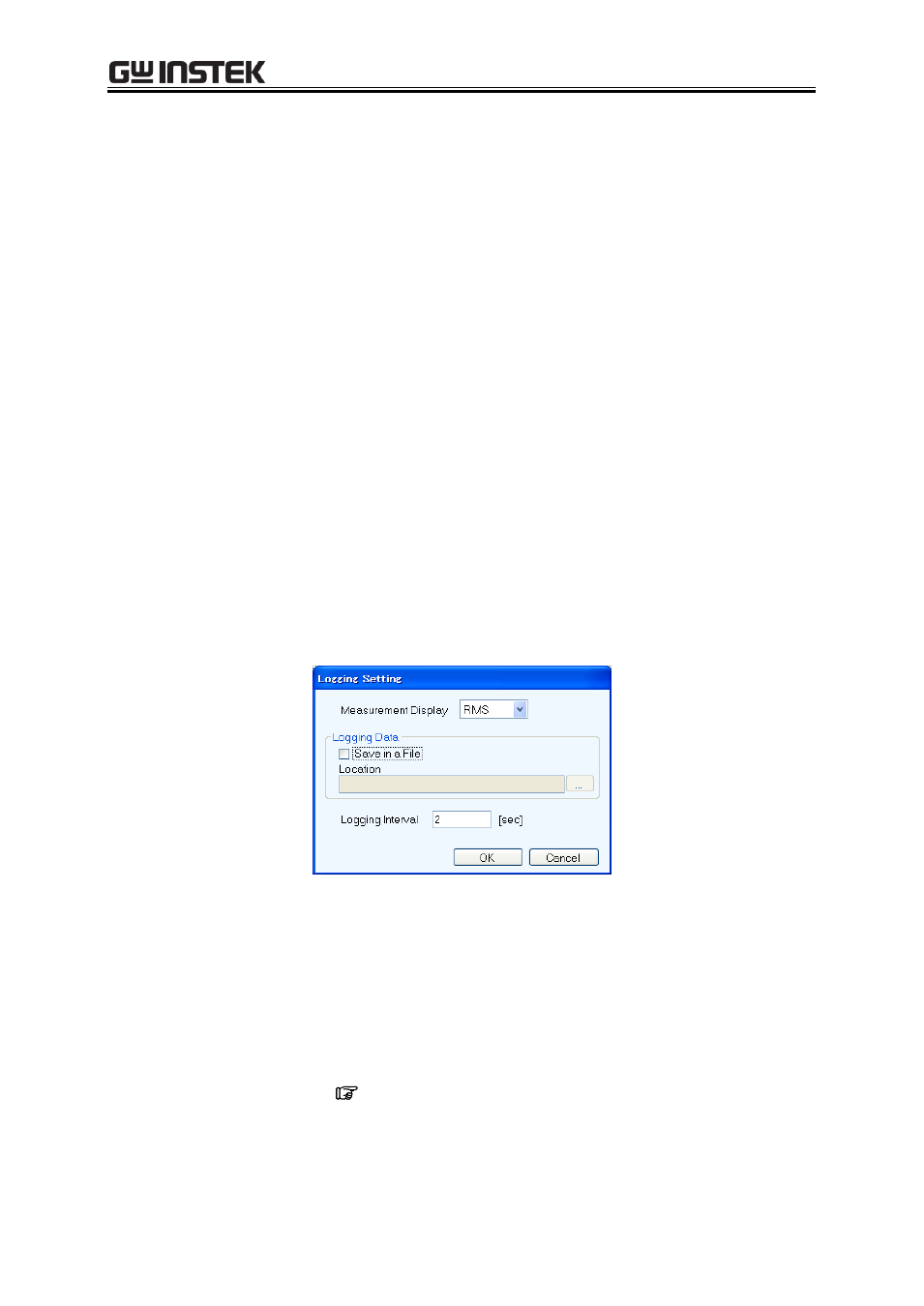

Figure 6-4 Logging Setting Dialog
Measurement Display
This selects the measurement display selection.
Save in a File
When the [Save in a File] check box is selected, the measurements log file is created and saved to the
folder specified in [Location] ( 6.5).
Location
Specifies a folder to save the measurements log file.
