REMOTE CONTROL
31

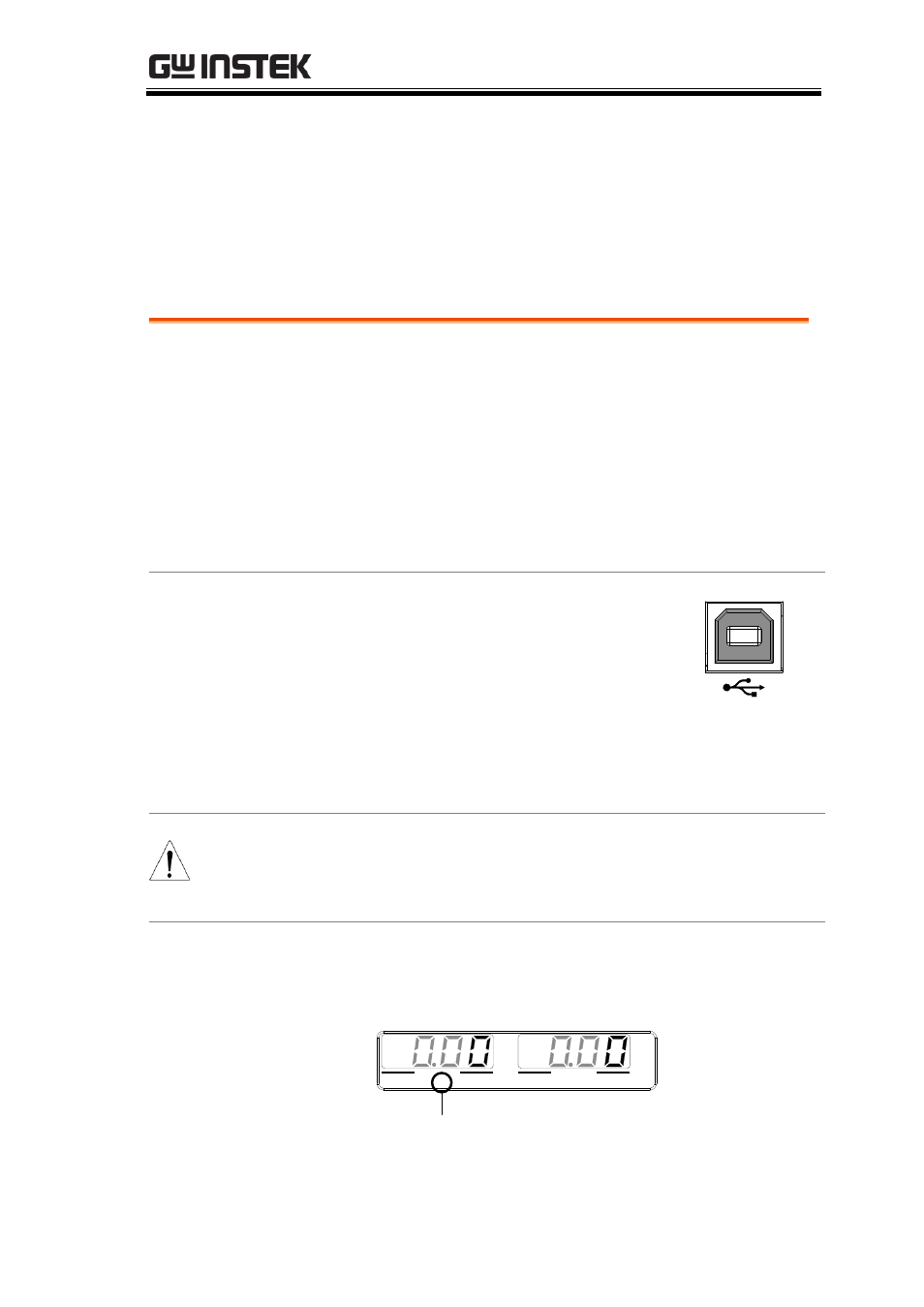

Interface Configuration
USB Remote Interface
Configuration
USB
Configuration
PC side
connector
Type A, host
PSU side
connector
Rear panel Type B, slave
Speed
1.1/2.0 (full speed/high speed)
USB Class
CDC (communications device
class)
Steps 1. Connect the USB cable to the rear
panel USB B port.
2. Change the Rear panel-USB (F-22)
setting to 2 (Auto Detect Speed) or
1 (USB Full Speed).
Page 21
Note
If you are not using the rear panel
USB device port, set F-22 to 0
(Disable USB). Page 21
3. The RMT indicator will turn on when a remote
connection has been established.
RMT indicator
A V
VOLTAGE CURRENT
VSR LAN RMT ERR DLY ALM ISR M 1 M 2 M 3 RUN
C V C C
