Operation Status Register Group
Overview The Operation Status Register Group indicates
the operating status of the power supply.
CAL
Not Used
Not Used
Not Used
Not Used
WTG
Not Used
Not Used
CV
Not Used
CC
OND
OFD
Not Used
PR
Not Used
Condition
0
PTR/NTP Event Enable
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

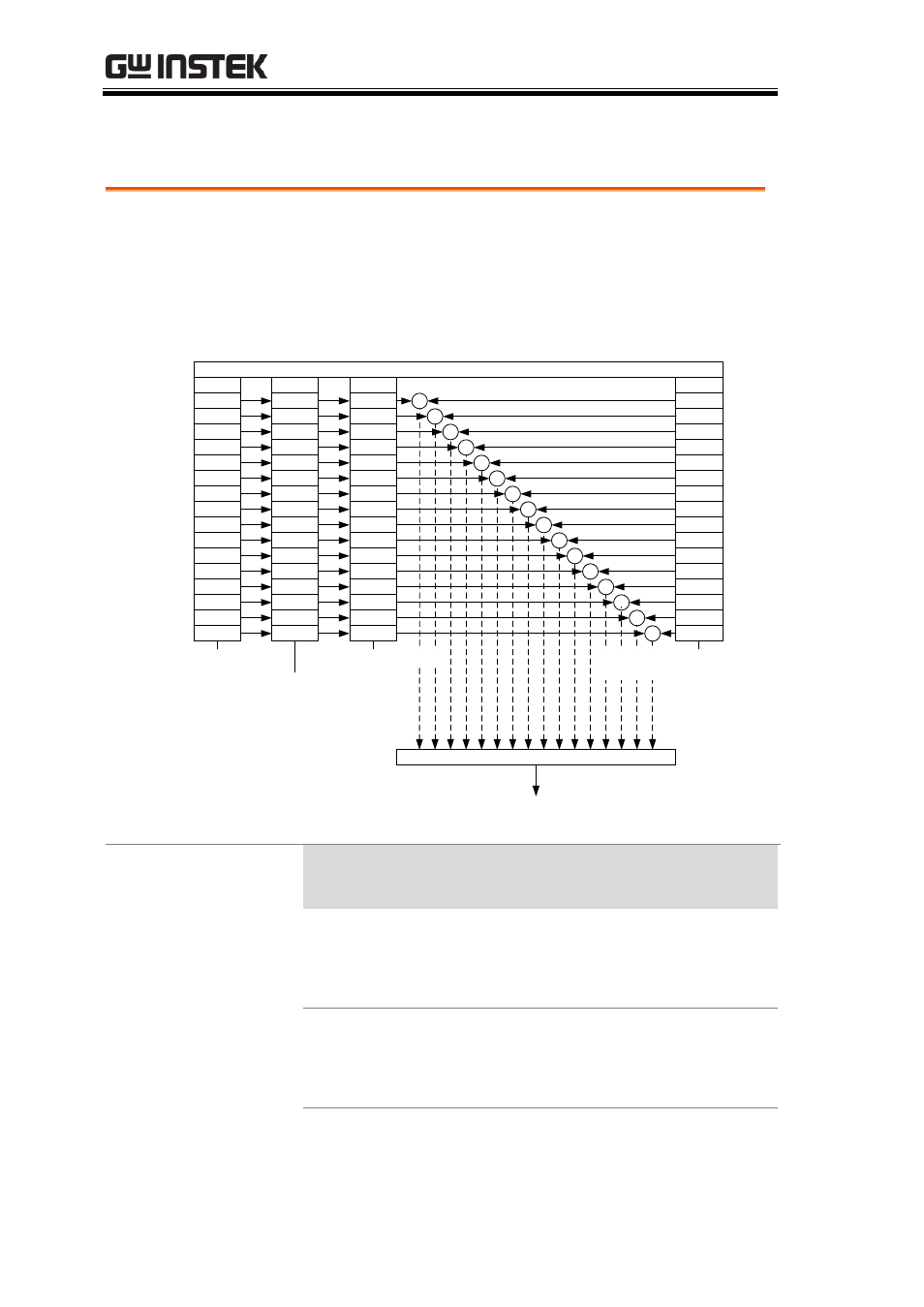

Operation Status Register
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
Logical OR
To Status Byte Register
STATus:OPERation:CONDition? STATus:OPERation:EVENt?
STATus:OPERation:NTRansition
STATus:OPERation:NTRansition?
STATus:OPERation:PTRansition
STATus:OPERation:PTRansition?
STATus:OPERation:ENABle
STATus:OPERation:ENABle?
Bit Summary
Event Bit #
Bit
Weight
CAL (Calibration mode)
Indicates if the PSU is in
calibration mode.
0 1
WTG (Waiting for trigger)
Indicates if the PSU is waiting for
a trigger.
5 32
