Page 25

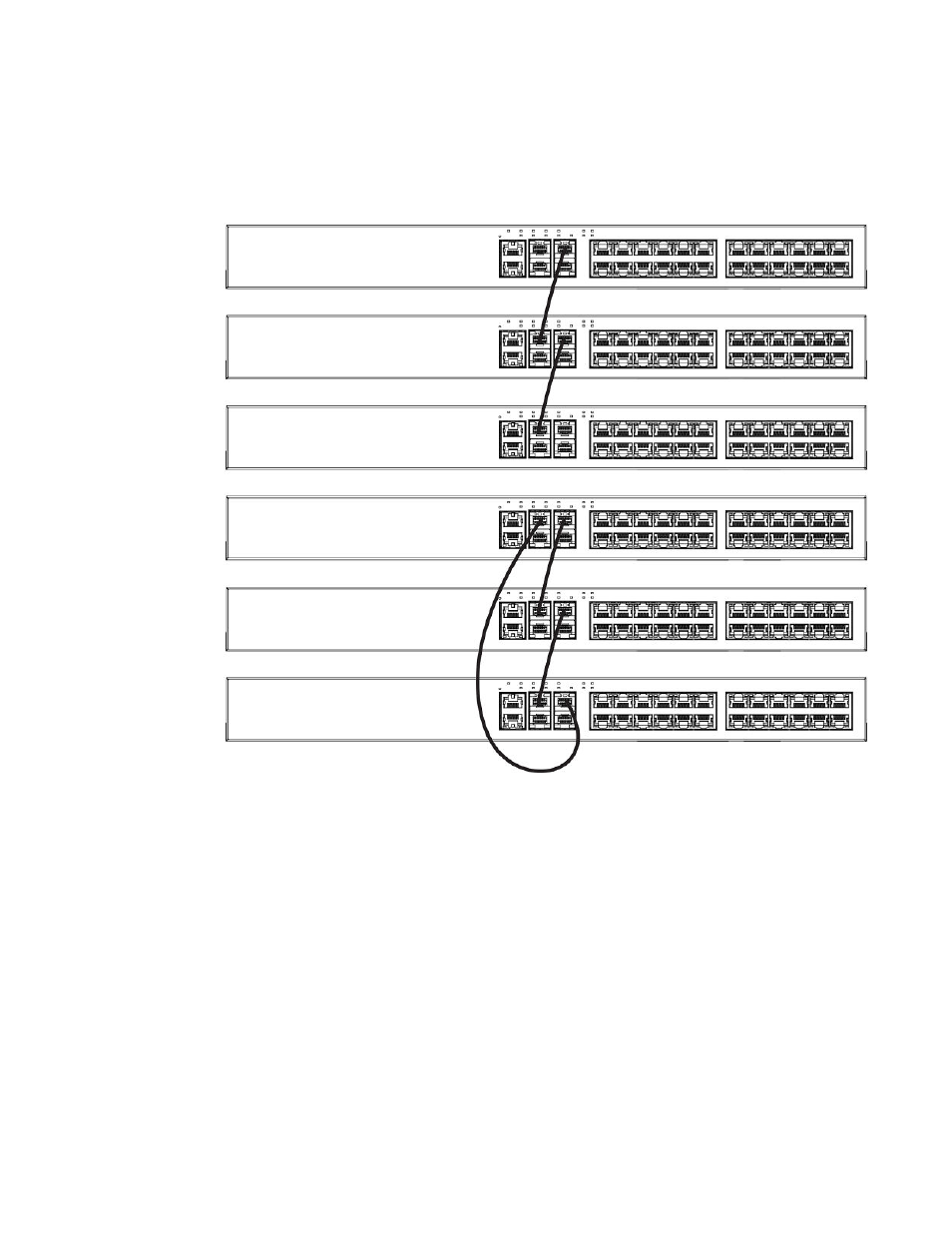

The following figure shows both linear and ring stacking configurations when you only connect one port
per trunk. The one port per trunk topology is the most commonly configured stacking configuration.
FIGURE 9 ICX 6430 and ICX 6450 stacking with one port per trunk
Traditional Stacking
FastIron Ethernet Switch Stacking Configuration Guide
23
53-1003090-02
