M Series Service Manual
88

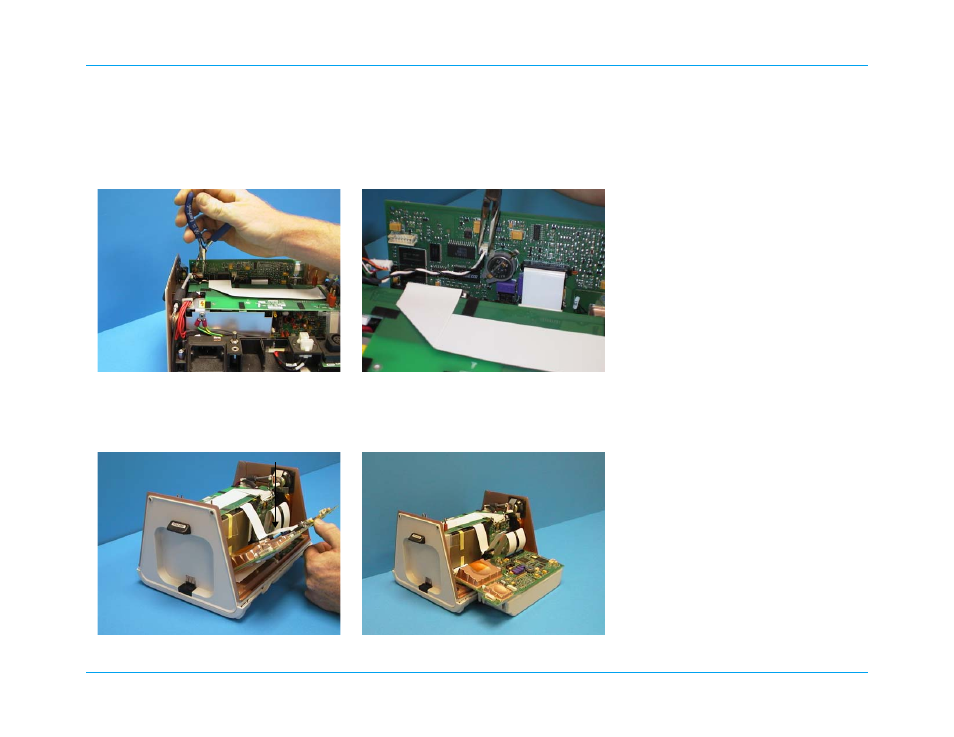

Step 1: Using needle nose pliers, remove left and
right multi-wire cables on the back side of the
system board. To avoid damage to the cable, do
not pull the wires. Hold system board securely
with one hand. DO NOT let it fall forward to
prevent excess tension on the unit’s wires.
Step 2: Remove the two wire speaker cable (if
applicable).
Step 3: Lower the system board with one hand
and remove the battery interconnect laminate
cable from the center of the system board. (See 1.
Removing the ZIF Keeper.)
Step 4: Gently roll the system board forward and
rest it on the battery.
battery interconnect laminate cable
