2b. removing the control board, Continued – ZOLL M Series Defibrillator Rev R User Manual
Page 95
M Series Service Manual
85
2B.
Removing
the
Control
Board
(Continued
)
To reinstall the Control Board
1.
Set the dip switches and attach the SHOCK
button LED actuator.
2.
Place a small amount of strong glue on the
end of the mode selector switch. Slide the
replacement knob on. After the glue dries,
rotate the selector knob to ensure that it is
properly glued in place.
3.
Replace the Pacer Output/Rate knobs, if
applicable.

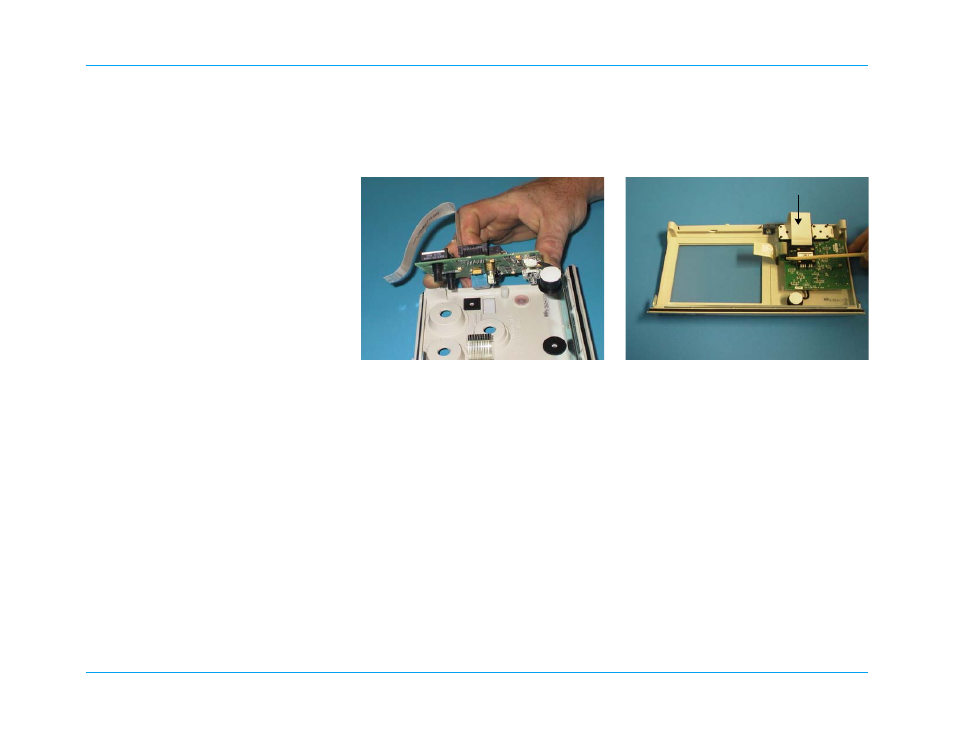

Step 5: Disconnect the speaker microphone cable.
Remove the Control Panel Board from the Front
Panel Assembly. Important: Note the position of
the dip switches because they must be in the same
position for reinstallation.
Step 6: Remove the 50 pin laminate cable from
the control board. See 1.0 Removing the ZIF
Keeper.
50 pin laminate cable
