Removing the upper housing assembly – ZOLL M Series Defibrillator Rev R User Manual
Page 96
M Series Service Manual
86
3. Removing
the Upper
Housing
Assembly
Tool Required
• No. 1 and 2 Phillips screwdriver
Set-up
Remove Front Panel (See Step 2.)
1. Remove the two screws securing the
universal cable.
2. Do not lose the O-ring when removing the
universal cable.
3. Remove the three Phillips screws in the
front of the Upper Housing.
To reinstall the Upper Housing Assembly,
reverse the above steps.
Ensure the battery pin gaskets are properly set.

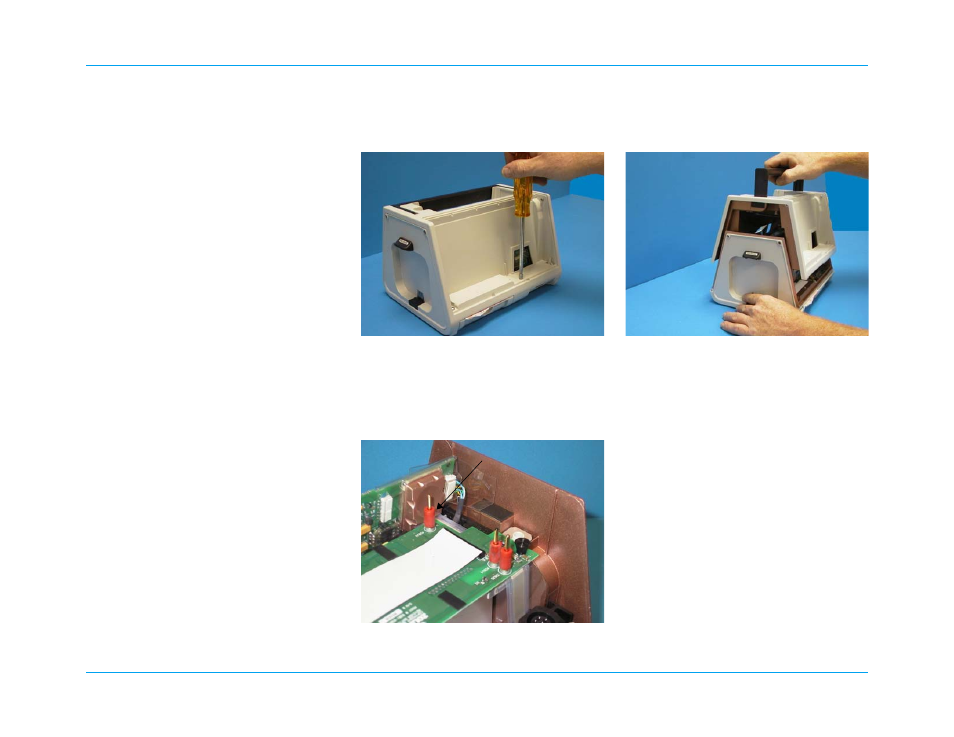

Step 1: Remove two screws from the back side of
the Upper Housing Assembly and three screws
from the front.
Step 2: Secure lower housing to the table by
pressing downward in the paddle well. Using the
carry handle, lift the Upper Housing upward.
Step 3: Make sure that the rubber gaskets are
covering the battery contact pins. If the gaskets
are still seated in the housing, remove and place
them onto the contact pins. Before installing the
Upper Housing ensure that the battery pin gaskets
are set properly.
battery pin gasket
