M Series Service Manual
84
2B.
Removing
the
Control
Board
Tools Required
• No. 2 Phillips Screwdriver
• Orange (Wooden) Stick
• 1/2” Nut Driver
• Large Diagonal Cutters
• Strong Glue, such as Loctite 420 or
equivalent
Note: If you are removing the Control Board
from the Front Panel you may need to replace
the following parts:
• Main Selector knob replacement (ZOLL Part
Number 9310-0521)
• Pacer Output/Rate knob replacement (ZOLL
Part Number 9310-0520).

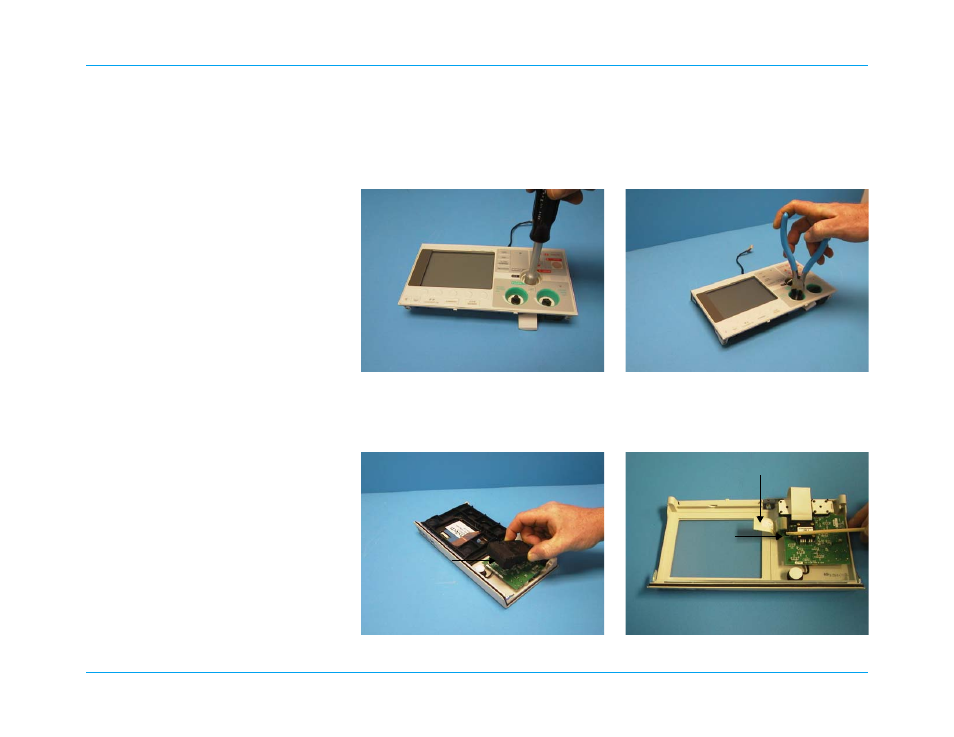

Step 1: (Caution: The knob will be damaged
during this step.) Gently insert the cutters at the
edge of the main selector knob and pry outward
until the knob is removed. Then carefully remove
the 1/2” nuts without damaging the Selector
Switch. Step 2: Gently insert the cutters at the edge of the
pacer knobs and pry outward until the knobs are
removed. Then carefully remove the 1/2” nuts
without damaging the Pacer Switches and green
pace cups.
Step 3: Rock the foam packaging back and forth
from the control panel board to remove the foam. Step 4: Remove the panel overlay circuit cable
from the control board by lifting the sides of the
lock lever located under the front of the control
board. (See 1. Removing the ZIF Keeper.)
foam packaging
wooden stick
panel overlay circuit cable
