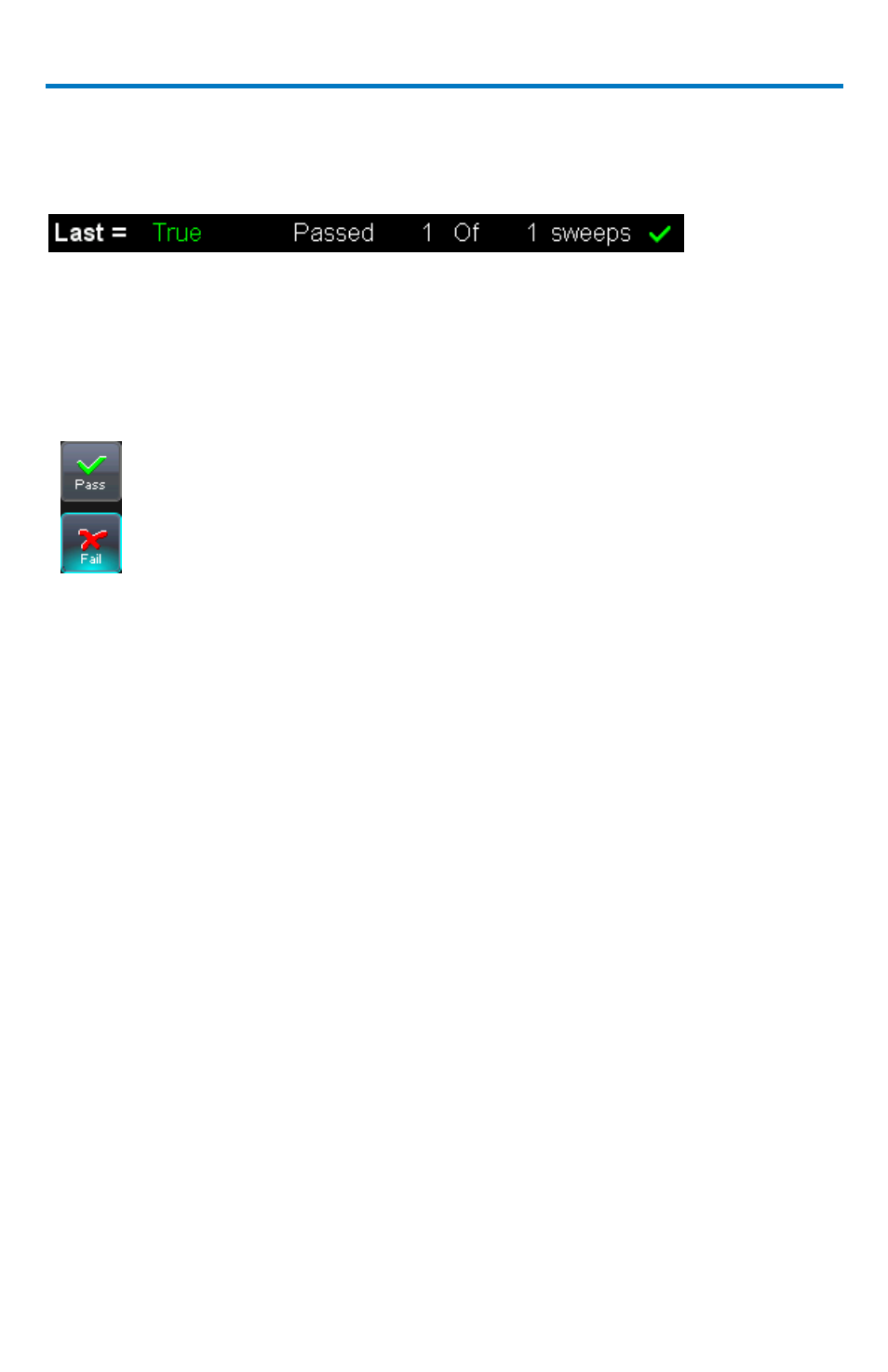

Touch the Summary View to enable a line of text that shows concisely the
status of your last waveform and keeps a running count of how many sweeps
have passed.
Touch inside the Pass If field, and select a Boolean condition from the pop-up
menu.
If you want to set up the test to end after a finite number of sweeps, touch the
Stop Test checkbox. Then touch inside the After field and enter a value, using
the pop-up numeric keypad.
Under If, touch either the Pass or Fail button to set the actions to
occur upon your waveform's passing or failing the test.
Under Then, touch the actions you want to occur: stop test, sound
alarm, print result, emit pulse, or save the waveform. If you want to
have the results printed and your oscilloscope is not equipped with a
printer, be sure that the it is connected to a local or network printer. See
Printing.
If you want to save your waveform automatically, touch the Save Setup. This
takes you out of the current dialog and opens the Save Waveform dialog.
Refer to the Saving and Recalling Waveforms section of this manual for more
details.
Test your Pass/Fail conditions by touching the Force Actions Once button.
Press the Clear All button to quickly uncheck all checkboxes if you want to
change your selections.
