From Math Dialog

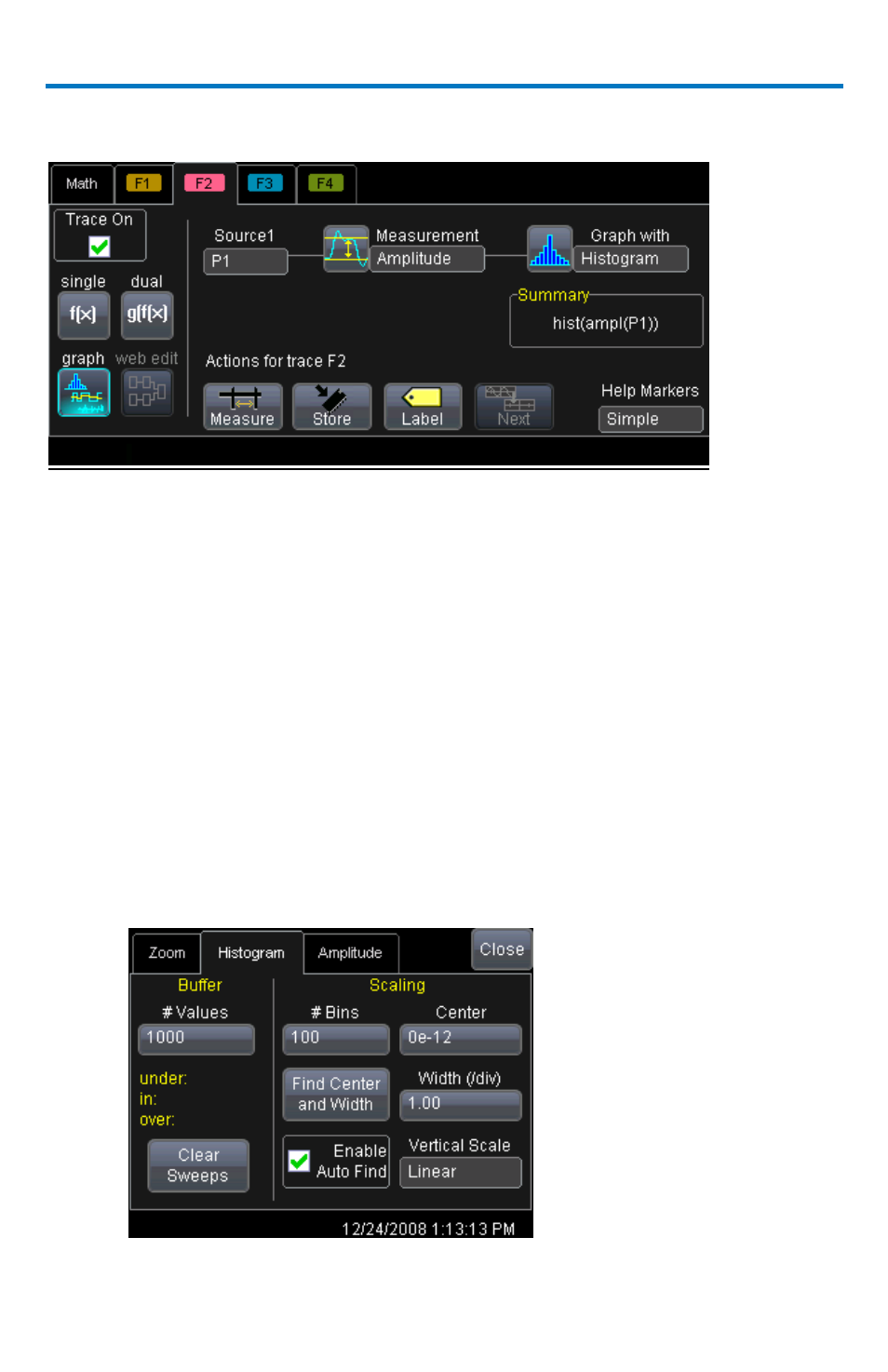

1. Touch MathMath Setup from the menu bar.

2. Touch one of function tabs F1 through Fx. The number of math traces

available depends on the software options loaded on your
oscilloscope.

3. Touch the Graph button.

4. Touch inside the Source1 field and select a source from the pop-up

menu.

5. Touch inside the Measurement field and select a parameter from the

pop-up menu.

6. Touch inside the Graph with field and select Histogram from the pop-

up menu.

7. In the dialog to the right, touch the Histogram tab.

8. Under Buffer, touch inside the #Values field and enter a value.
