Serial Decode and Decode Setup
These dialogs provide the ability to set the oscilloscope up for protocol
decoding of serial data messages, with display of the protocol data overlaid on
the signal. They also allow quick and easy access to oscilloscope zooming,
searching, table display, and table export.
The serial decode and decode setup dialogs are accessed in any the following
ways:

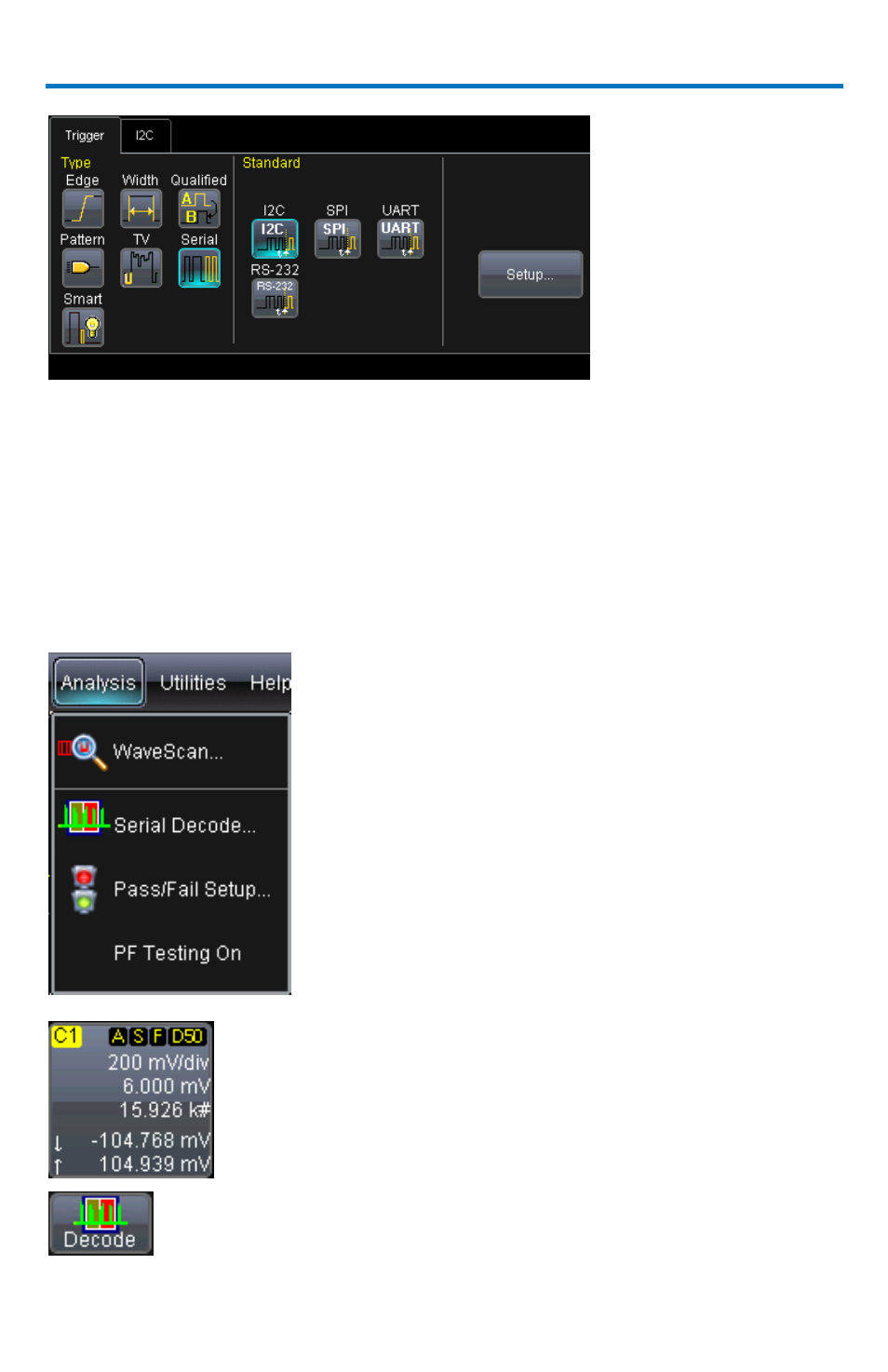

1. Touch Analysis  Serial Decode... from the
menu bar.
The Serial Decode summary dialog is shown and
provides access to Decode Setup.
2. Touch the Channel or Memory Descriptor Box to
open the respective dialog box, and touch the
Decode button in the bottom toolbar.
