Method 1 – pre-configured output, continued – Fairbanks FB2550 SERIES User Manual
Page 93
Section 5: Input/ Output
07/2012
93
51254 Rev. 3
5.8.3. METHOD 1 – PRE-CONFIGURED OUTPUT,
CONTINUED

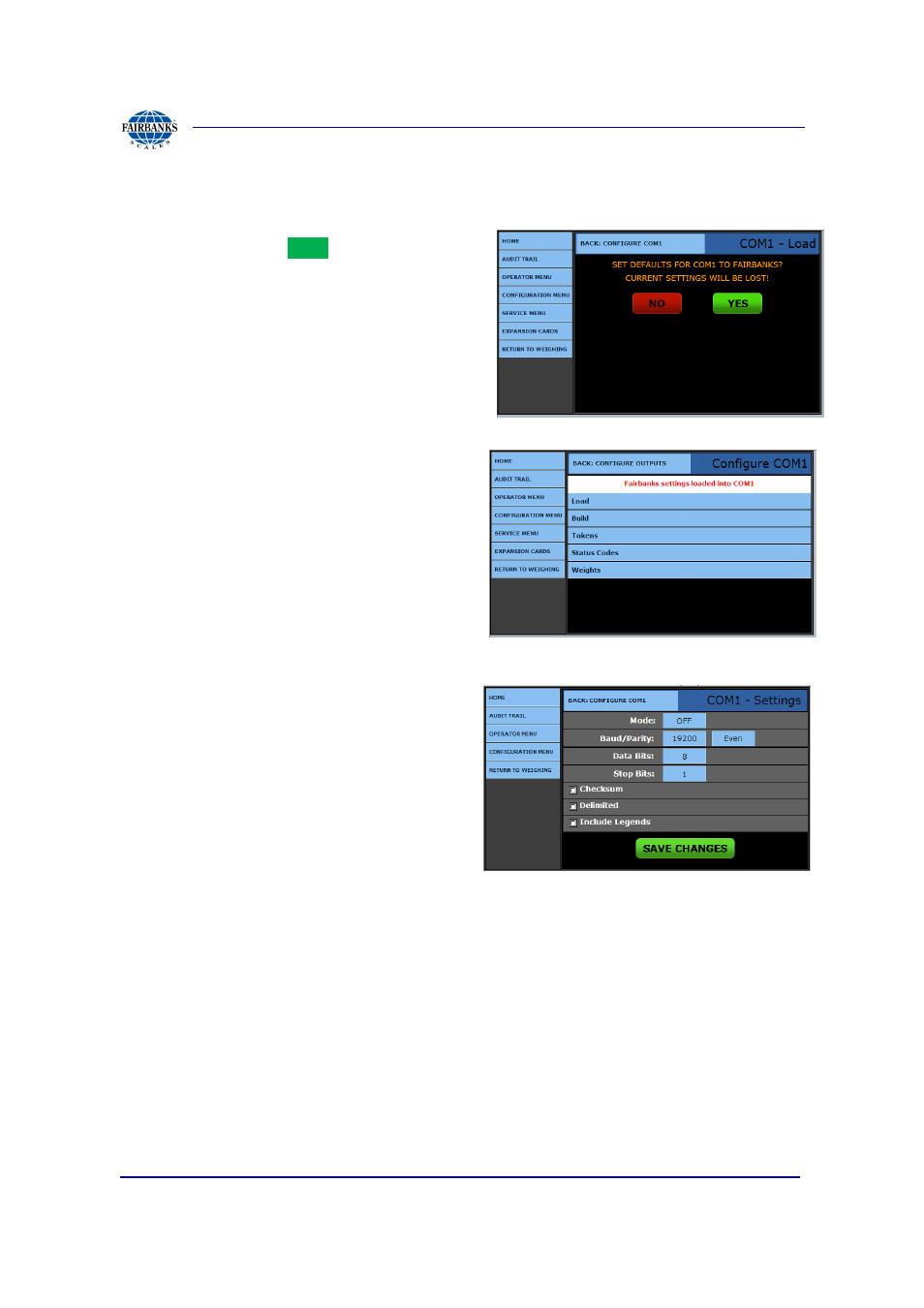

9. Touch the YES button to load the
default configuration for the data
protocol selected.
10. A successful load of the selected
data output will be indicated as
shown.
11. Verify the configuration baud,
parity, stop bits to be at the
correct values.
