Operation mode led, Modular status led, Eds files – Fairbanks FB2550 SERIES User Manual
Page 122
Section 5: Input/ Output
07/2012
122
51254 Rev. 3

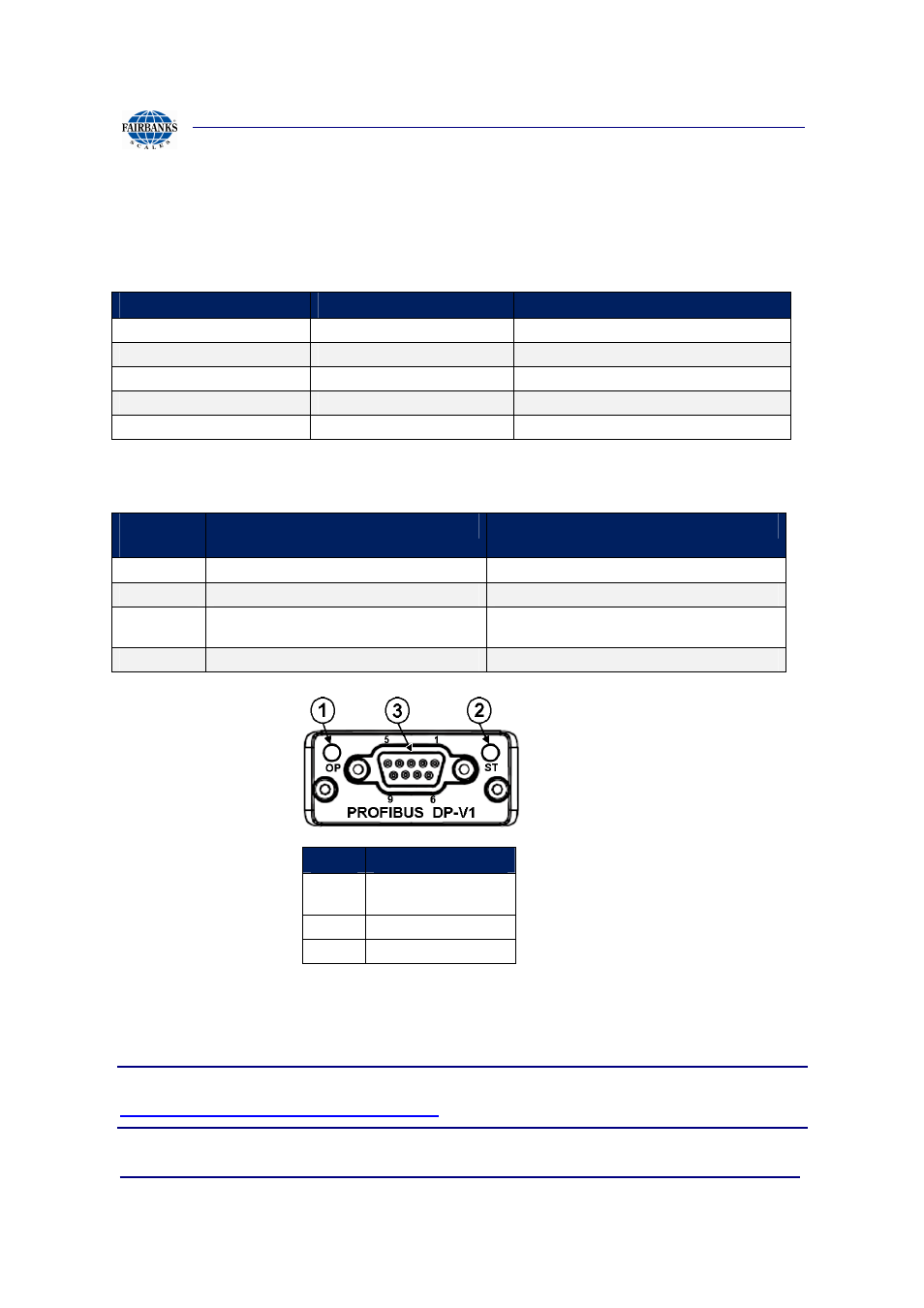

5.15.5. PROFIBUS (
30922
), CONTINUED
OPERATION MODE LED
MODULAR STATUS LED
NOTE:
Additional information and
EDS files
are available at the following website.
http://www.hms.se/default.shtm
.
LED STATE
DESCRIPTION
Comments
OFF
Not online or No power
Green
Online/ Data Exchange
Flashing Green
Online, clear
Flashing Red (1 flash)
Parameterization error
See Parameterization Data Handling
Flashing Red (2 flashes)
Profibus configuration error
See Configuration Data Handling
LED
STATE
DESCRIPTION
Comments
OFF
No power - OR – not initialized
Module state = “SETUP” OR NW-INIT”
Green
Initialized
Module has left the NW_INIT state
Flashing
Green
Initialized, diagnostic events(s) present
Extended diagnostic bit is set
Red
Exception error
Module state = EXCEPTION
No.
DESCRIPTION
1
Communication
LED
2
Device Status LED
3
Modbus Interface
