Section 3: Operations
07/2012 50 51254 Rev. 3

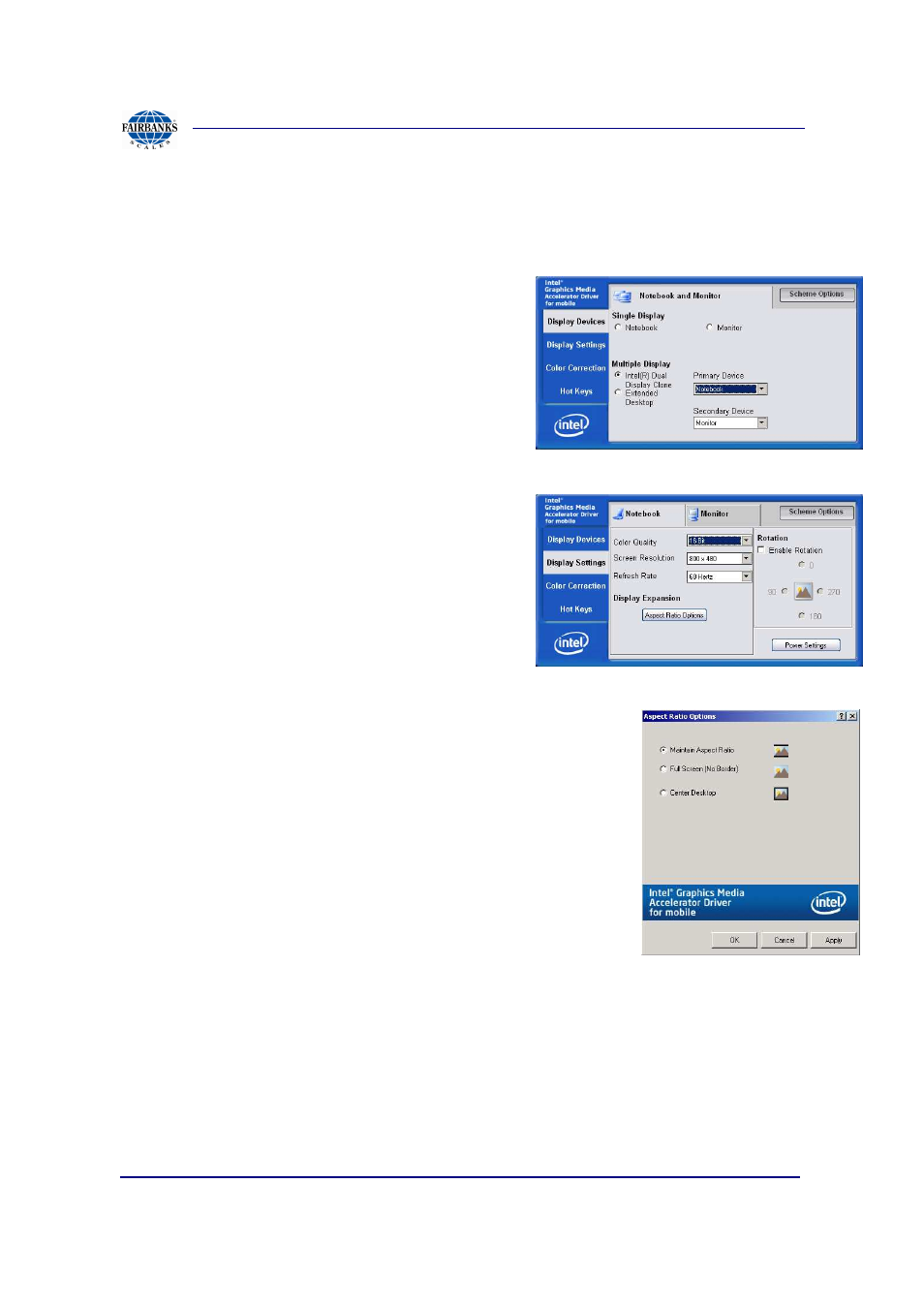

3.13. EXTERNAL MONITOR
The FB2550 can interface to an external VGA monitor. Following these steps to
activate the external monitor interface configuration.
1. On the computer that will host the
FB2550 Instrument monitor, press the
CTRL + ALT + F12 keys
simultaneously.
2. Switch to Multiple Display
– Dual Display Clone (Primary Display is
Notebook).
3. Open the DISPLAY SETTINGS tab.
4. Select the NOTEBOOK tab.
5. Select 16 BIT COLOR.
6. Change screen resolution to
800X480.
7. Tab to the APPLY button. Press the
SPACE BAR to select.
8. Open the Notebook tab.
9. Select Display Expansion
10. Select ASPECT RATIO OPTIONS button.
11. Press the SPACE BAR to select.
12. Select the FULL SCREEN (NO BORDER)
radio button.
13. Tab to the APPLY button.
14. Press the SPACE BAR to select this option.
15. Select the MONITOR TAB…
16. Select DISPLAY EXPANSION.
17. Select ASPECT RATIO OPTIONS button and press the SPACE
BAR to select.
18. Select MAINTAIN ASPECT RATIO radio button.
19. Tab to the APPLY button and press the SPACE BAR to select.
