Section 5: Input/ Output
07/2012 78 51254 Rev. 3

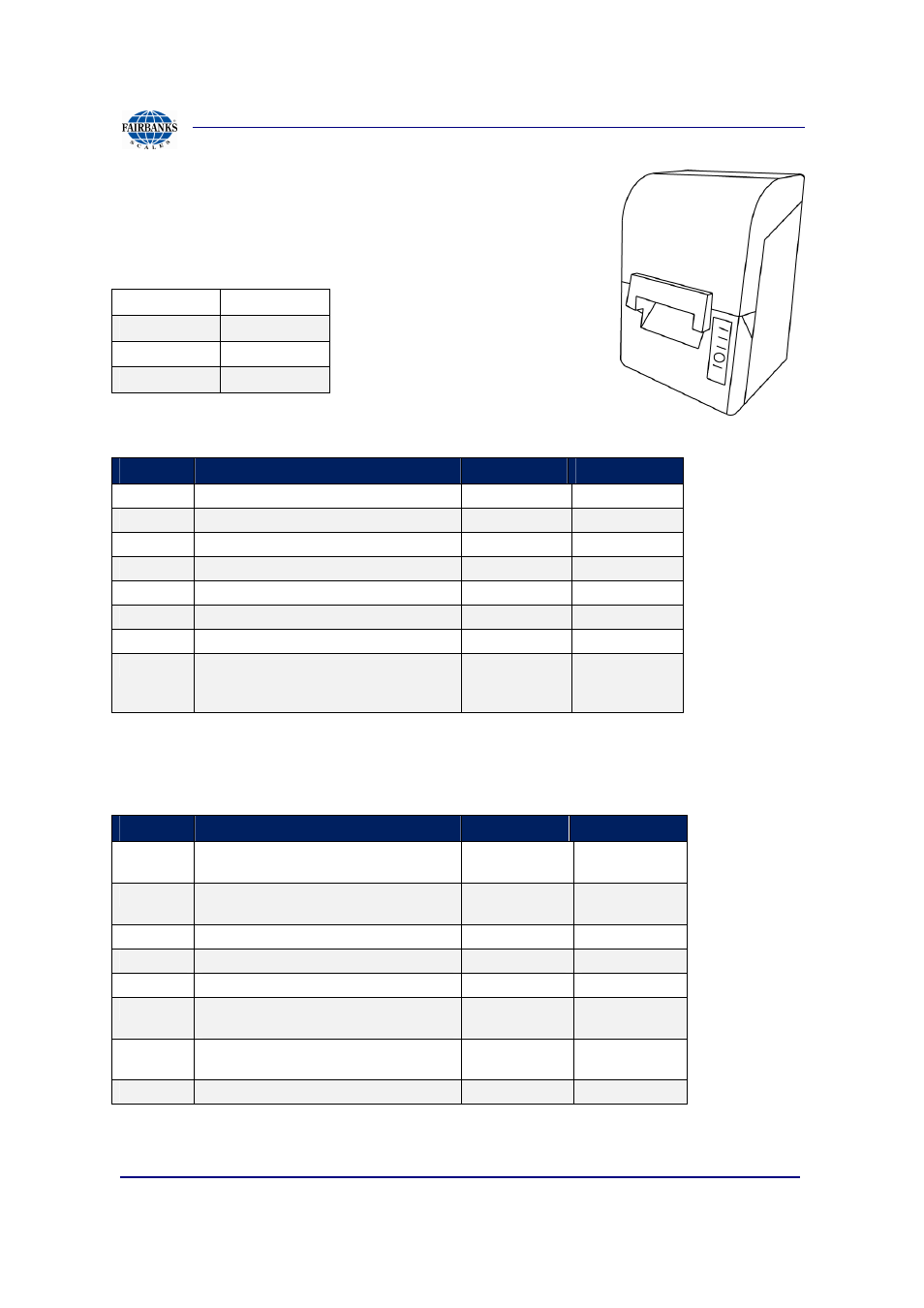

5.4.10. TM-U230
•
For FB2550 Instrument Desktop and NEMA 4X SERIAL
communications, use cable 25932.
DIP Switch 1 Settings (SERIAL INTERFACE)
SWITCH FUNCTION ON OFF
1 Data receive error Ignored Prints “?”
2 Receive buffer capacity 1KB 16KB
3 Handshaking XON/XOFF DTR/DSR
4 Work length 7 bits 8 bits
5 Parity check Yes No
6 Parity selection Even Odd
7 Transmission speed 4800 bps 9600 bps
8 BUSY condition Receive
buffer full
Receive
buffer full or
Offline
DIP Switch 2 Settings (SERIAL INTERFACE)
SWITCH FUNCTION ON OFF
1 Sections number of characters per
line (cpl) 7 x 9 font/ 9 x 9 font
42/35 40/33
2 For internal use only (Autocutter)
(do not change) Enabled Disabled
3 Pin 6 reset signal Used Not used
4 Pin 25 reset signal Used Not used
5 PAPER OUT LED flashing pattern Flashes Lights on
6 For internal use only (flash memory
rewriting) (Do not change) Enabled Disabled
7 For internal use only (Internal
synchronization) (Do not change) Asynchronous Synchronous
with clock
8 Internal buzzer Disabled Enabled
BAUD 9600
PARITY No
DATA BITS 8
STOP BIT 1
