66

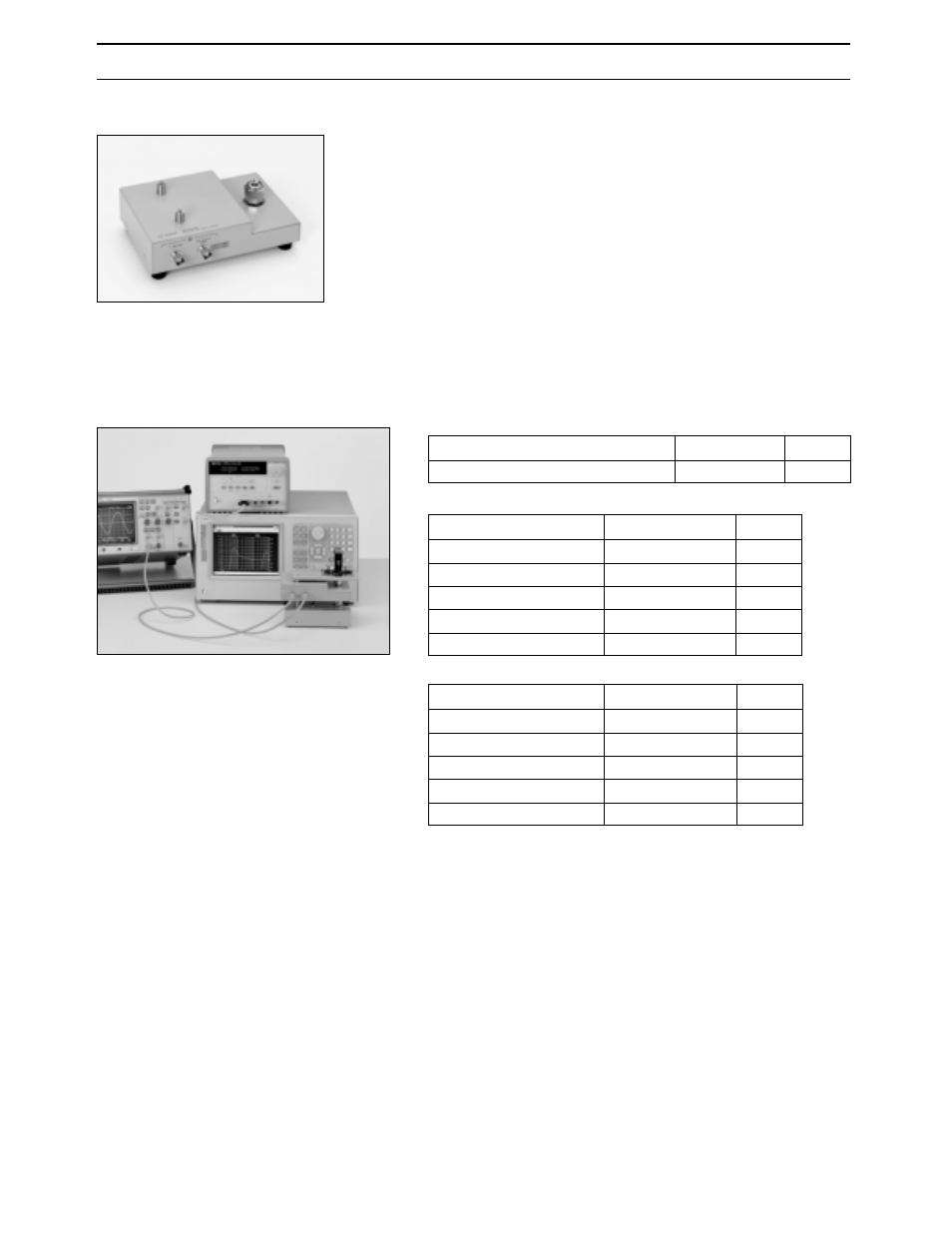

16200B External DC Bias Adapter
Terminal Connector: 7 mm
DC BIAS Input connector: BNC(f)
Voltage Monitor connector: BNC(f)
Dimensions (approx.): 165(W) x 65 (H) x 130(D) [ mm]
Weight (approx.): 500 g
Up to 3 GHz (7 mm) DC Bias Accessories
Description: This test fixture is designed to operate with
the 4286A or 4291A/B. It allows you to supply a bias cur-
rent across the device of up to 5Adc through a 7 mm port
by using an external dc current source.
Applicable Instruments: 4287A, 4294A + 42942A, 4395A
with Opt.4395A-010 + 43961A, 4396B with Opt.4396B-010 +
43961A, E4991A, (4195A + 41951A, 4286A, 4291A, 4396A)*
When used with 16085B: 4263B, 4268A, 4279A, 4284A,
4285A, 4288A, (4192A, 4194A, 4263A, 4278A)*
* denotes the instrument is obsolete.
Frequency: 1 MHz to 1 GHz
DC Bias: Up to 5A, 40 V
Operating Temperature: 0°C to 55°C
Applicable Fixtures: 16191A, 16192A, 16193A, 16194A,
16196A/B/C, 16197A, 16092A, 16093A/B
Furnished Accessories:
Shorting Devices’ Size and Part Number (option 16200B-001)
Load Devices’ Size and Part Number (option 16200B-001)
Options:
16200B-001: For 4291B users, Add Working Std Set
Compensation and Measurement: When using the
4291B, follow these instructions: Perform open, short,
load and low-loss calibration at the 7 mm test port of the
4291B. Connect the 16200B to the 7 mm test port, and
connect the test fixture onto the 16200B. Open, short, and
load compensations are recommended before measure-
ment. Use the short bars and 51
Ω
SMD resistors fur-
nished with 16200B’s option 16200B-001 to perform short
and load compensation respectively.
When using other instruments, follow these instructions:
Connect the 16200B to the 7 mm test port of the measure-
ment instrument. Perform open, short, load (and low-loss
calibration) at the 7 mm test port of the 16200B. Then,
connect the test fixture onto the 16200B and perform
open, short, and electrical length compensations in the
usual manner.
Description P/N Qty.
Operation and Service Manual 16200-90011 1
Size P/N Qty.
0.6 x 0.3 x 0.3 (mm) 16197-29001 2
1 x 0.5 x 0.5 (mm) 16191-29005 2
1.6 x 0.8 x 0.8 (mm) 16191-29006 2
2.0 x 1.2 x 0.8 (mm) 16191-29007 2
3.2 x 1.6 x 0.8 (mm) 16191-29008 2
Size P/N Qty.
0.6 x 0.3 x 0.3 (mm) NA 5
1 x 0.5 x 0.5 (mm) NA 5
1.6 x 0.8 x 0.8 (mm) NA 5
2.0 x 1.2 x 0.8 (mm) NA 5
3.2 x 1.6 x 0.8 (mm) NA 5
Connection example
