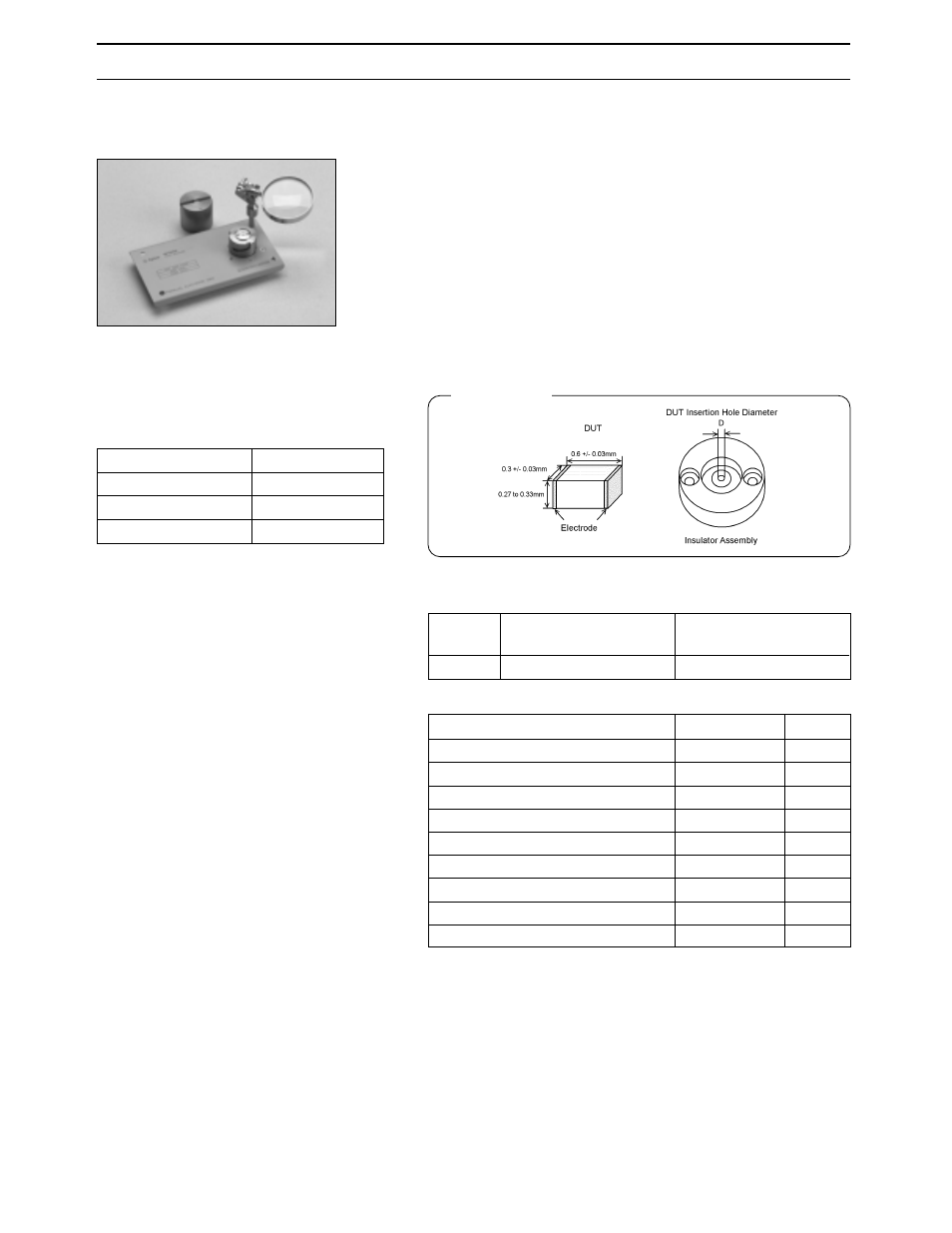

16196C Parallel Electrode SMD Test
Fixture
Terminal Connector: 7 mm
DUT Connection: 2-Terminal
Electrical Length: 27.1 mm
Dimensions (approx.): 140(W) x 48(H) x 78(D) [mm]
Weight (approx.): 250 g
Additional Error:
f: frequency [GHz]
Up to 3 GHz (7 mm) SMD
Description: This test fixture is designed for impedance
evaluations of parallel electrode SMDs. It achieves stable
frequency characteristics up to 3 GHz and provides highly
repeatable measurements. The applicable SMD size code
is 0201 (inch)/0603 (mm).
Applicable Instrument: 4287A, 4294A + 42942A, 4395A
with Opt.4395A-010 + 43961A, 4396B with Opt.4396B-010 +
43961A, E4991A, (4195A + 41951A, 4286A, 4291A, 4396A)*
When used with 16085B: 4263B, 4268A, 4279A, 4284A,
4285A, 4288A, (4192A, 4194A, 4263A, 4278A)*
* denotes the instrument is obsolete.
Frequency: dc to 3 GHz
Maximum Voltage: ±40 V peak max (AC +DC)
Operating Temperature: -55°C to +85°C
DUT size: The applicable SMD size is 0201 (inch)/0603
(mm). For details, see the figure below.
The 16196C is furnished with one insulator assembly. See the
table below for the dimensions of the insulator assembly.
Furnished Accessories:
Options:
16196C-710: Add the magnifying lens and tweezers
To maintain adequate measurement performance, keep
the electrodes and the short plate in good condition.
Contaminants and abrasion on these parts considerably
affect measurement results, especially for low value mea-
surements. Periodic fixture cleaning and part replace-
ment is recommended to avoid deterioration of measure-
ment performance. The 16196x fixtures are designed with
simplicity in mind, so that an operator can easily replace
parts. Spare parts, which are likely to be abraded, are
supplied with the 16196U Maintenance Kit.
Type of Error Impedance
Proportional Error 1.0 x f 2 [%]
Open Repeatability 5 + 40 x f [µS]
Short Repeatability 30 + 125 x f [m
Ω
]
Hole Diameter of Insulator SMD case size examples
assembly (mm) Length,Width, Height (mm)
16196C
φ
0.47 0.6 x 0.3 x 0.3
Description P/N Qty.
Operation and Service Manual 16196-90020 1
Insulator Assembly φ 0.47 mm 16196-60312 1
Open Plate 16196-29002 1
Short Plate 16196-29028 1
Push Ring 16196-24004 1
Magnifying Lens 1 16193-60002 1
Tweezers 1 8710-2081 1
Wrench 8710-0909 1
Cleaning Rod 5182-7586 1
DUT Dimensions
1: Opt. 16196C-710 only
