65

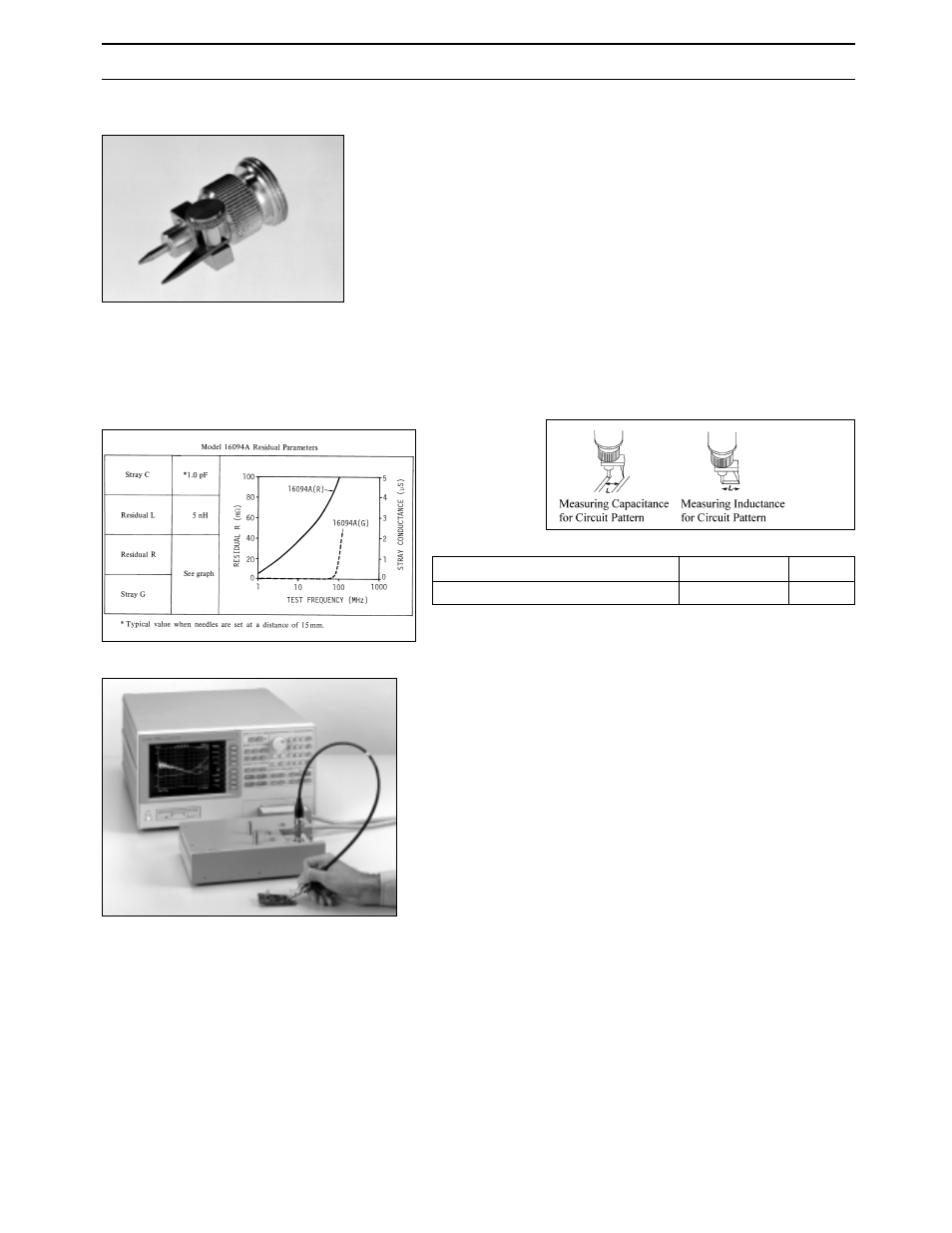

16094A Probe Test Fixture
Terminal Connector: 7 mm
DUT Connection: 2-Terminal
Electrical Length: 23.2 mm
Weight (approx.): 25 g
Additional Error: See figure below
Up to 3 GHz (7 mm) Probe
Description: 16094A is used along with the 7 mm cable
(P/N 8120-4779). Together they provide the capability to
perform in-circuit measurements (printed circuit pat-
terns, the input/output impedance of circuits, etc.).
Applicable Instrument: 4287A, 4294A + 42942A, 4395A
with Opt.4395A-010 + 43961A, 4396B with Opt.4396B-010
+ 43961A, E4991A, (4195A + 41951A, 4286A, 4291A,
4396A)*
When used with 16085B: 4263B, 4268A, 4279A, 4284A,
4285A, 4288A, (4192A, 4194A, 4263A, 4278A)*
* denotes the instrument is obsolete.
Frequency: DC to 125 MHz
Maximum Voltage: ±40 V peak max (AC +DC)
Operating Temperature: 0°C to 55°C
DUT size: See figure below.
Furnished Accessories:
Compensation and Measurement: Open and short
compensations are recommended in combination with the
electrical length compensation before measurement. The
fixture’s electrical length must be entered into the electri-
cal length compensation function of the measurement
instrument first. Then open compensation is performed
by separating the high and the low electrodes from each
other. Short compensation is performed by shorting the
probe. To short the probe it is recommended to use a
shorting device with gold-plated surfacing (which provides
stable contact resistance) as described for 16095A.
4291B with 16094A
L: 1 mm ~ 15 mm
spacing
Description P/N Qty.
Operating Note 16094-90000 1
* Obsoleted measurement configuration
