16095A Probe Test Fixture
Terminal Connector: 4-Terminal Pair, BNC
Cable Length (approx.): 1 m
Weight (approx.): 480 g
Additional Error:
30
Up to 110 MHz (4-Terminal Pair) Probes

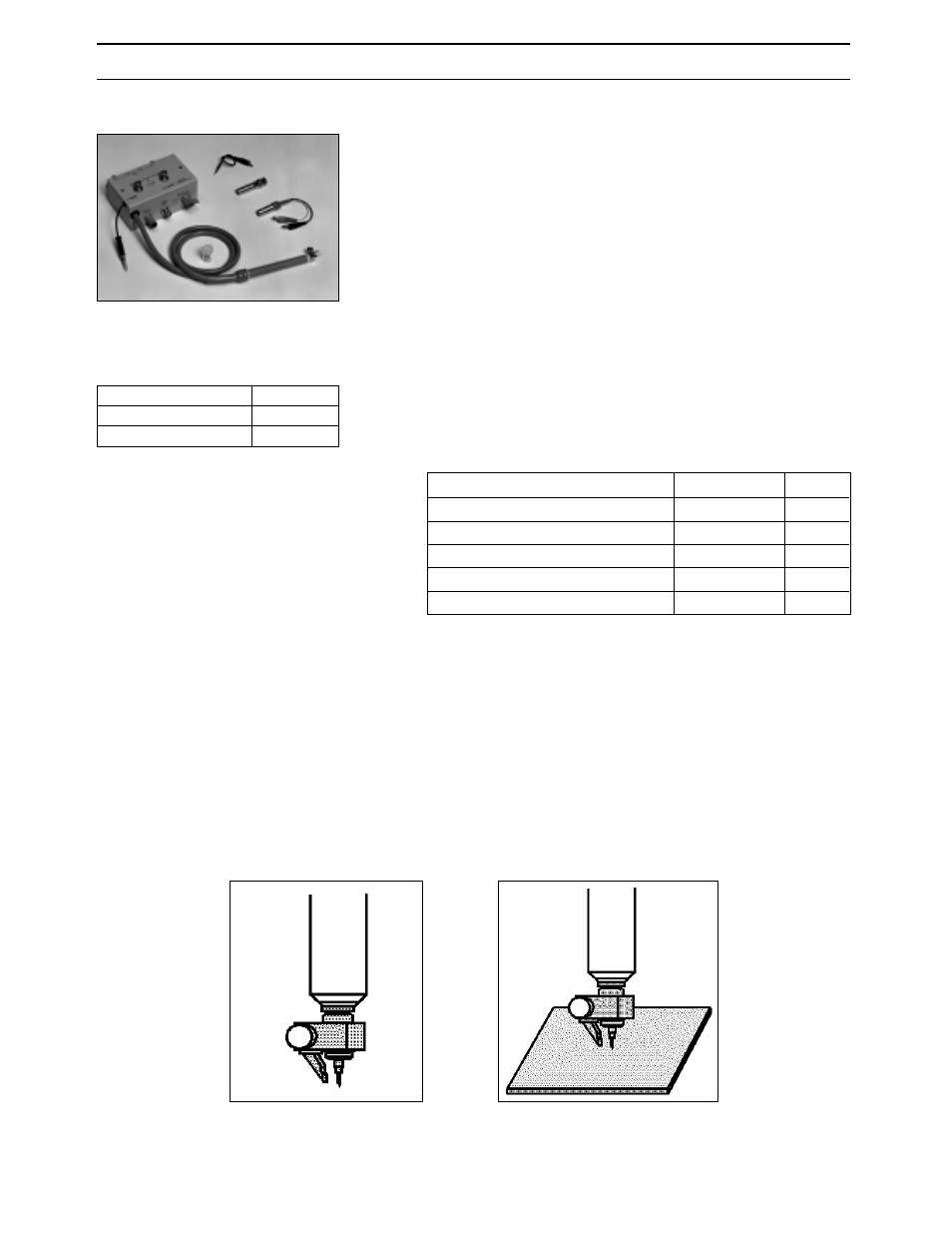

Description: This impedance probe kit is designed for
use with the 4192A, but can be used with other 4-
Terminal Pair LCR meters and Impedance analyzers as
long as the ground lead of the probe is not connected to
the instrument's ground terminal. DUTs can be connected
by either using the standard probe, the alligator clip
adapter or the BNC adapter. The standard probe is best
for in-circuit, board-mounted components. The alligator
clip is for components too large for the standard probe tip.
The BNC adapter is used to connect circuits or networks
equipped with BNC connectors.
Applicable Instruments: 4263B, 4268A, 4279A, 4284A,
4285A, 4288A, (4192A, 4263A, 4278A)*
* denotes the instrument is obsolete.
Frequency: DC to 13 MHz
Maximum Voltage: ±35 V peak max (AC+DC)
Operating Temperature: 0°C to 55°C
Furnished Accessories:
P/N 16095-65001 ground pins (5ea.) are also available
(not furnished).
Compensation and Measurement: Cable length and
open and short compensations are recommended before
measurement. First, set the instrument's cable length
compensation function to 1 m. Short compensation is per-
formed by shorting the probe. To short the probe it is rec-
ommended to use a shorting device with gold-plated sur-
facing (which provides stable contact resistance). The fol-
lowing figures show how compensation is performed.
Description P/N Qty.
Center Pins for Probe 16095-60012 10
Alligator Clip for Ground (1 ea.) 16095-61611 1
BNC (m) Adapter (1 ea.) 16095-60011 1
Alligator Clip Adapter (1 ea.) 16095-61612 1
Operating Note 16095-90001 1
Open compensation Short compensation
Stay Capacitance
≤
15 pF
Residual Inductance
≤
40 nH
Residual Resistance ≤ 100 m Ω
