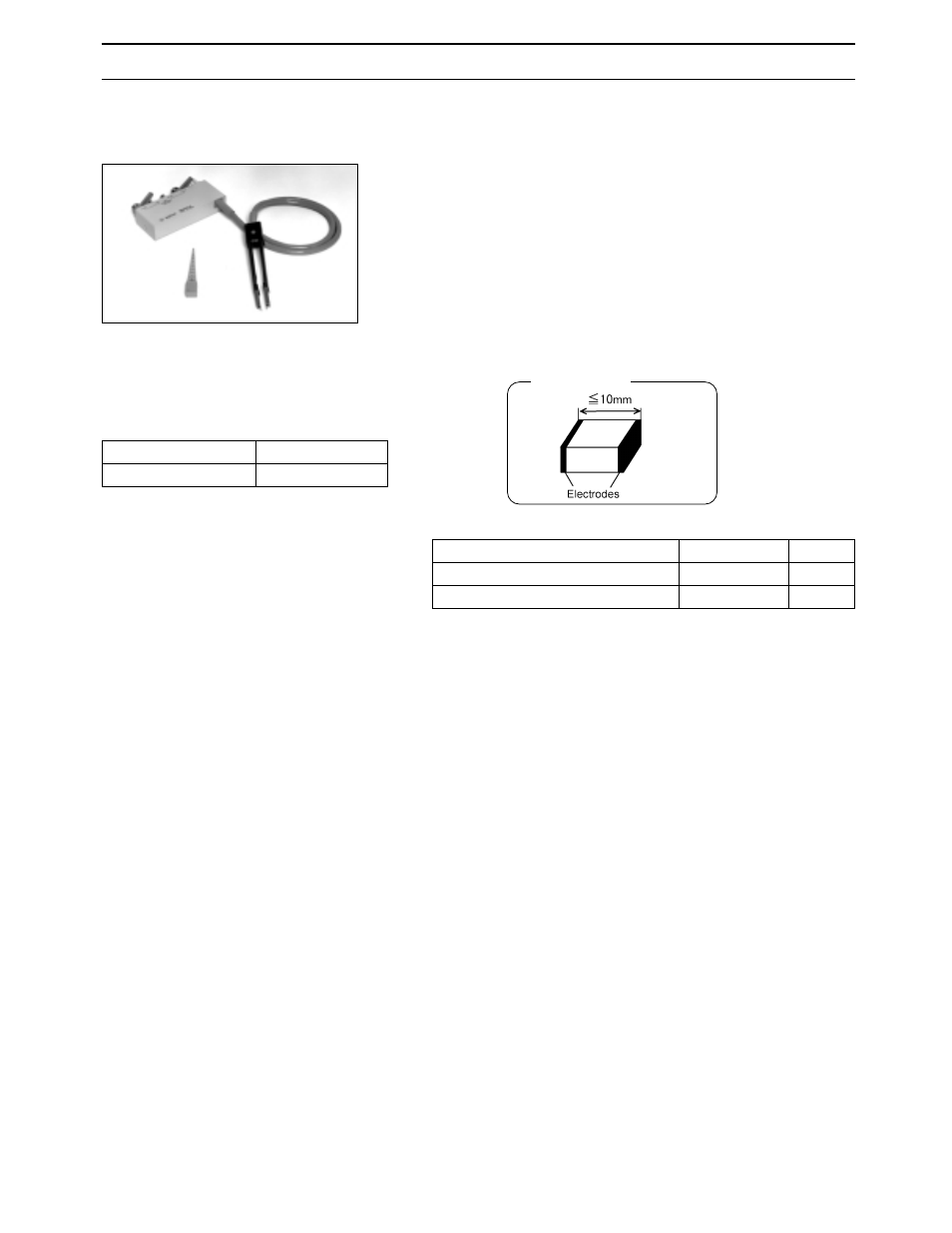

16334A Tweezers Contact
Test Fixture
Terminal Connector: 4-Terminal Pair, BNC
DUT Connection: 2-Terminal
Cable Length (approx.): 1m (from BNC connectors
to the top of tweezers)
Weight (approx.): 290 g
Additional Error:
f: [MHz]
19
Up to 110 MHz (4-Terminal Pair) SMD
Type of Error Impedance
Proportional Error ±2 x (f/10) 2
Description: This test fixture is designed for impedance
evaluations of SMD. The minimum SMD size that this fix-
ture is adapted to evaluate is 1.6(L) x 0.8(W) [mm]. The
tweezers’ contacts on this fixture makes it easy to hold
the DUT.
Applicable Instruments: 4263B, 4268A, 4279A, 4284A,
4285A, 4288A, 4294A, (4192A, 4194A, 4263A, 4278A)*
* denotes the instrument is obsolete.
Frequency: DC to 15 MHz
Maximum Voltage: ±42 V peak max (AC+DC)
Operating Temperature: 0°C to 55°C
DUT Size: <
=10 mm (width)
See figure below
Furnished Accessories:
Compensation and Measurement: Open and short
compensations are recommended before measurement.
Open and short compensations are performed by using
the furnished compensation block. After performing open
and short compensations, the DUT is sandwiched by the
tweezers’ contacts and is measured.
Description P/N Qty.
Compensation Block 16334-60001 1
Operation Note 16334-90000 1
DUT Dimensions
