25
Up to 110 MHz (4-Terminal Pair) Other Components

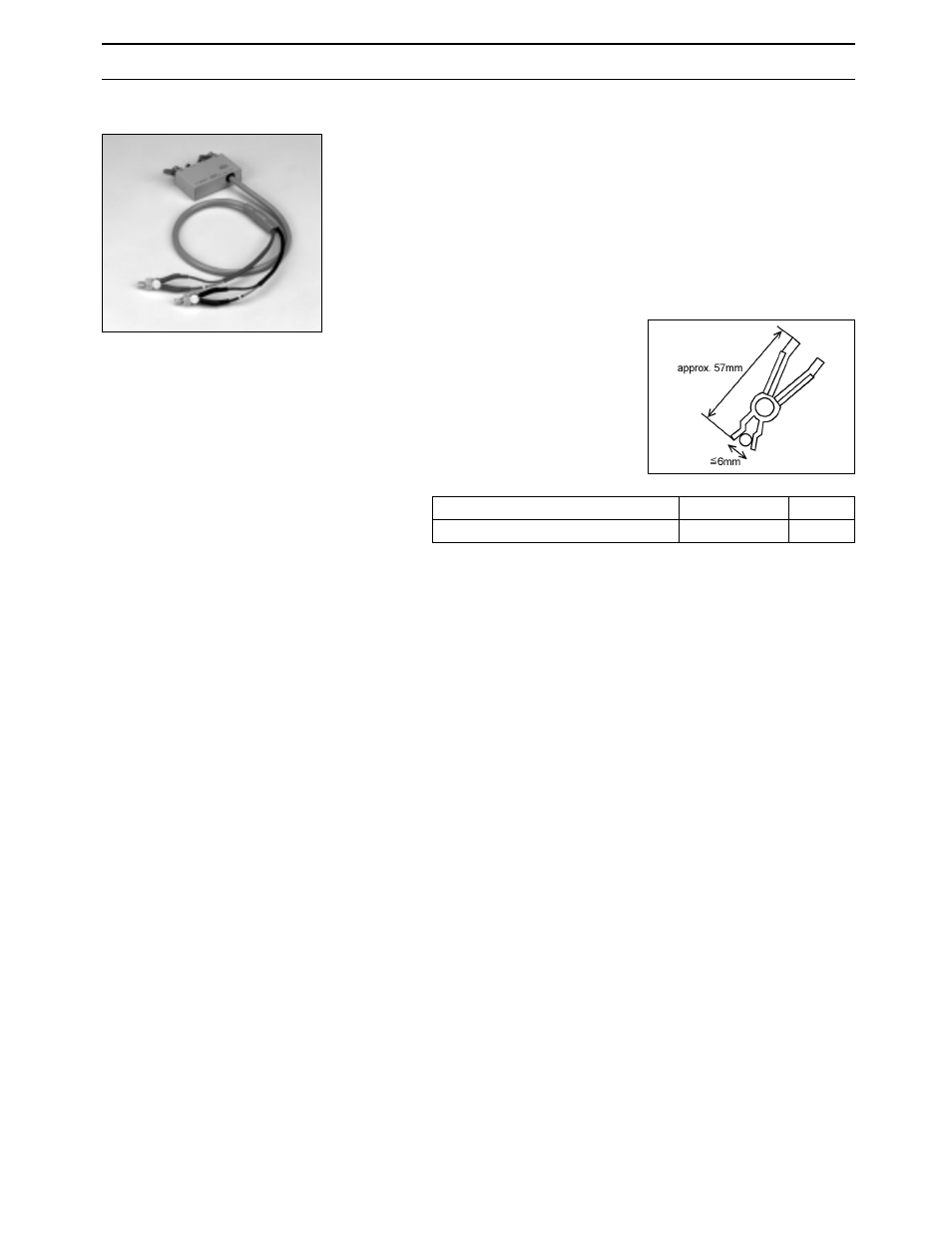

16089E Kelvin Clip Leads
Terminal Connector: 4-Terminal Pair, BNC
DUT Connection: 4-Terminal
Cable Length (approx.):
1m (from connector to clip's tip)
Weight (approx.): 260 g
Additional Error: The additional error is
negligible when compared to the instrument's
accuracy.
Description: This test fixture can measure lead compo-
nents with low impedance. It has excellent repeatability
and low contact resistance. It is equipped with two insu-
lated Kelvin clips.
Applicable Instruments: 4263B, 4268A, 4279A, 4284A,
4285A, 4288A, 4294A, (4192A, 4194A, 4263A, 4278A)*
* denotes the instrument is obsolete.
Frequency: 5 Hz to 100 kHz
Maximum Voltage: ±42 V peak max (AC+DC)
Operating Temperature: 0°C to 55°C
DUT Size: See figure below
Furnished Accessories:
Compensation and Measurement: Open and short
compensations are recommended before measurement.
For open compensation, do not connect the Kelvin clips to
anything. Short compensation is performed by holding a
shorting plate with the Kelvin clips. After performing
open and short compensations, the DUT is held with the
Kelvin clips.
Description P/N Qty.
Operation Note 16089-90001 1
