Extron Electronics MGP Pro Series User Guide User Manual
Page 89
MGP Pro Series • Remote Configuration and Control
83
FIG_Comm Type Selection
Figure 27.

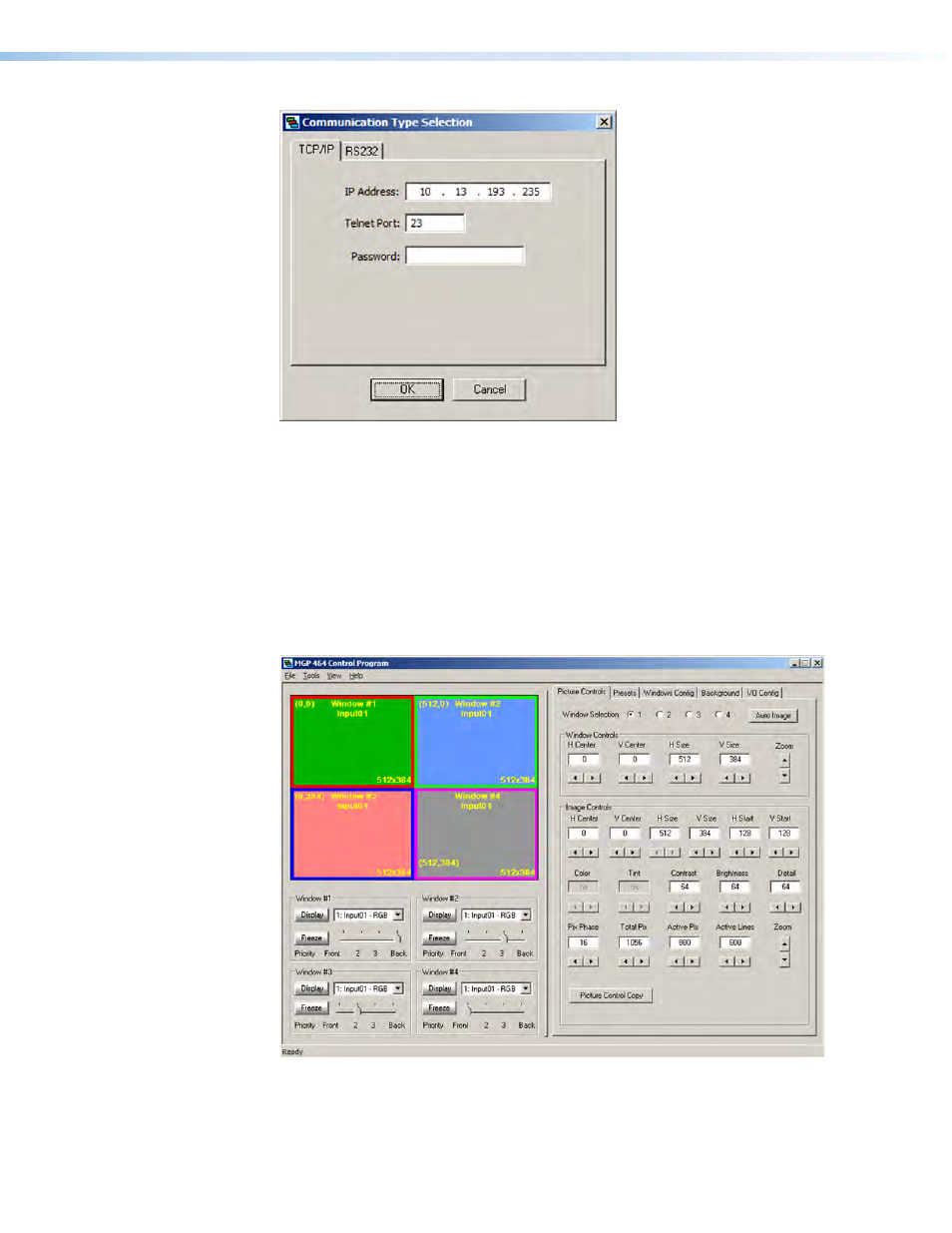

Comm Port Selection Window with TCP/IP and RS232 Tabs
•
Select the
TCP/IP
tab if you are using the LAN port. If you will be uploading
firmware, you should use this connection.
•
Select the
RS232
tab if you are using a serial ports. (The front panel port supports
only RS-232. The rear panel 9-pin serial port supports RS-232 and RS-422.)
3.
On the selected tab, enter the information for your communication type and click
OK
.
•
TCP/IP
: Enter your MGP Pro IP address, Telnet port (the default is 23), and a
password if required.
•
RS232
: Select your computer communication port from the
Port
menu, and the
baud rate from the
Speed
(baud)
menu. All other parameters are preset.
Figure 28.
MGP Series Control Program Main Window (MGP 464 Pro)
4.
For information on configuring the MGP Pro using the software, see the help file. To
access the help file, select
Contents
from the
Help
pull-down menu or press the
key.
