MGP Pro Series • Operation 32
FIG_Test patterns
4x3 4x3 16x9 16x9
Colorbars (8) X-Hatch (16 x 12) 4x4 X-Hatch Grayscale
Ramp Alt. Pixels Crop
Side-By-Side
(4 x 3 crop)
1.78 Aspect 1.85 Aspect 2.35 Aspect
Side-By-Side
(16 x 9 crop)
White Field
Quad Split
4x3
4 x3
4 x3
4 x3
PIP Images
(4 x 3)
16x9
4 x3
4 x3
4 x3
PIP Images (16 x 9)

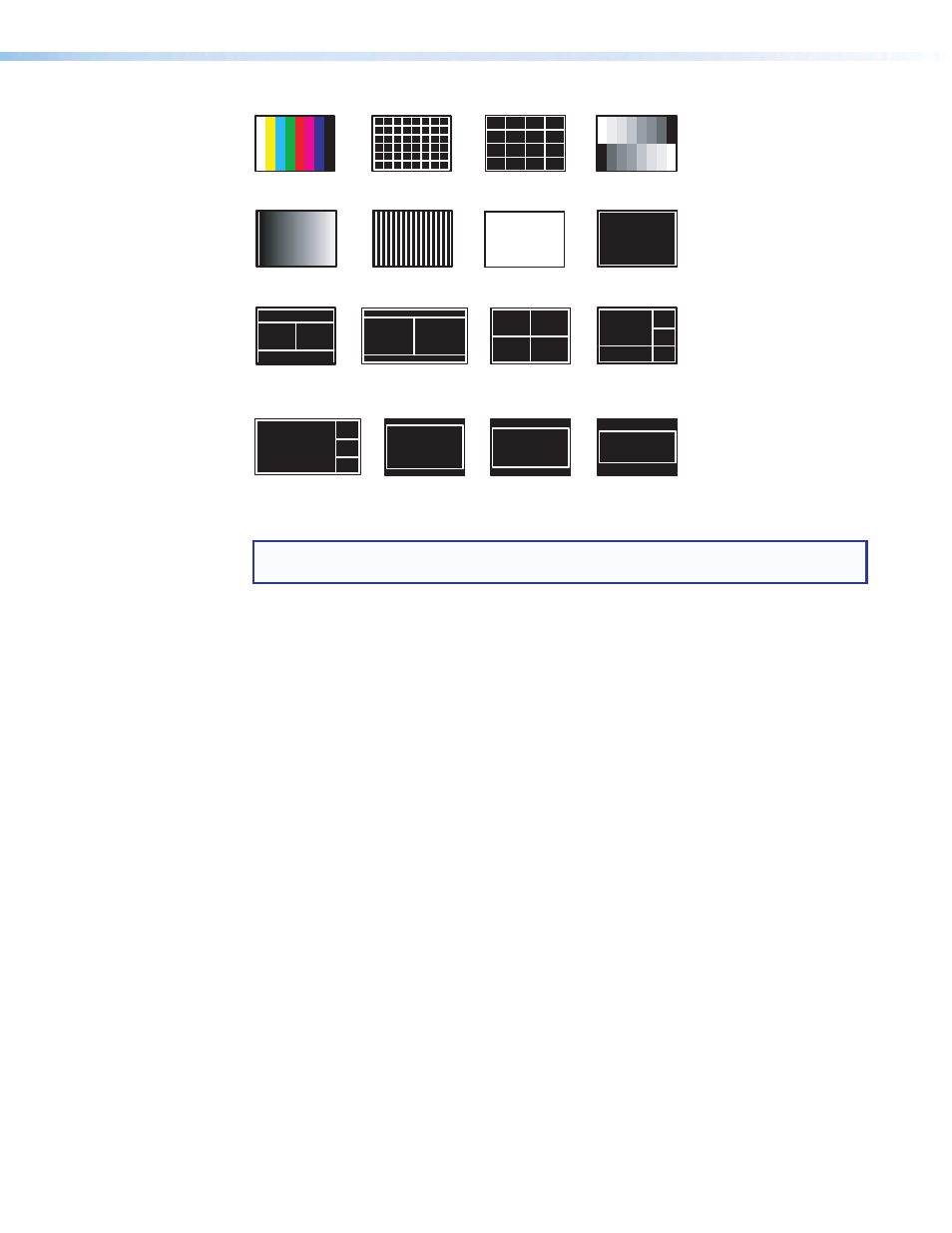

Figure 22. Test Patterns Available for the MGP Pro
NOTE: On the MGP 462 Pro models, all of the above test patterns are available except
4x4 Quad Split, 4x3 PIP Images, and 16x9 PIP images.
Some of the test patterns available from the submenu vary depending on the selected
output rate. For example, if a 4x3 output rate is selected, the 4x3 side-by-side crop and
aspect ratio patterns appear. If a 16x9 output rate is selected, the 16x9 side-by-side crop
and aspect ratio patterns appear.
Aspect Ratio submenu
Rotate either Adjust knob to select the aspect ratio of the image relative to the window in
which it is displayed. The options are:
• FILL WINDOW — Each input signal fills the entire display raster (default).
• FOLLOW INPUT — Each input signal is displayed with its native aspect ratio.
