IN1606 and IN1608 Series Scaling Presentation Switcher • Internal Web Pages 63
Configuration Pages
The configuration pages contain options for input and output configuration, EDID
management, image settings, image size and position, audio configuration, preset
management, and device settings.
Input and Output Configuration Page
Click the Input/Output Config icon on the Global Navigation Bar to open this page. It
contains panels for input configuration and output configuration.
Input Configuration panel
The Input Configuration panel consists of user configurable fields for each input. These
include input naming, signal type, aspect ratio, automatic Auto-Image, Auto Memory, HDCP
Authorized status, and Film Detect.

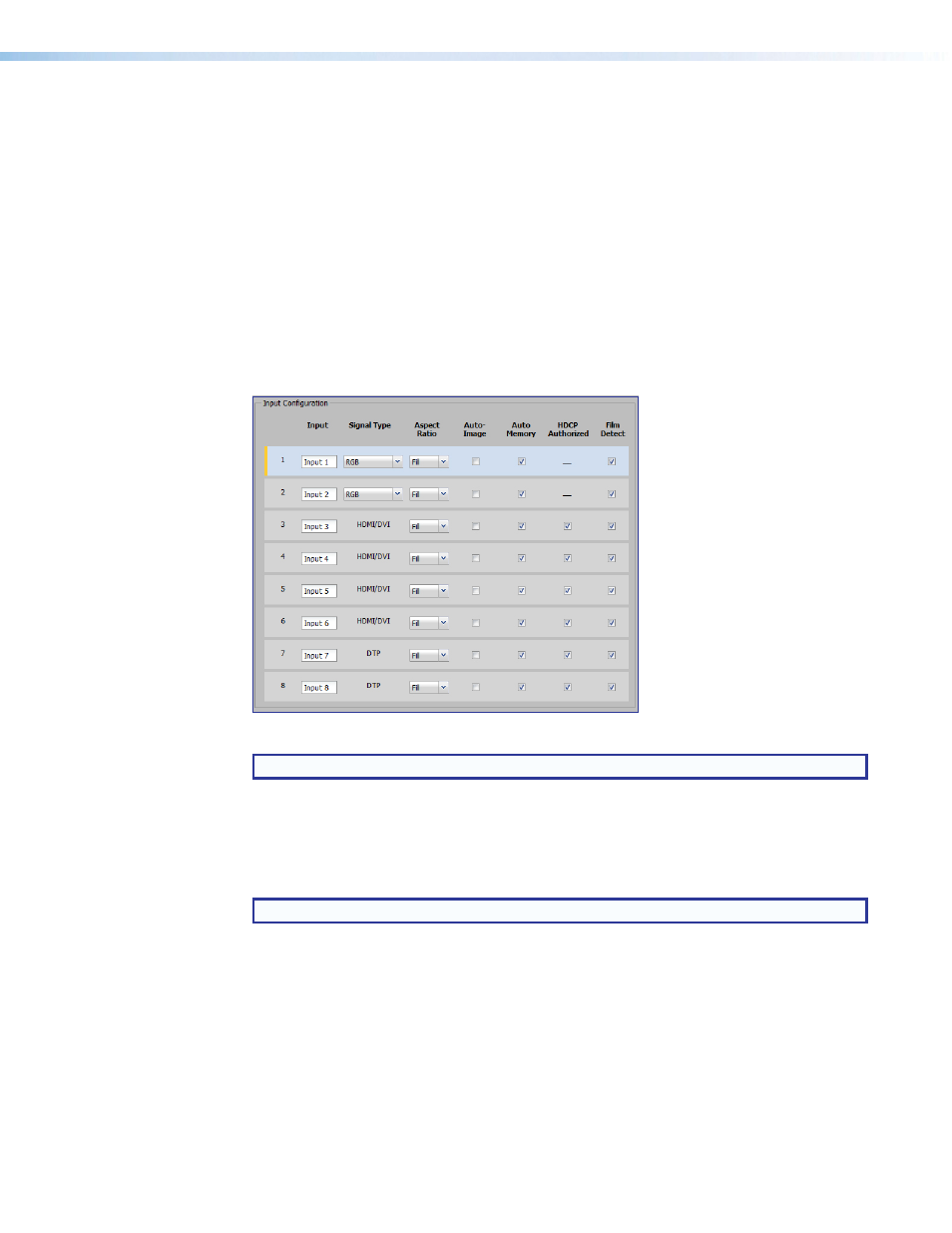

Figure 34. Input Configuration (IN1608)
NOTE: DTP inputs 7 and 8 are not available on the IN1606.
Input (renaming)
By default, the name associated with an input channel is Input . To rename an
input, click inside the desired input field and type in the desired name to identify the input.
Input names have a 16-character limit.
NOTE: Entering a single space character resets the name of the input to the default.
Signal type
From the Signal Type drop-down menu, select the signal type for inputs 1 and 2 from RGB
(default), YUV , RGBcvS , S-Video , and Composite . For all other inputs, HDMI/DVI is the only
available signal type.
Aspect ratio
From the Aspect Ratio drop-down menu, select Fill or Follow .
• Fill — Scales the input signal to fill the entire video output.
• Follow — Follows the signal aspect ratio, with respect to the current output resolution
setting. Black letter box or pillar box bars may be applied for aspect ratio compensation.
