IN1606 and IN1608 Series Scaling Presentation Switcher • SIS Configuration and Control 33
SIS Overview
Using the Command and Response Tables
The Command and Response Tables for SIS commands beginning on page 38 lists
the commands that the scaler recognizes as valid, the responses that are returned to the
host, a description of the command function or the results of executing the command, and
examples of commands in ASCII (Telnet) and URL encoded (Web).
NOTE: Upper and lower case text can be used interchangeably unless otherwise
stated.

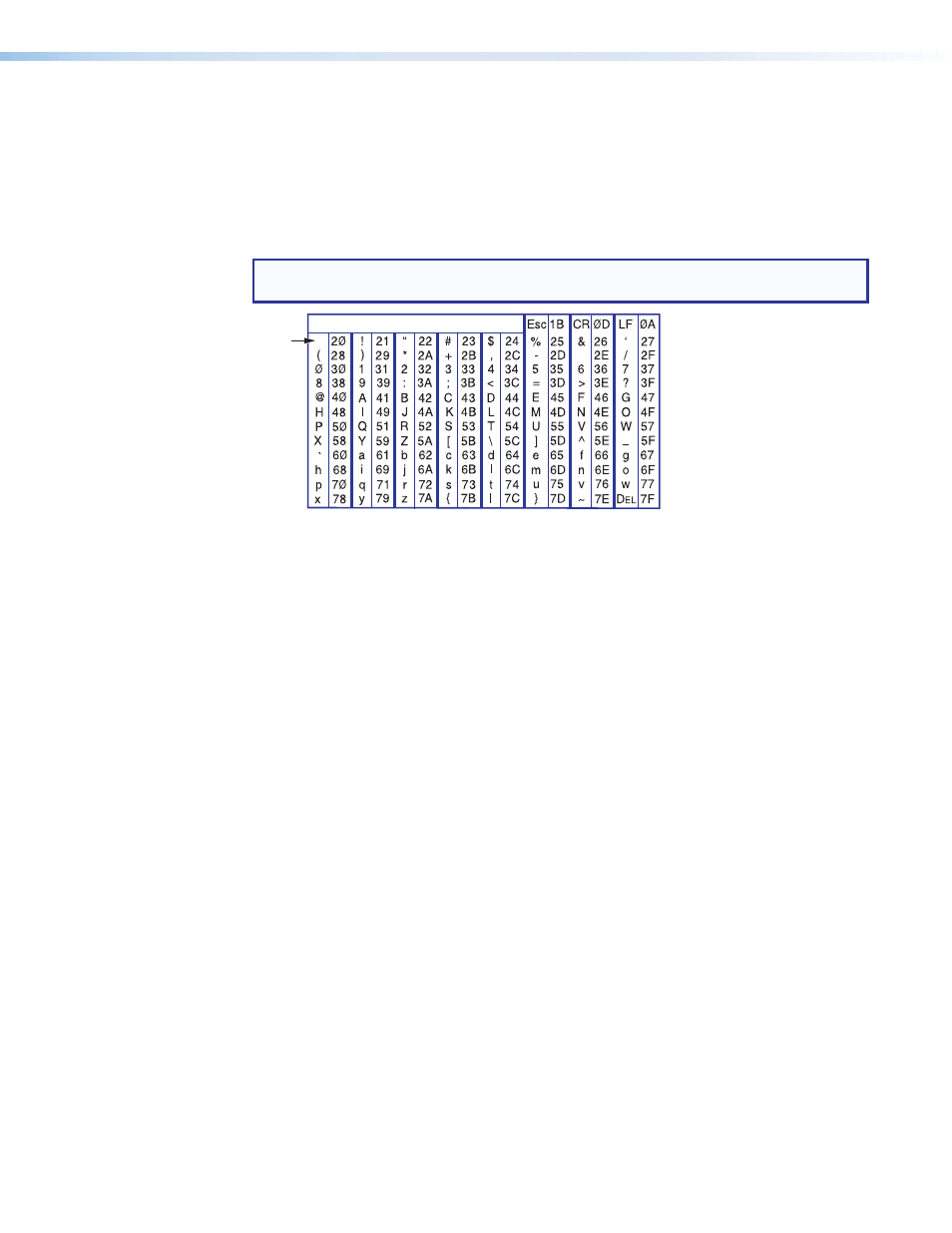

ASCII to Hex Conversion Table
•
Space
Figure 23. ASCII to Hexadecimal Character Conversion Table
Symbol Definitions
• = Space
] = Carriage return with line feed
| or
} = Carriage return with no line feed
E
or W
= Escape
14, 24, 28 = Superscripts indicate the error message displayed if the command is entered incorrectly
or with invalid parameters (see Error response references on page 32)
X! = Input selection 1-6 (IN1606)
1-8 (IN1608 models only)
X@ = Output selection 1 = HDMI A (top connector)
2 = HDMI B (bottom connector)
3 = DTP C (IN1608 models only)
X# = Input video format 1 = RGB
2 = YUV
3 = RGBcvS
4 = S-video
5 = Composite
6 = HDMI
X$ = Horizontal or vertical start 0-255 (default midpoint of 128 translates to the
default value in the input lookup tables)
X% = Pixel phase 0-63 (31 = default)
X^ = Total pixels ± 512 of the default value
X& = Active pixels ± 512 of the default value
X* = Active lines ± 256 of the default value
X( = Enable or disable 0 = off or disabled
1 = on or enabled
