Connection Details
Analog Video Wiring

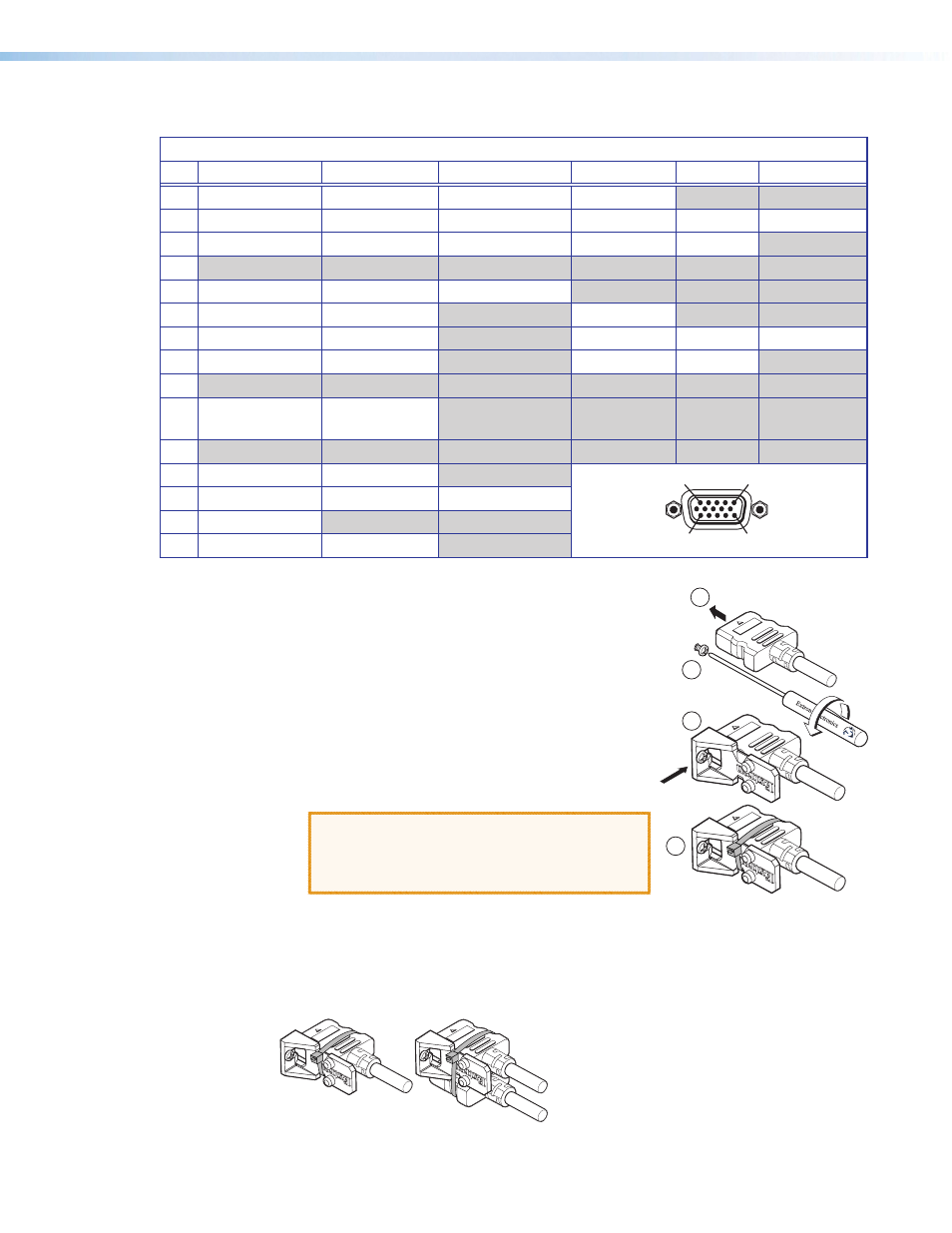

Pinout Table for 15-pin HD Connectors
Pin RGBHV RGBs RGBcvS Component S-video Composite
1 Red Red Red R-Y
2 Green Green Green Y Luma Video
3 Blue Blue Blue B-Y Chroma
4
5
H Sync Return C Sync Return Sync Return
6 Red Return Red Return R-Y Return
7 Green Return Green Return Y Return L Return Video Return
8 Blue Return Blue Return B-Y Return C Return
9
10 V Sync Return/
DDC Return
DDC Return
11
12
EDID/DDC EDID/DDC 1 5
11 15
13 H Sync C Sync Composite Video
14 V Sync
15 EDID/DDC EDID/DDC
HDMI Connections
Use an Extron LockIt Lacing Bracket to secure an HDMI
cable to each device.
1. Plug the HDMI cables into the panel connection.
2. Loosen the side HDMI connection mounting screw
from the panel enough to allow the LockIt lacing
bracket to be placed over it. The screw does not
have to be removed.
3. Place the LockIt lacing bracket on the screw and
against the HDMI connector, then tighten the screw
to secure the bracket.
ATTENTION: Do not overtighten the HDMI
connector mounting screw. The shield to
which it is fastened is very thin and can easily
be stripped.
4. Loosely place the included tie wrap around the HDMI connector and the LockIt
lacing bracket.
5. While holding the connector securely against the lacing bracket, use pliers or a
similar tool to tighten the tie wrap, then remove any excess length.
The LockIt bracket can also be used in a stacked formation, as shown below.
Side Mounted Stacked
Figure 10. LockIt Bracket Mounting Options
