EntelliGuard TU Trip Units: UL/ANSI Models DEH-4567B
Status Screens
38 ©2012 General Electric All Rights Reserved

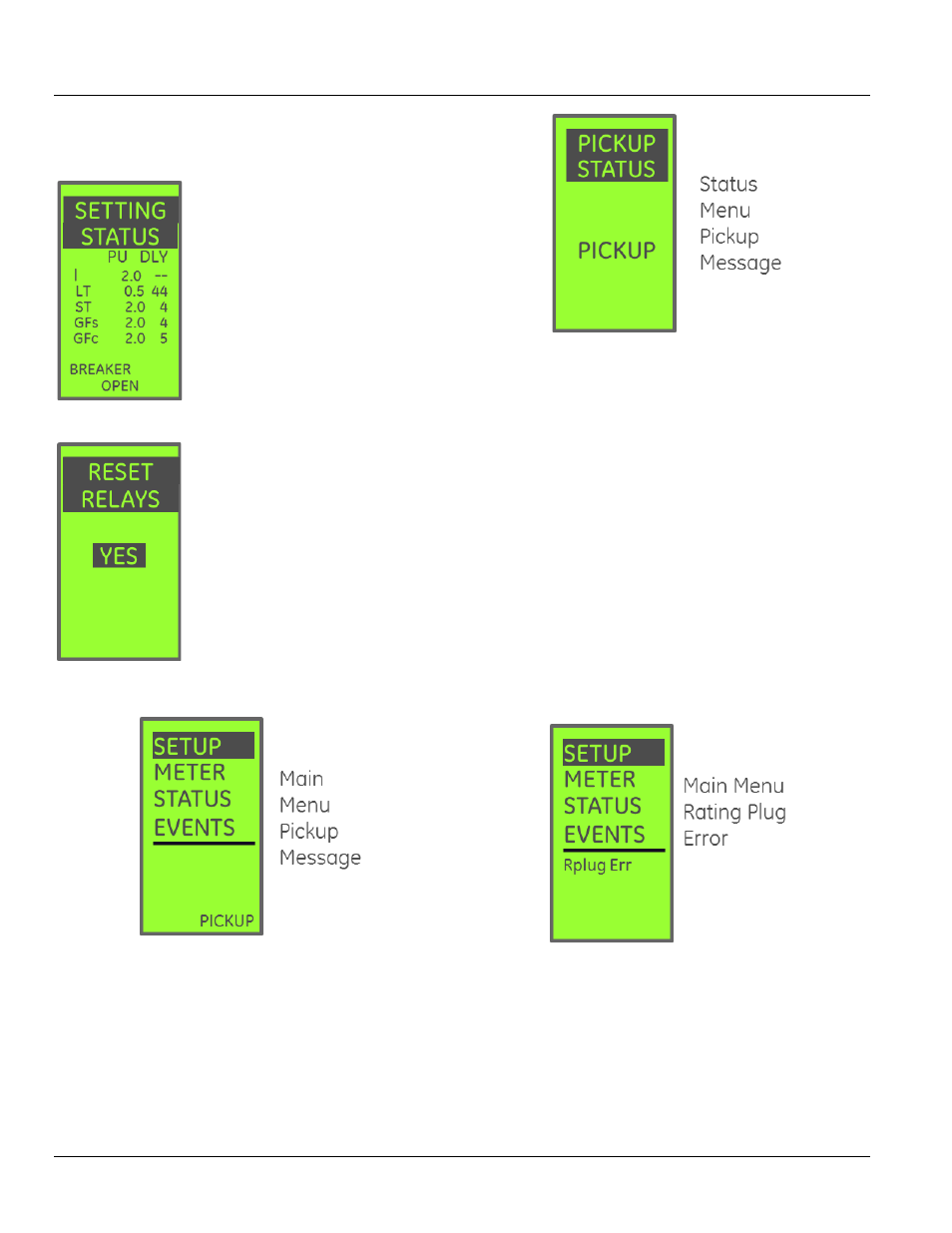

SECTION 5. STATUS SCREENS
SETTINGS STATUS SCREEN
What this shows:
A summary of all active overcurrent
protection elements. If an element is
available in the trip unit, but disabled
by setting it to OFF, it will not appear
on this list.
OUTPUT RELAY RESET
What this shows:
Pressing ENTER will unlatch any
latched output relays unless their
fault condition is still present.
PICKUP STATUS MESSAGES
Whenever one or more protection elements are “picked up”
and timing out toward tripping, a PICKUP indication will be
visible on the Home screen, and on the Pickup Status
screen.
When the trip unit is not in pickup, the word “Pickup” is not
displayed.
• When the trip unit is approaching LT pickup (above 95%
of setpoint) the word “Pickup” will be flashing.
• When the trip unit is solidly in pickup, the word “Pickup”
is constantly displayed.
• The green STATUS indicator on the trip unit also
indicates pickup status.
• When not picked up, the LED blinks twice, turns off for a
brief period, repeating.
• When in pickup, the LED blinks continuously.
RATING PLUG ERROR MESSAGES
