General Information
2 ©2012 General Electric All Rights Reserved

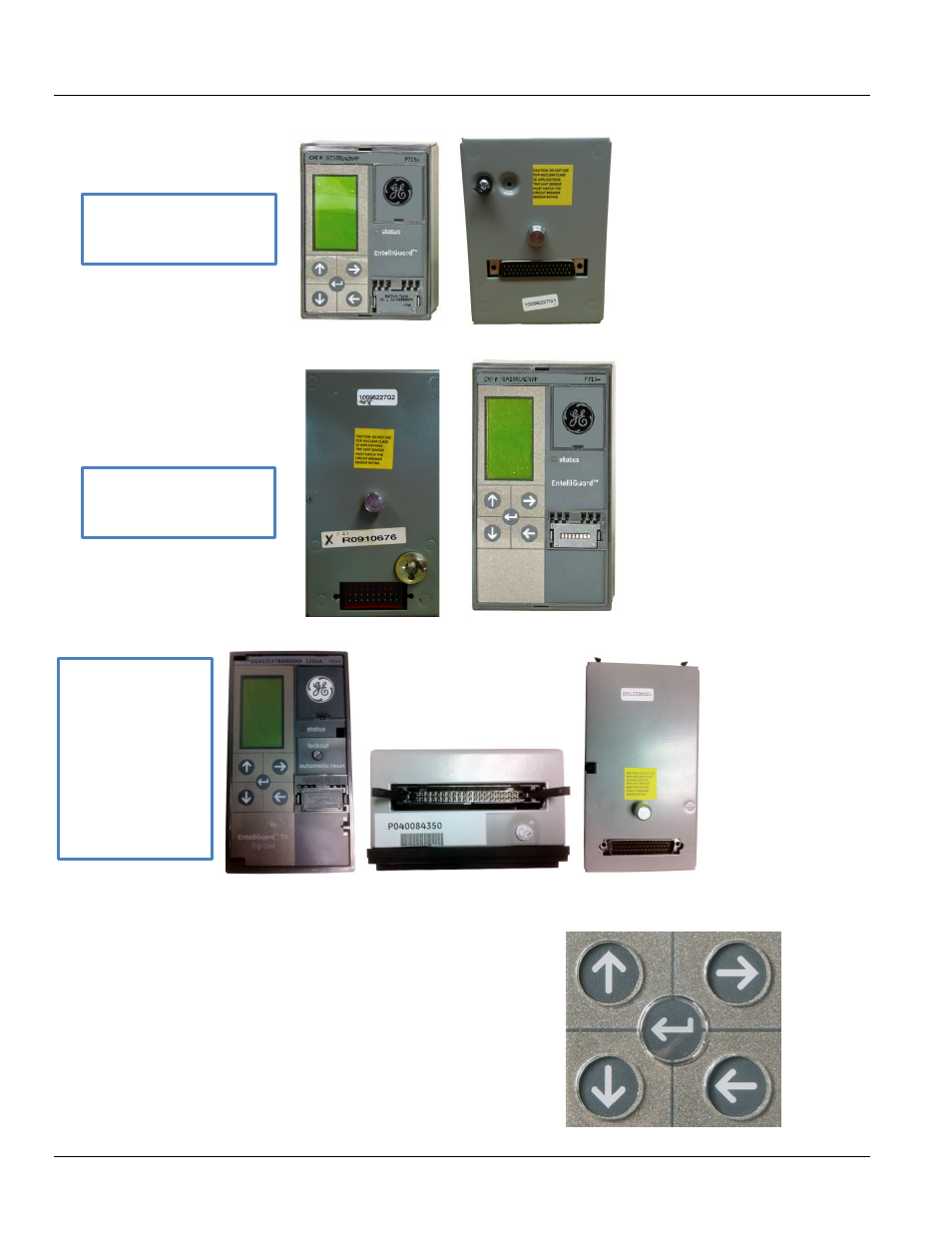

Figure 1-2: Power Break II and WavePro Trip Units
Figure 1-3: Power Break I, AK, AKR, Conversion Kit Trip Units
Figure 1-4: EntelliGuard G Trip Units
See Appendix E: GTU Pin Out Diagrams for the pin out
diagrams for each trip unit type.
MENU ACCESS
The trip unit has five function keys as shown in Figure 1-5.
All SETUP, STATUS, METER and EVENTS information is
accessed through these five keys:
• UP: Scroll up or increment value
• DOWN: Scroll down or decrement value
• RIGHT: Next function or next page
• LEFT: Previous function or previous page
• ENTER: Save or set into memory
Figure 1-5: Trip Unit Keypad and Functions
Single 50 pin connector
on the back, firmware:
v08.00.05
Single 36 pin connector
on the back, firmware:
v08.00.05
Single 50 pin
connector on the
back, 40 pin
connector on the
top, firmware:
v08.00.06, or
v08.00.21
depending on the
underlying
hardware
