DEH-4567B
EntelliGuard TU Trip Units: UL/ANSI Models
Setting up the Trip Unit
©2012 General Electric All Rights Reserved
35
PASSWORD SETUP
Sets the security password for the trip unit.

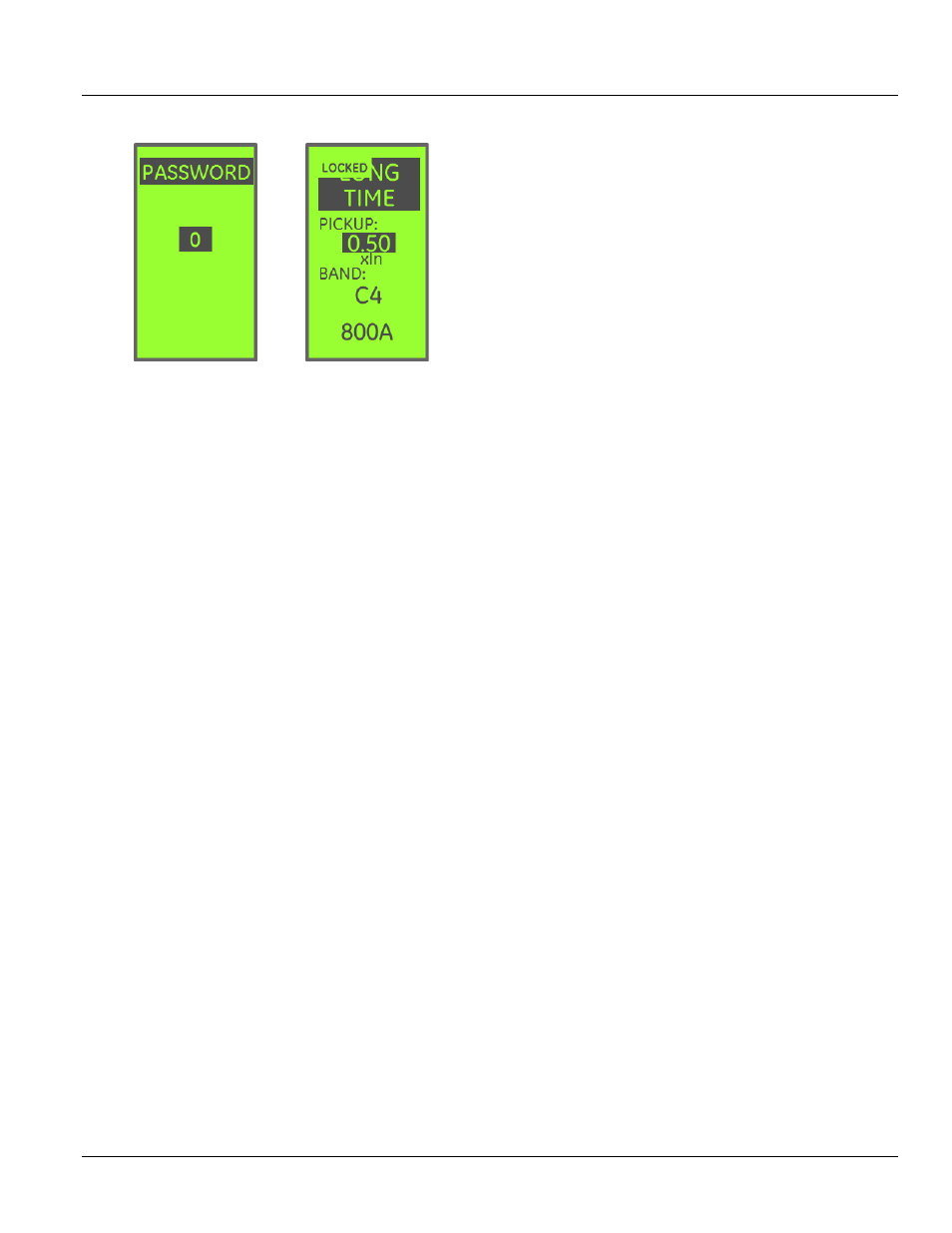

Setting this to a value of 16 LOCKS the trip unit. Attempts to
modify settings from the keypad will display the LOCKED
message shown to the right.
To UNLOCK the trip unit, change the PASSWORD to 19.
The other available values do not result in any action.
What this shows:
Lock Example on the Long Time configuration screen
