Web-Based Management
6.18.1 Port-based VLAN
A port-based VLAN basically consists of its members—ports, which means the VLAN is
created by grouping selected ports. This method provides the convenience for users to
configure a simple VLAN easily without complicated steps. Packets can go among only
members of the same VLAN group. Note all unselected ports are treated as belonging to
another single VLAN. If port-based VLAN is enabled, the VLAN-tagging is ignored. The
port-based VLAN function allows the user to create separate VLANs to limit unnecessary
packet flooding; however, for the purpose of sharing resources, a single port called a
common port can belongs to different VLANs, which all the member devices (ports) in
different VLANs have the permission to access the common port while they still cannot
communicate with ports in other VLANs.

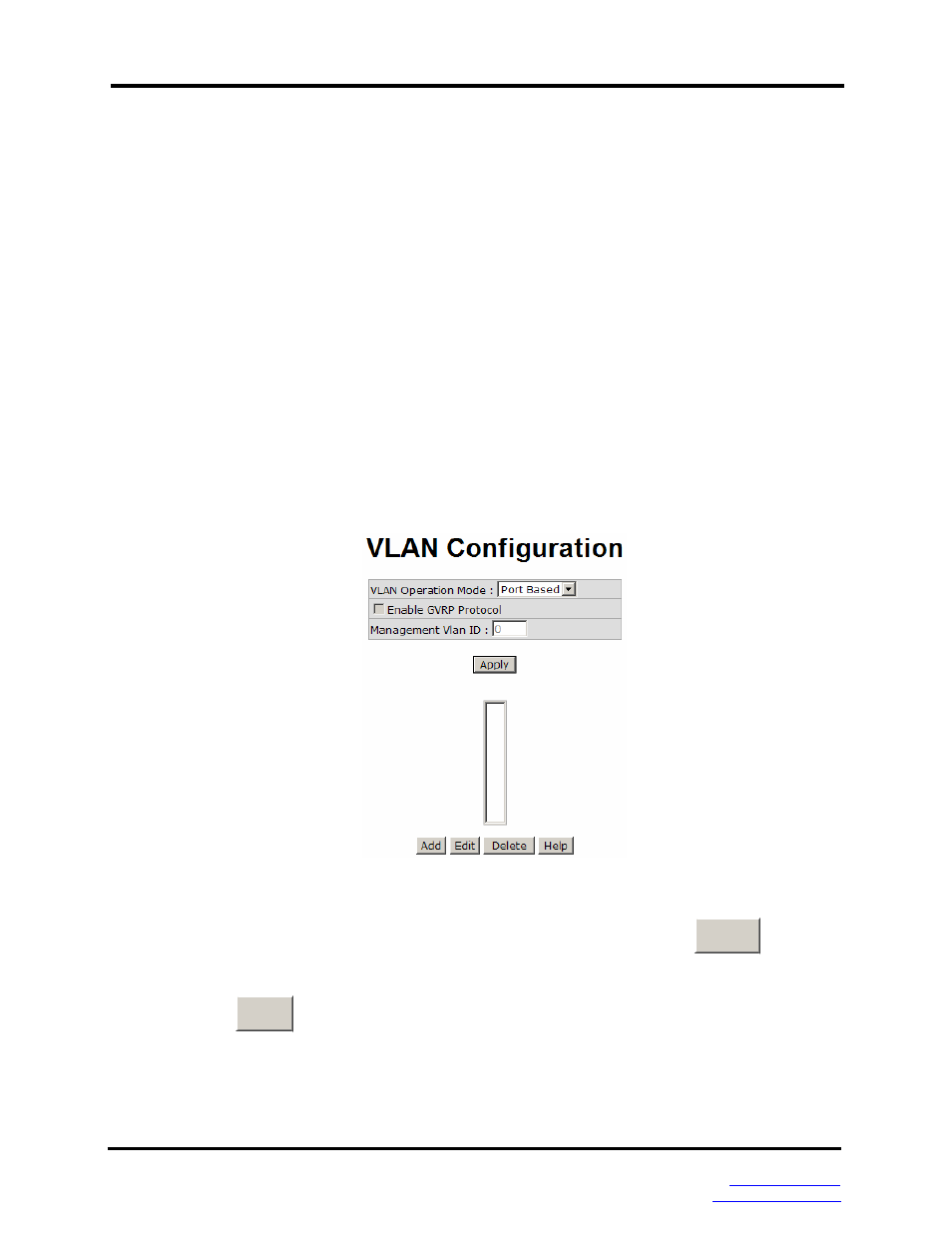

VLAN – Port Based interface
Pull down the selection item and focus on Port Based then press
Apply
to set the
VLAN Operation Mode in Port Based mode.
Click
Add
to add a new VLAN group (The maximum VLAN groups are up to 64).
73
Manual Documentation Number EIRP610-2SFP-T
– 0912m
