Console Management
Chapter 5 Console Management
5.1 Connecting to the Console Port
A DB9 to RJ-45 cable is supplied for Console port configuration. Attach the DB9 end to
your RS-232 PC terminal port and the RJ-45 end to the console port of the switch. The
connected terminal or PC must support a terminal emulation program.

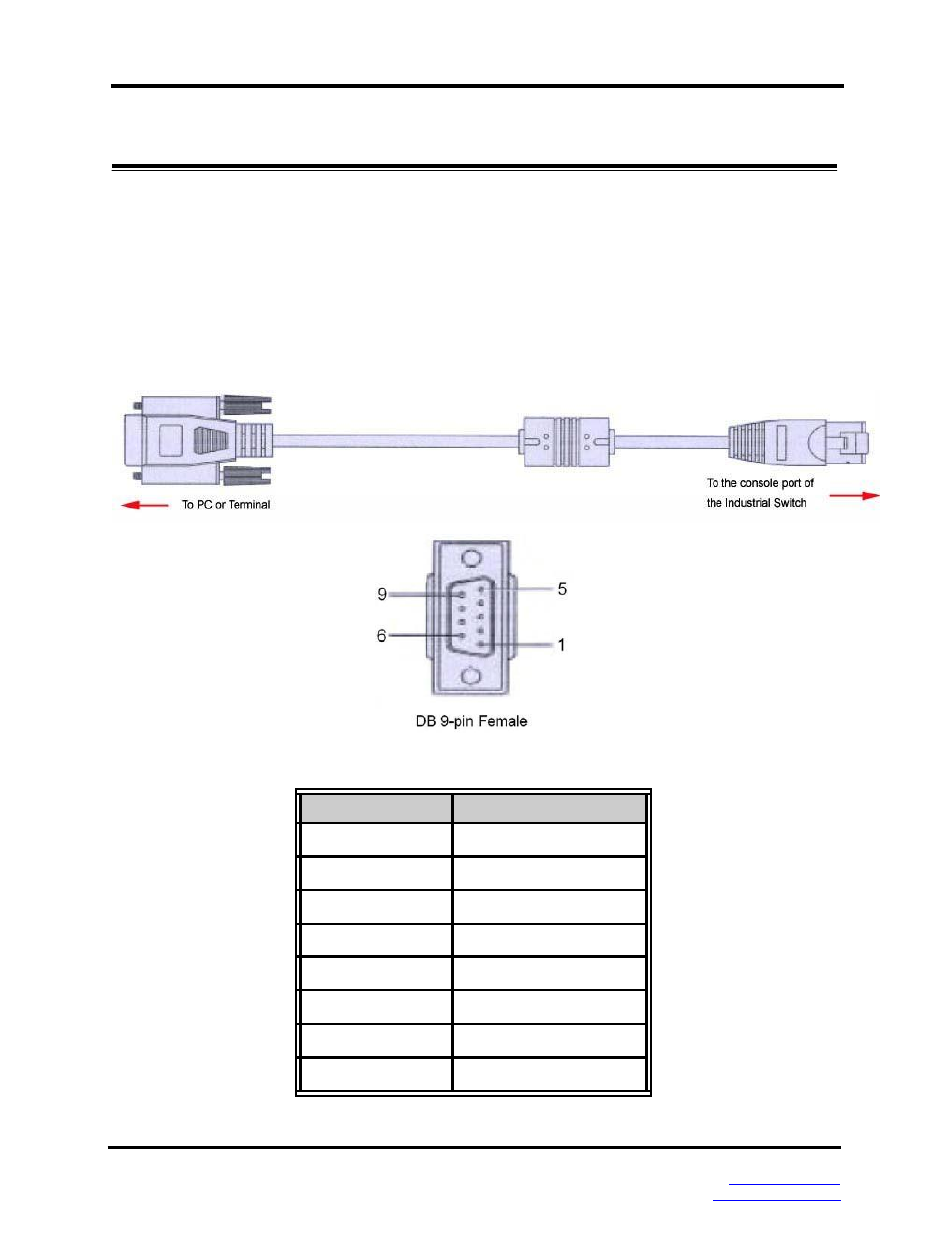

5.2 Pin Assignment
DB9 Connector
RJ-45 Connector
NC 1 Orange/White
2 2 Orange
3 3 Green/White
NC 4 Blue
5 5 Blue/White
NC 6 Green
NC 7 Brown/White
NC 8 Brown
