Hardware Installation

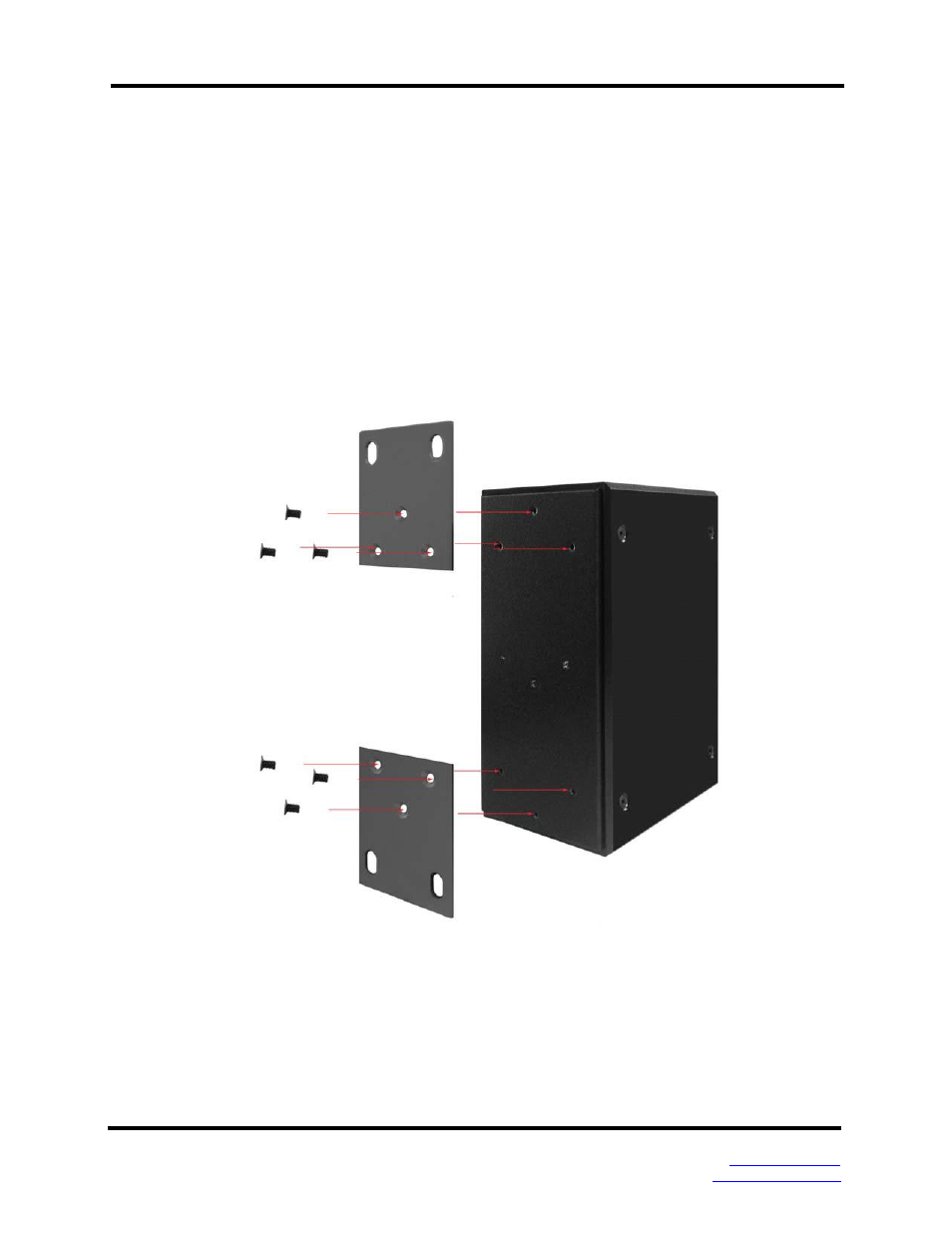

3.3 Wall or Panel Mount Plate Mounting
Follow the steps below to mount the switch with wall mount plate.
1. Remove the DIN rail clip from the switch; loosen the screws to remove the DIN rail clip.
2. Place the wall mount plate on the rear panel of the switch.
3. Use the screws to screw the wall mount plate onto the switch.
4. Use the hook holes at the corners of the wall mount plate to hang the switch on the wall.
5. To remove the wall mount plate, reverse the above steps.
15 Manual Documentation Number EIRP610-2SFP-T – 0912m
