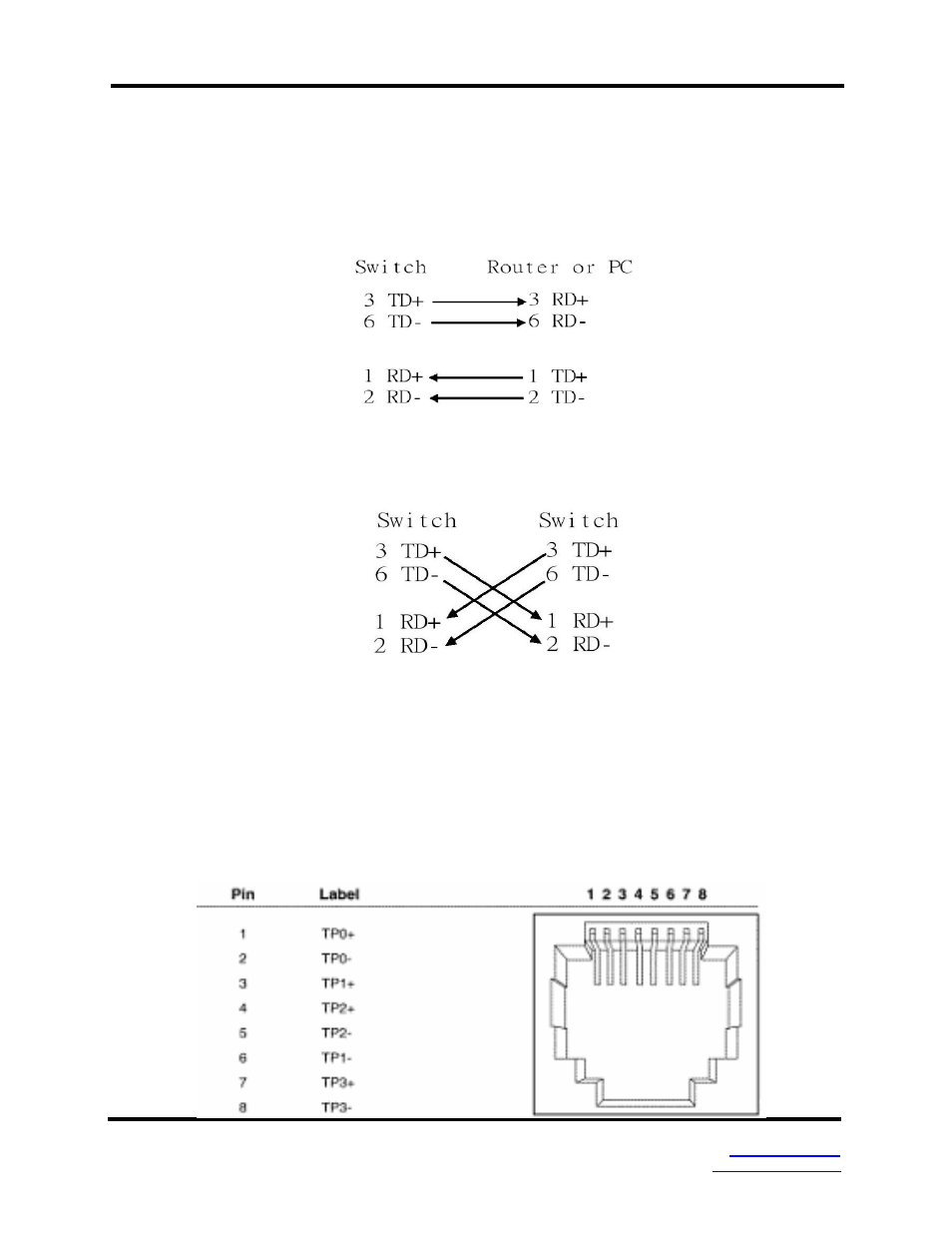

RJ-45 Pin Assignment

 10/100Base-TX Cable Schematic

The following two figures show the 10/100Base-TX cable schematic.

Straight-through cable schematic

Cross over cable schematic

 10/100/1000Base-TX Pin outs

The following figure shows the 10/100/1000 Ethernet RJ-45 pin outs.

114

Manual Documentation Number EIRP610-2SFP-T

– 0912m
